Front Fender: Service and Repair

FRONT FENDER PANEL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Windshield wiper arm and blade
2. Side cowl grille
3. Front over fender
4. Front bumper
5. Front combination lights
6. Sail garnish

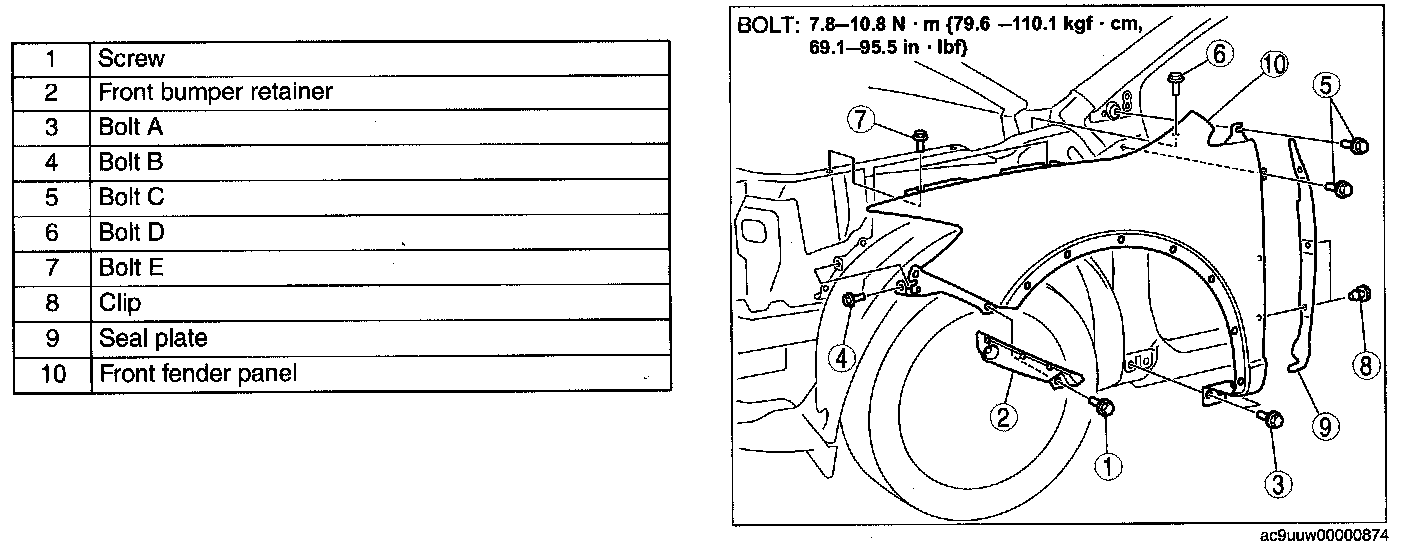

3. Remove in the order indicated in the table.






4. Install in the reverse order of removal.
