Camber Adjustment

CAUTION:

NOTE:

The camber and caster change largely if the front cam is adjusted due to the suspension construction. If the rear cam is adjusted, the caster largely, however, the camber barely changes. Therefore, adjust the camber (front cam) and then the caster (rear cam) to adjust the alignment efficiently.

Loosen the fixing nut of the adjusting cam bolt (front lower arm front side).

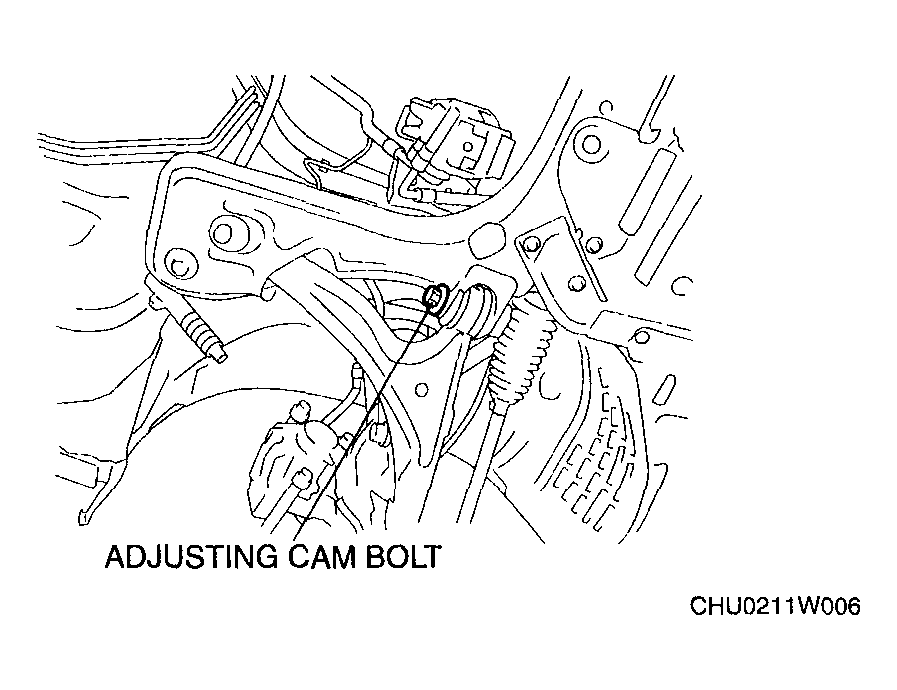

Fig 1: Loosening Adjusting Cam Bolt
Courtesy of MAZDA MOTORS CORP.

Rotate the adjusting cam bolt in either direction to adjust the camber.

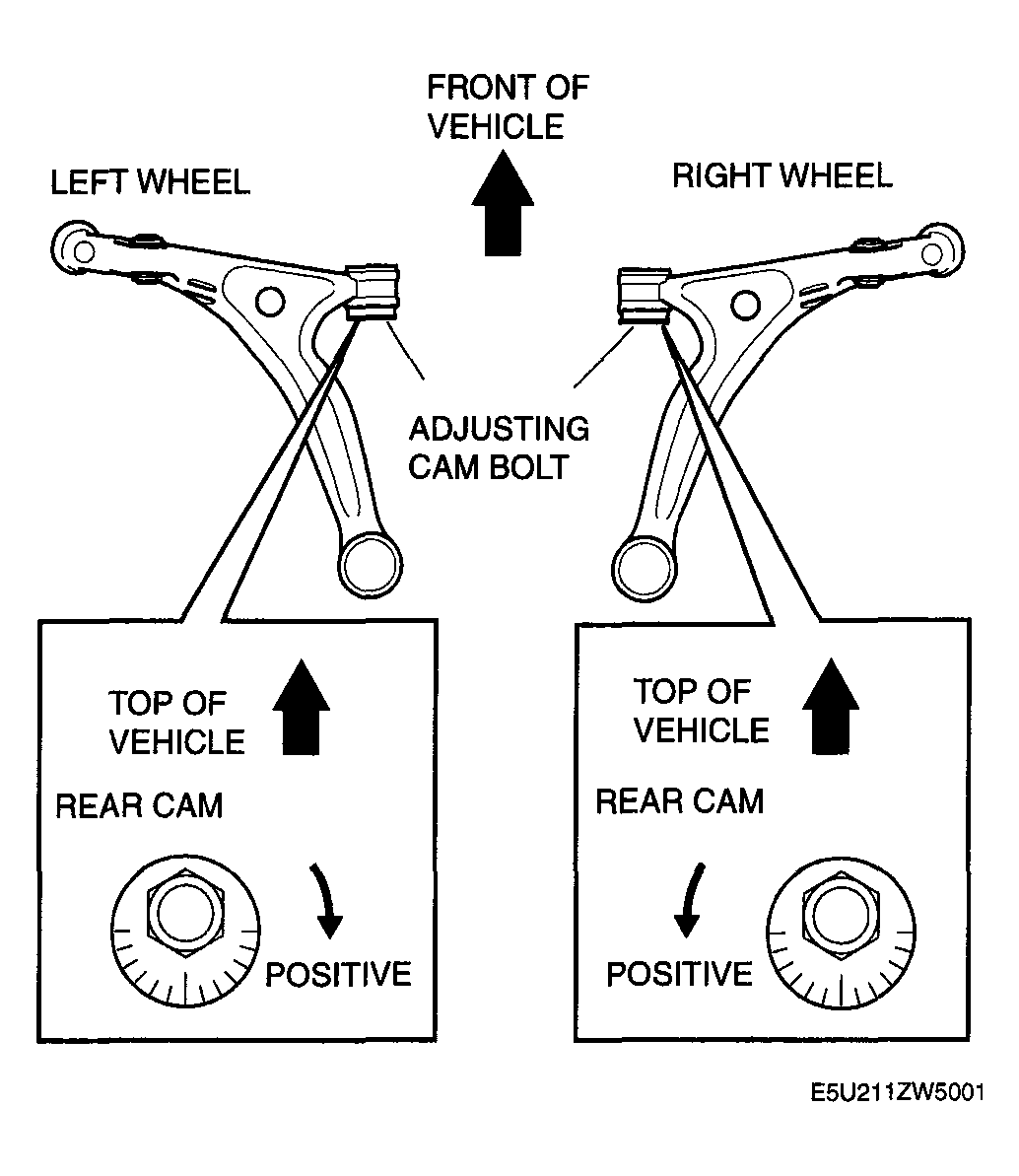

Fig 2: Rotating Adjusting Cam Bolt In Either Direction To Adjust Camber

Courtesy of MAZDA MOTORS CORP.

STANDARD SUSPENSION SPECIFICATION

Vehicle height⁽¹⁾

Camber

367-376 {14.4-14.8}

-0°33'+/-1°

377-386 {14.9-15.1}

-0°13'+/-1°

387-396 {15.2-15.5}

0°04'+/-1°

397-406 {15.6-15.9}

0°20'+/-1°

407-16 {16.0-16.3}

0°33'+/-1°

⁽¹⁾	From the end of the front fender to the center of the wheel (mm {in})

SPORT SUSPENSION SPECIFICATION

Vehicle height⁽¹⁾

Camber

361-370 {14.2-14.5}

-0°45'+/-1°

371-380 {14.6-14.9}

-0°25'+/-1°

381-390 {15.0-15.3}

-0°06'+/-1°

391-00 {15.4-15.7}

0°11'+/-1°

401-410(15.8-16.1}

0°26'+/-1°

⁽¹⁾	From the end of the front fender to the center of the wheel (mm {in})

CAMBER CAM BOLT ADJUSTMENT ROTATION

	Left wheel	Right wheel
Positive direction	Clockwise	Counterclockwise
Negative direction	Counterclockwise	Clockwise

NOTE:

Refer to the figure for the adjusting angle per one graduation.

Fig 3: Adjusting Angle Per One Graduation
Courtesy of MAZDA MOTORS CORP.

Tighten the nut.
Tightening torque

117.7-137.3 N.m {12.1-14.0 kgf.m, 86.9- 101.2ft.lbf}
Adjust the toe-in.
