Without Advanced Keyless System

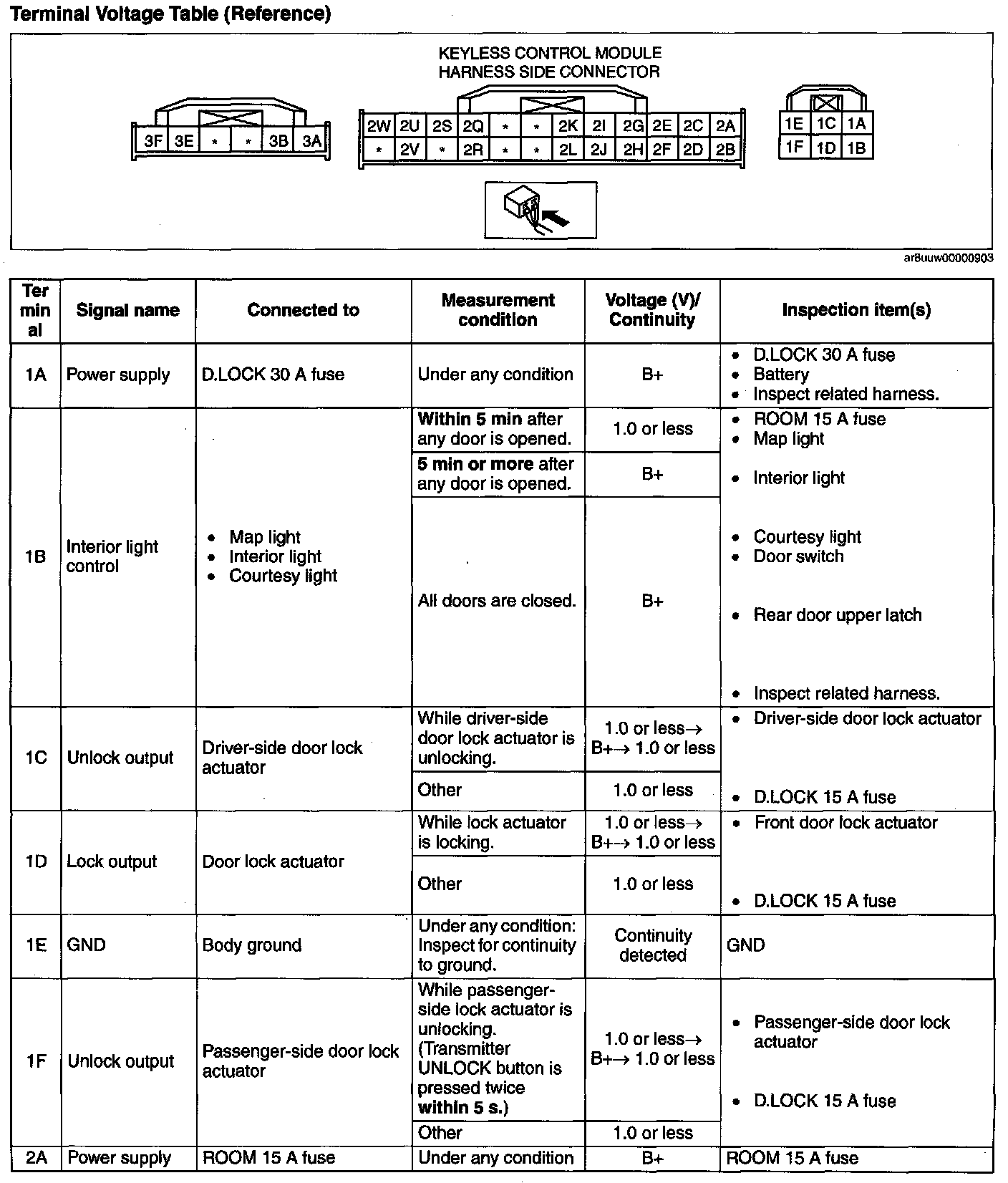

Terminal Voltage Table (Reference) (Part-1):

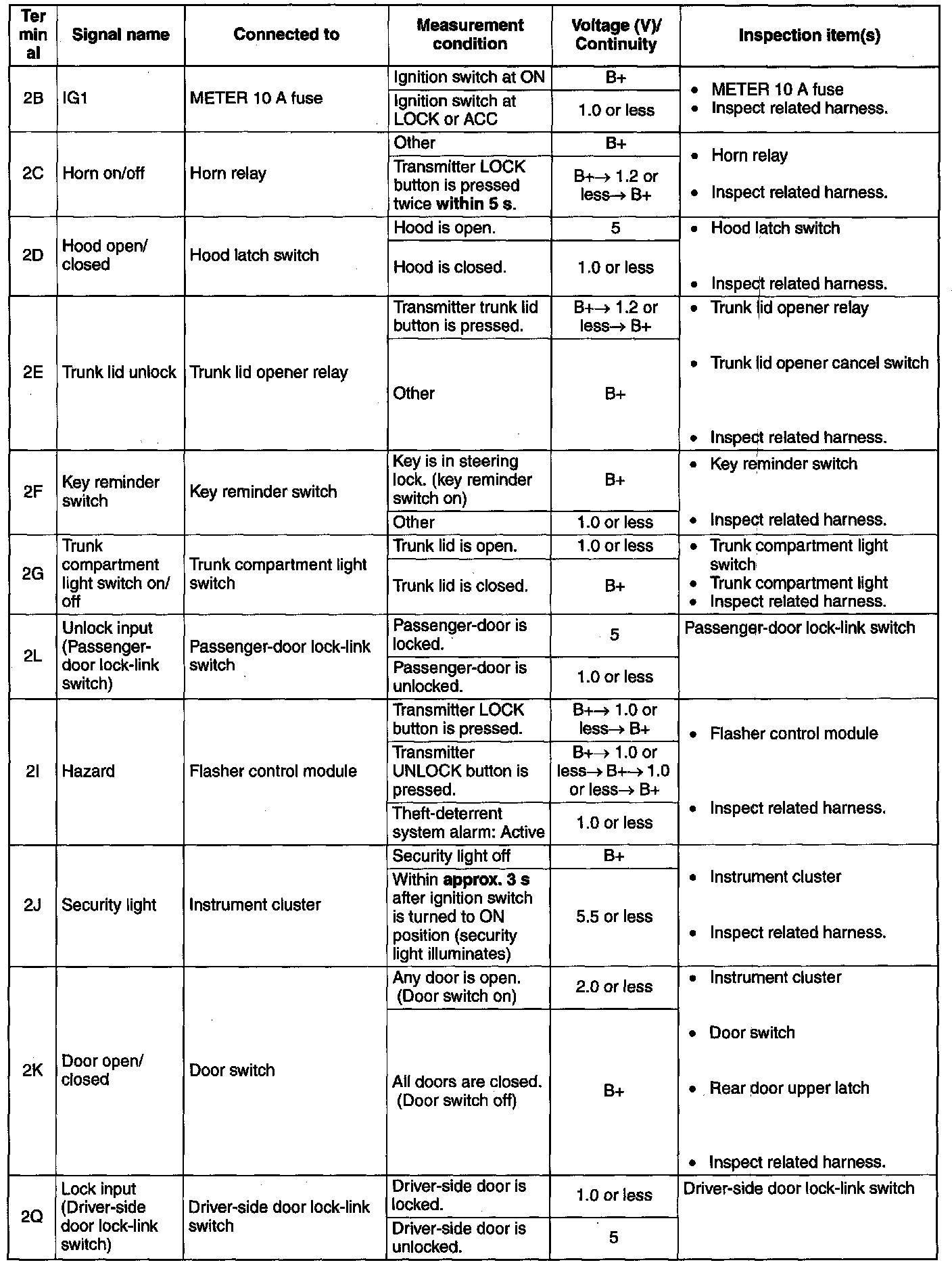

Terminal Voltage Table (Reference) (Part-2):

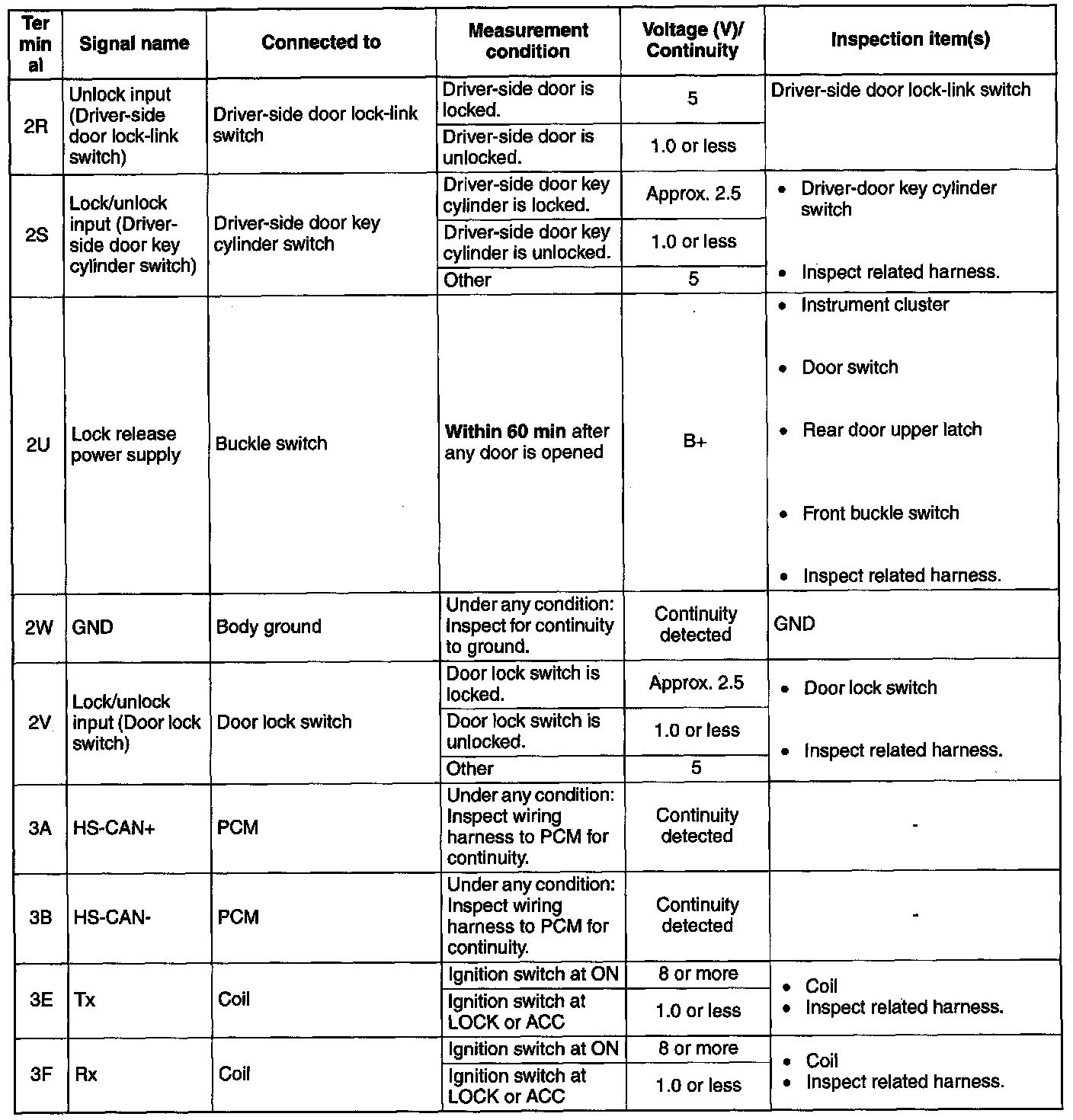

Terminal Voltage Table (Reference) (Part-3):
