Power Window Main Switch Inspection

POWER WINDOW MAIN SWITCH INSPECTION

1. When inspecting the passenger's side and the rear, turn the power-cut switch to UNLOCK.

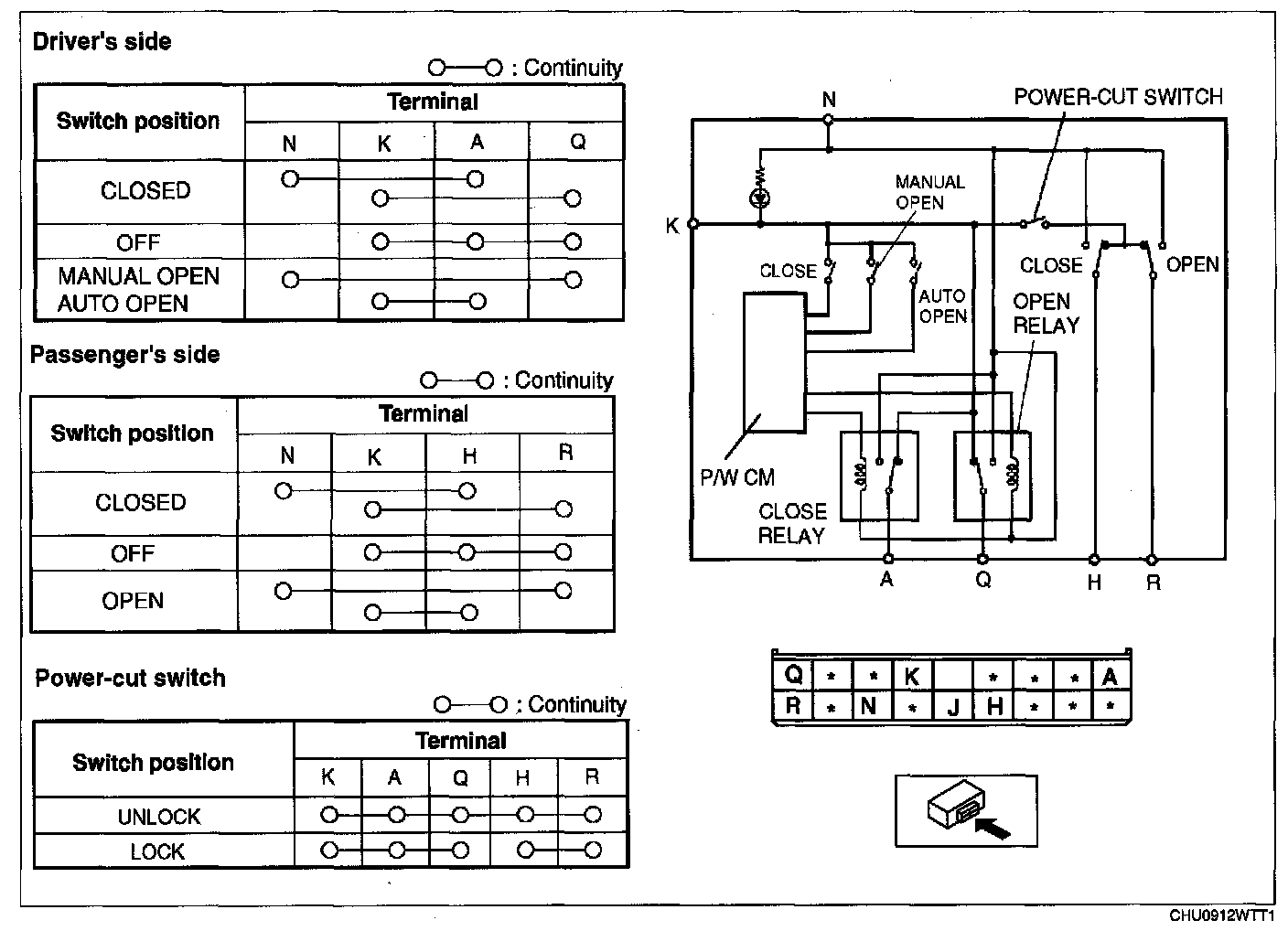

2. Inspect for continuity between the power window main switch terminals.
- If not as specified, replace the power window main switch.

3. Connect battery positive voltage to terminal N and ground to the terminal K. Verify that continuity exists.
- If not as specified, replace the power window main switch.
