Lower End Components Exploded View



-
LOWER END COMPONENTS EXPLODED VIEW - HYBRID

Crankshaft Pulley and Crankshaft Front Oil Seal

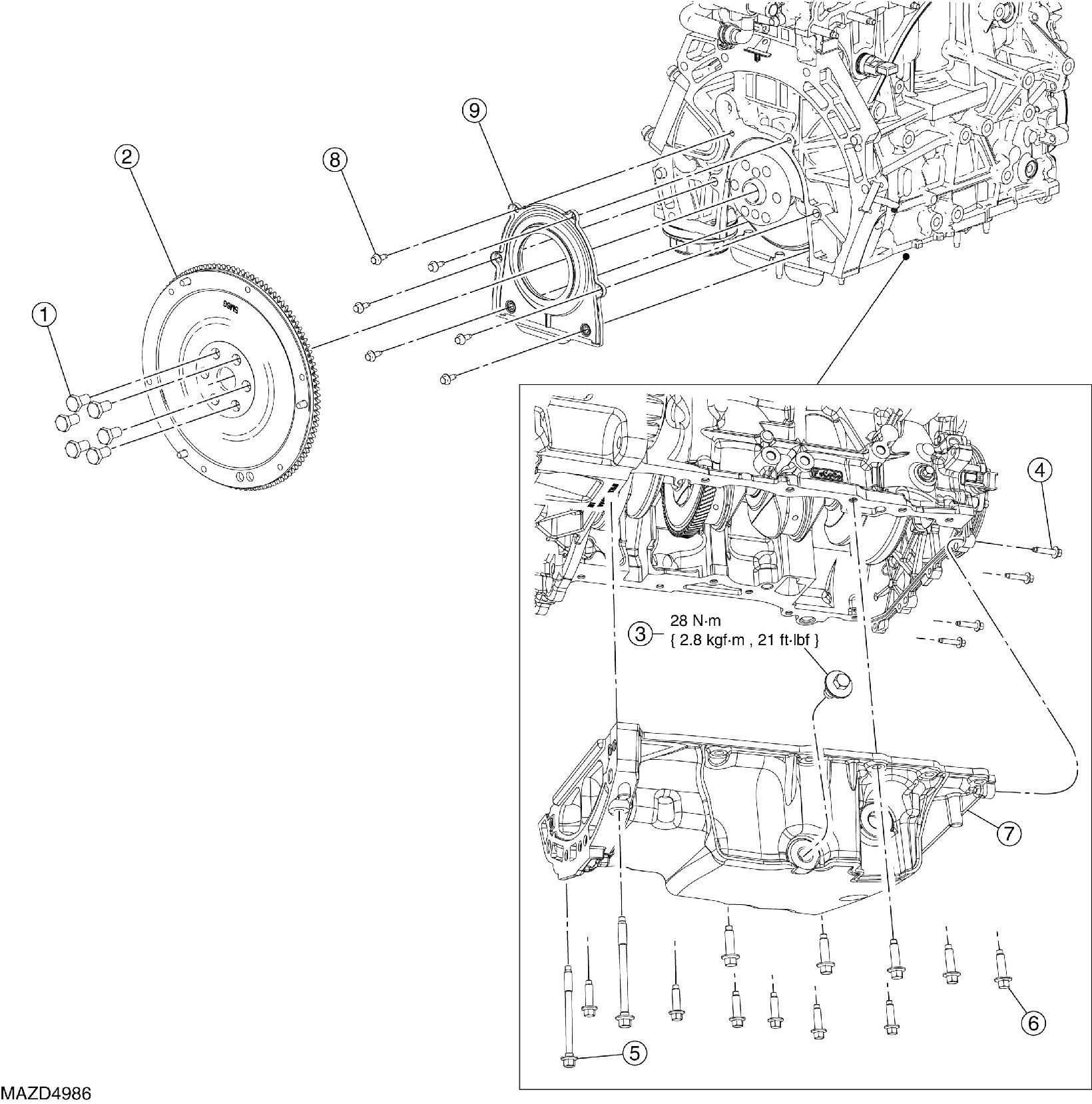

Flywheel and Crankshaft Rear Oil Seal (View 1 of 2)










Flywheel and Crankshaft Rear Oil Seal (View 2 of 2)










1. For additional information, see the procedures.
