Cowl: Service and Repair

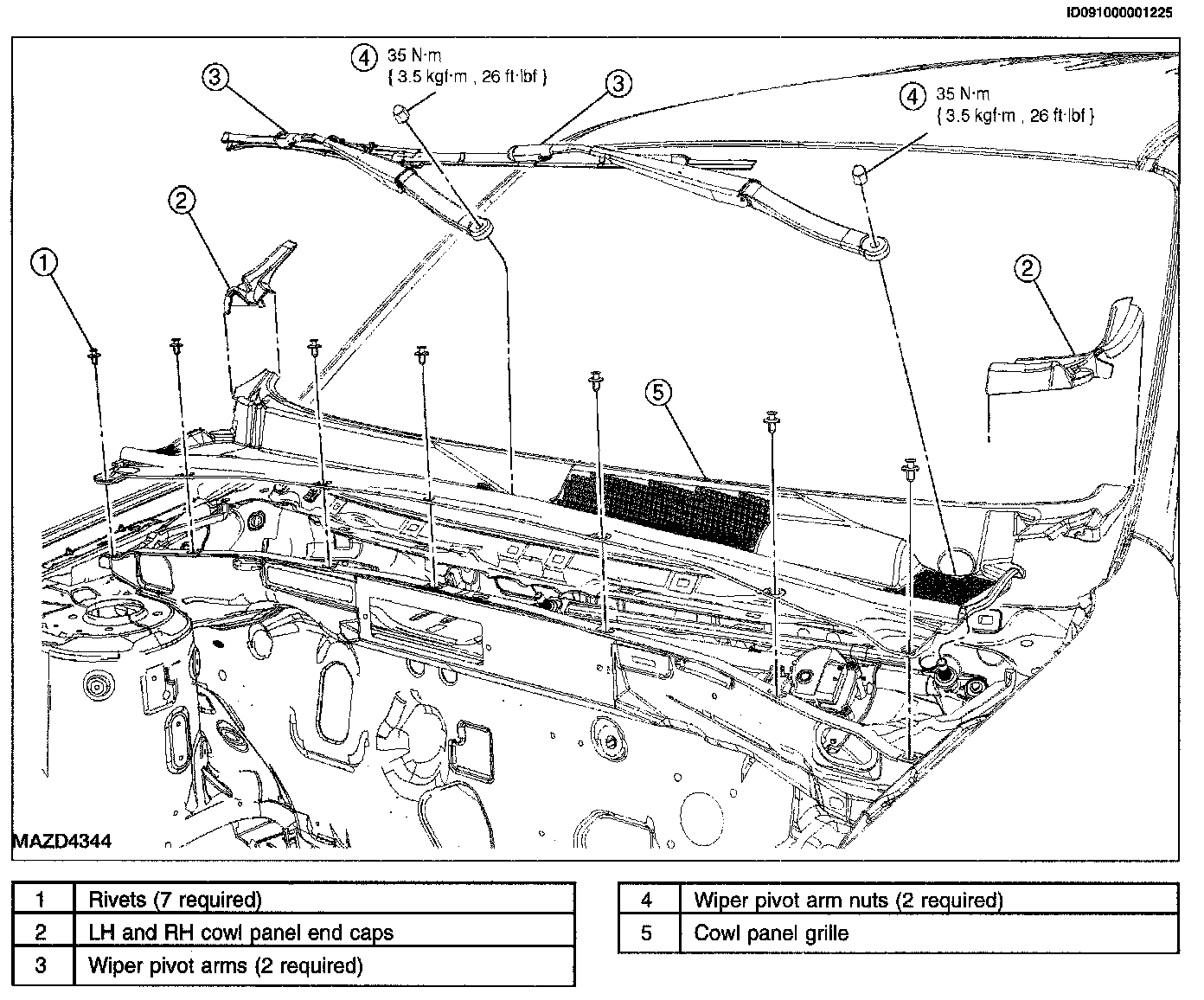

COWL PANEL GRILLE REMOVAL/INSTALLATION






1. Remove the 2 wiper pivot arms nuts.
- To install, tighten to 35 N.m {3.5 kgf.m, 26 ft.lbf}.

2. Remove the LH and RH wiper pivot arms.
3. Remove the LH and RH cowl end cap pushpin retainers.
4. Remove the cowl end caps.
5. Release the cowl panel grille from the retaining clips and remove the cowl panel grille.
6. To install, reverse the removal procedure.
- Adjust the wiper pivot arms.
