Symptom Related Diagnostic Procedures

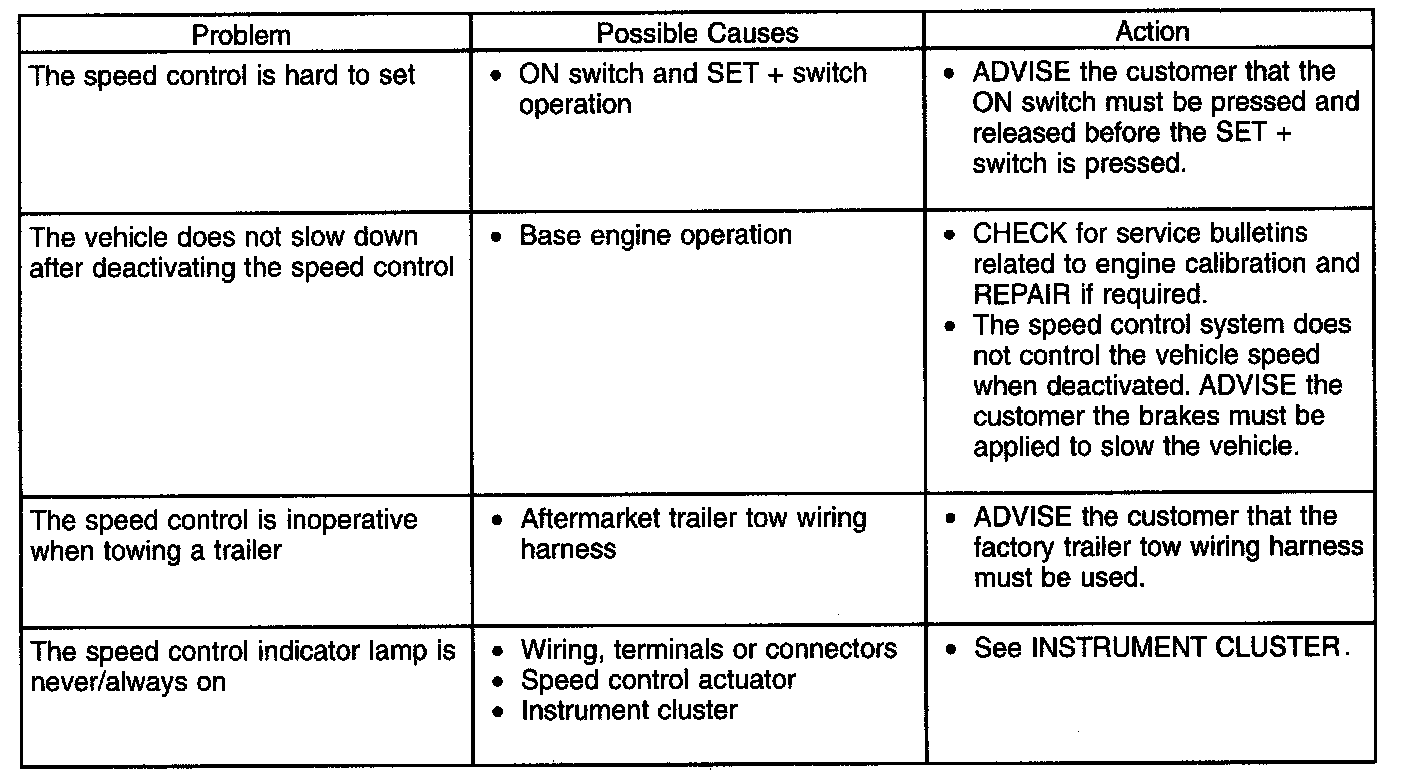

Symptom Troubleshooting Chart-Speed Control (Part 1):

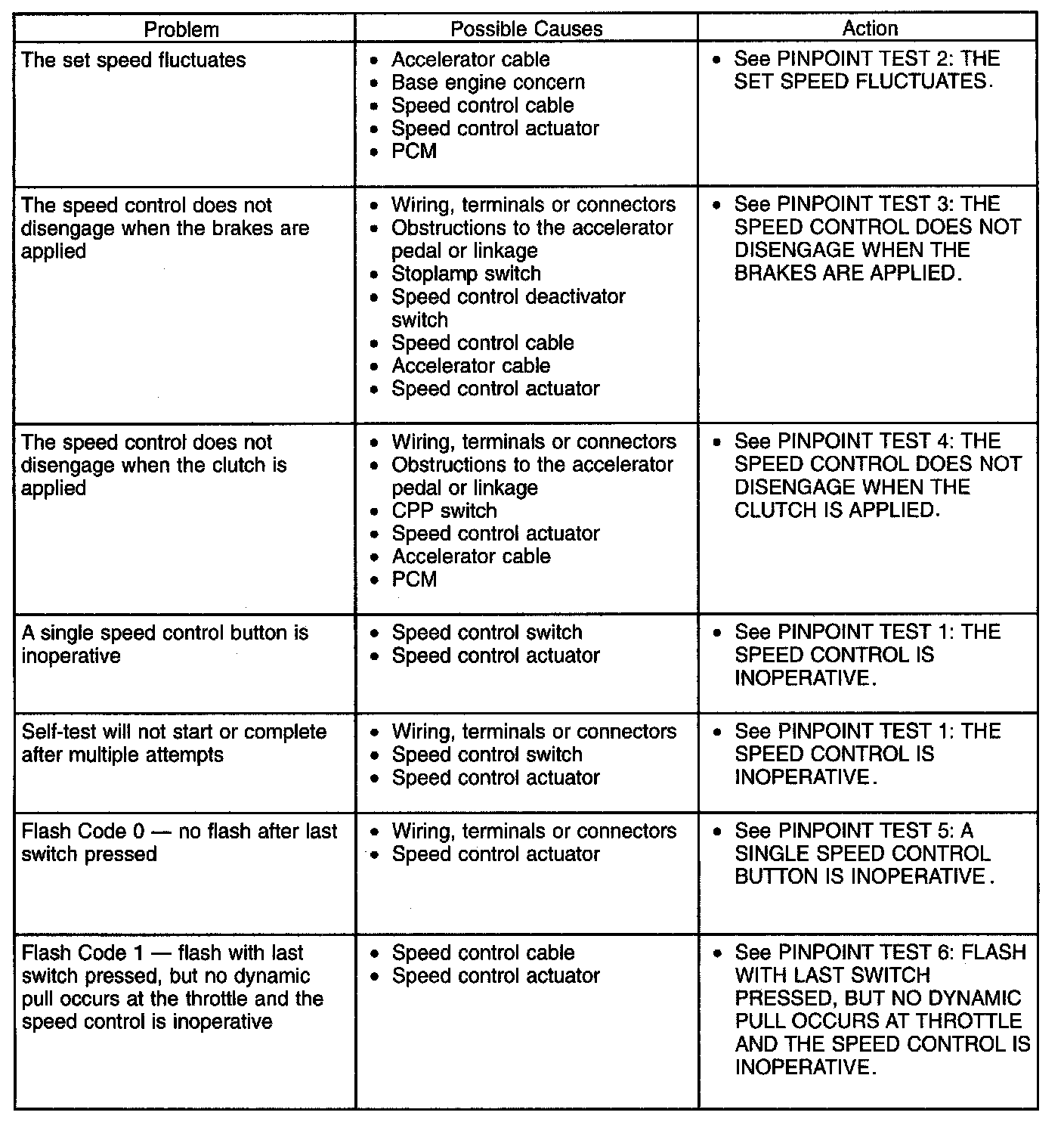

Symptom Troubleshooting Chart-Speed Control (Part 2):

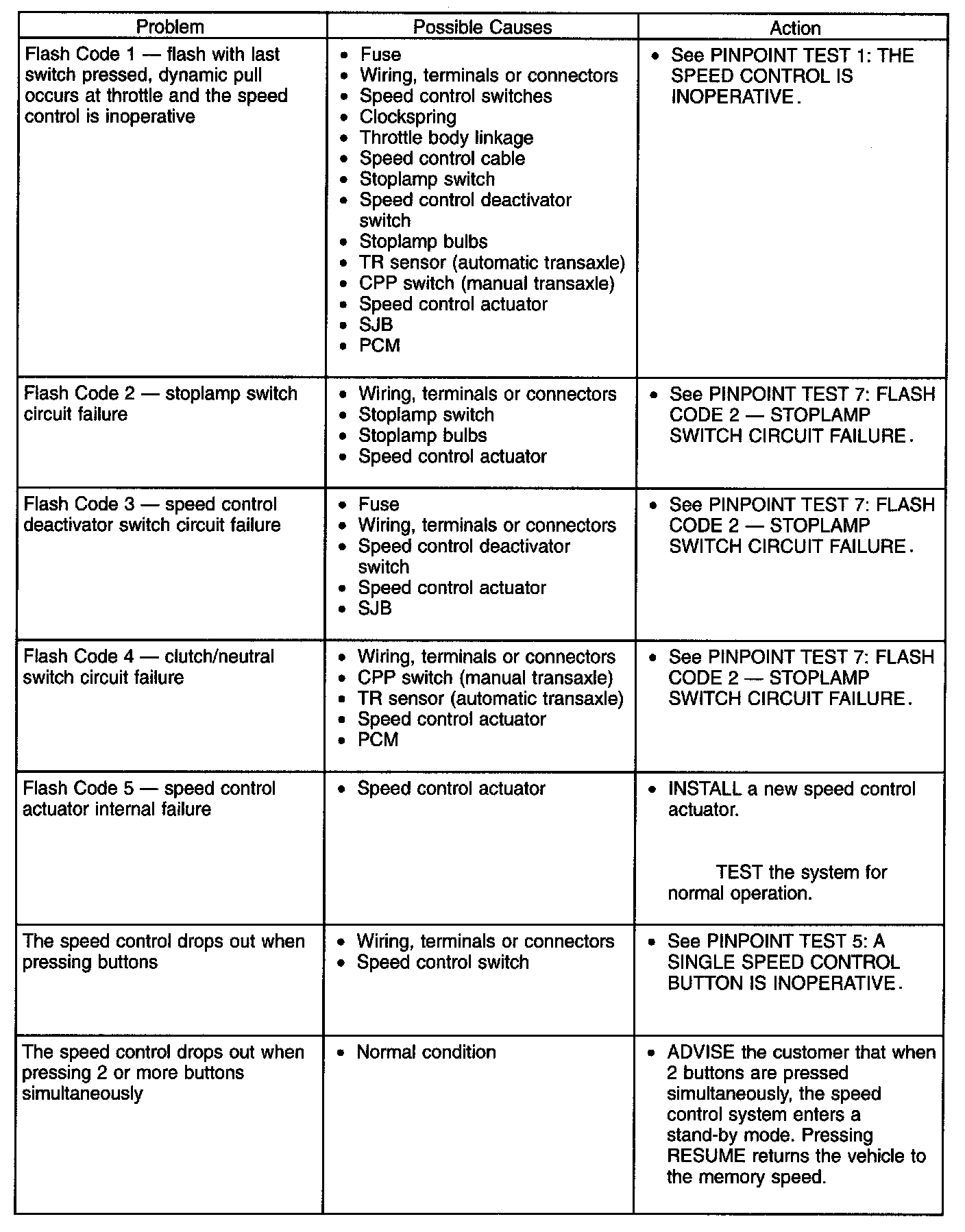

Symptom Troubleshooting Chart-Speed Control (Part 3):



Symptom Troubleshooting Chart-Speed Control (Part 4):
