Home >> Mazda >> 2008 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Components >> Liftgate Release Switch
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Liftgate Release Switch

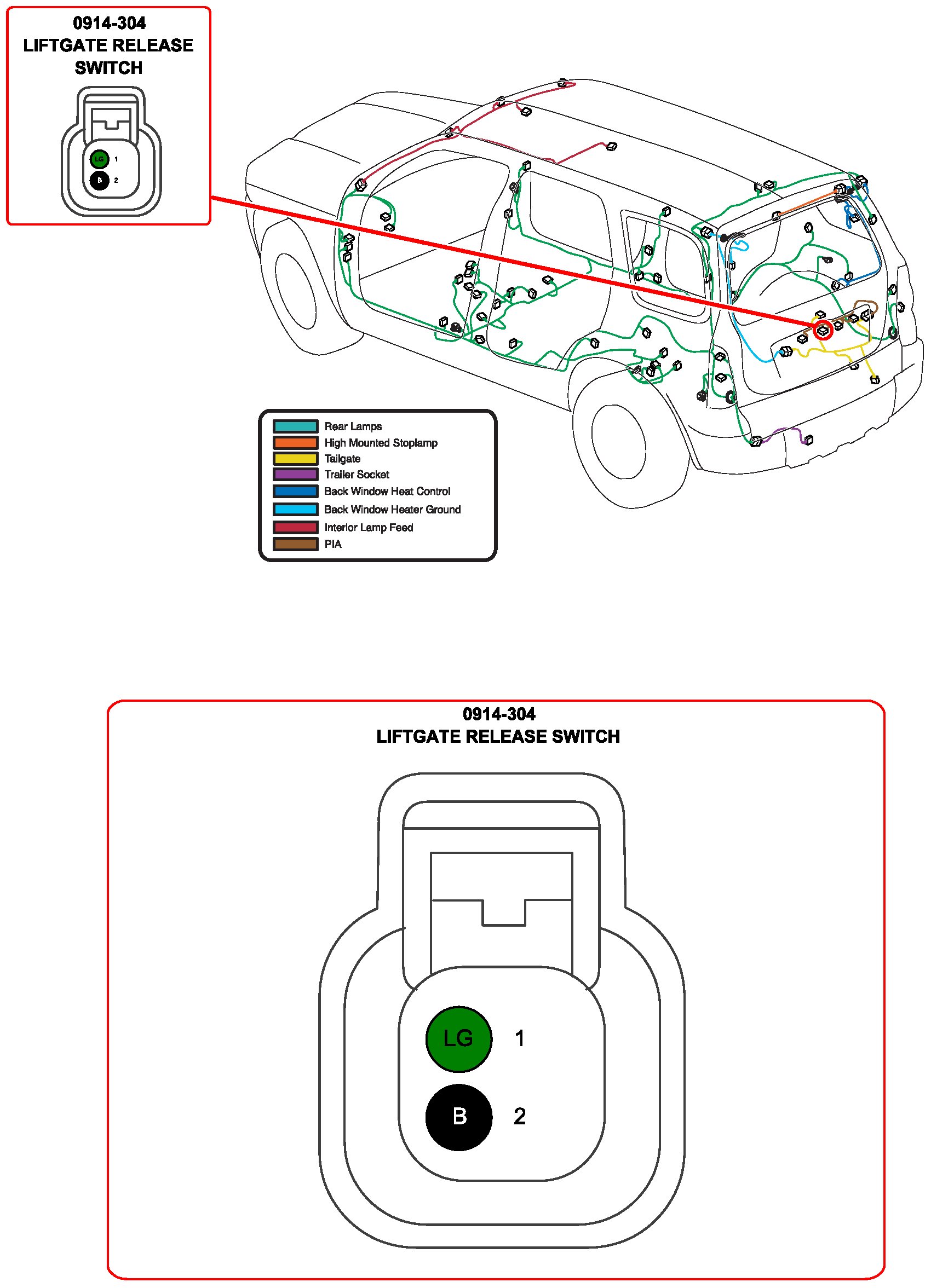

Liftgate Release Switch:

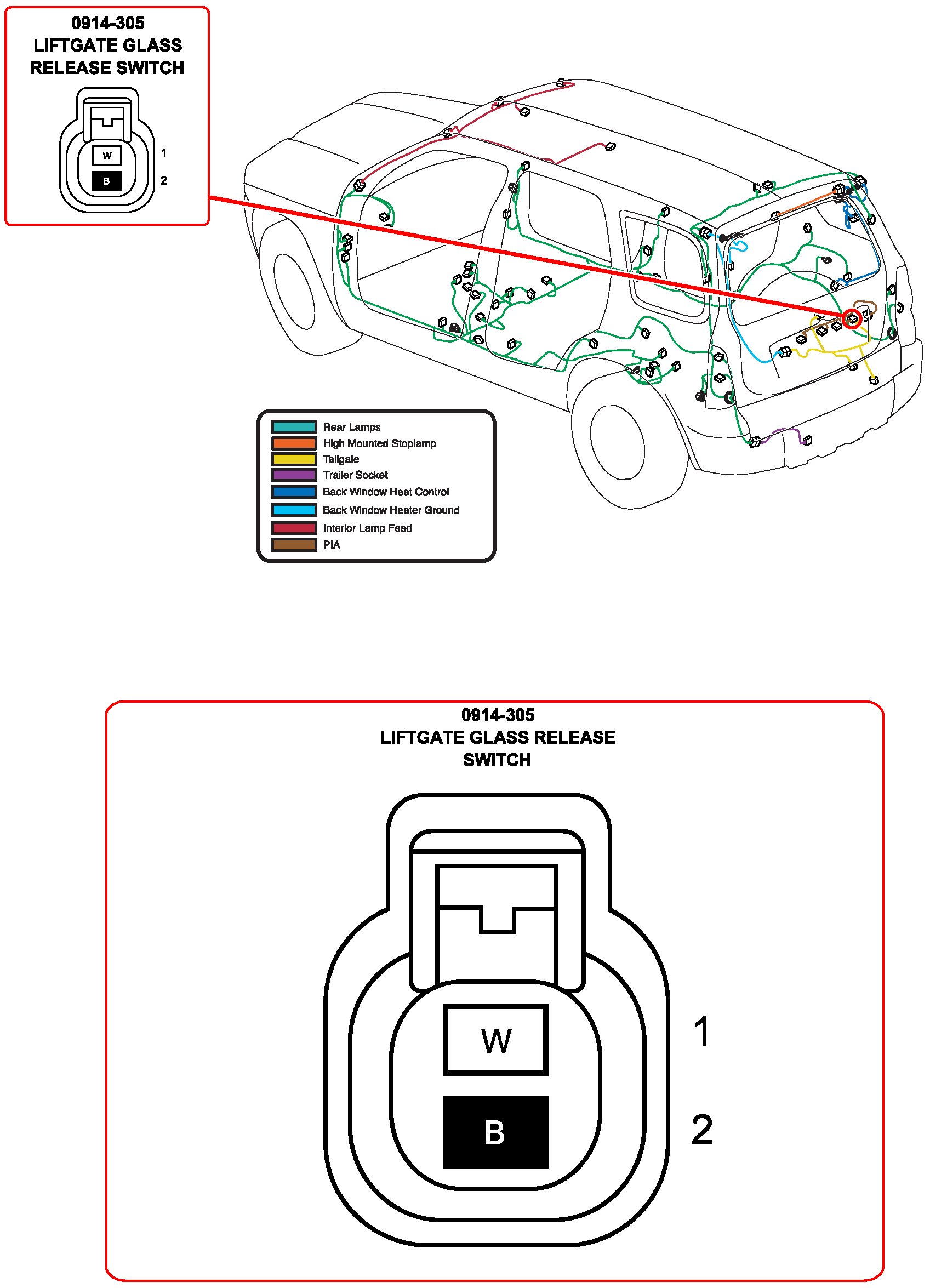

Liftgate Glass Release Switch:
