Positive Crankcase Ventilation

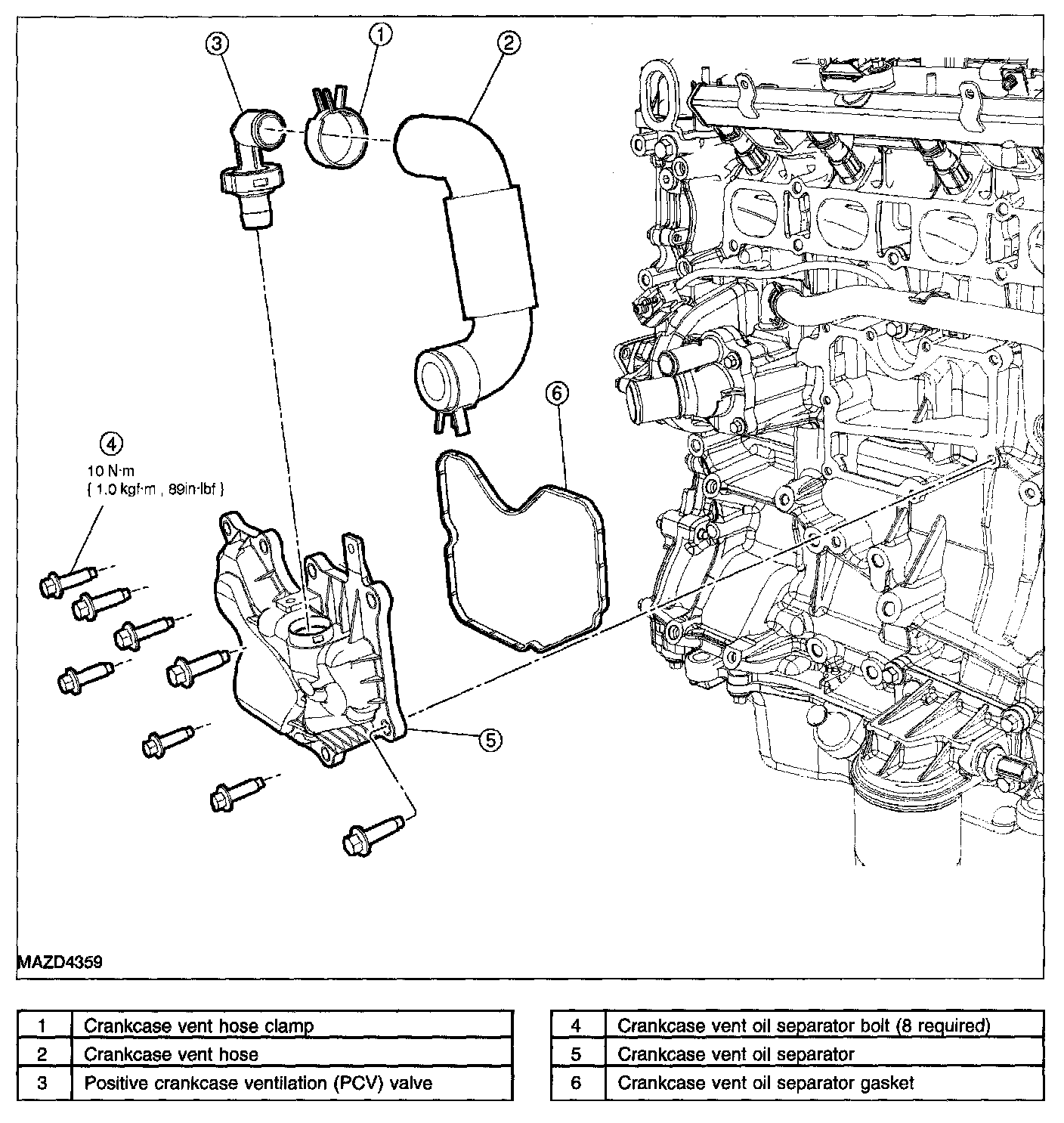

Positive Crankcase Ventilation (PCV) System - 2.3L Exploded View

Positive Crankcase Ventilation (PCV) System-2.3L Exploded View:






1. For additional information, see the procedures.
