System Diagram

FRONT SUSPENSION - EXPLODED VIEW

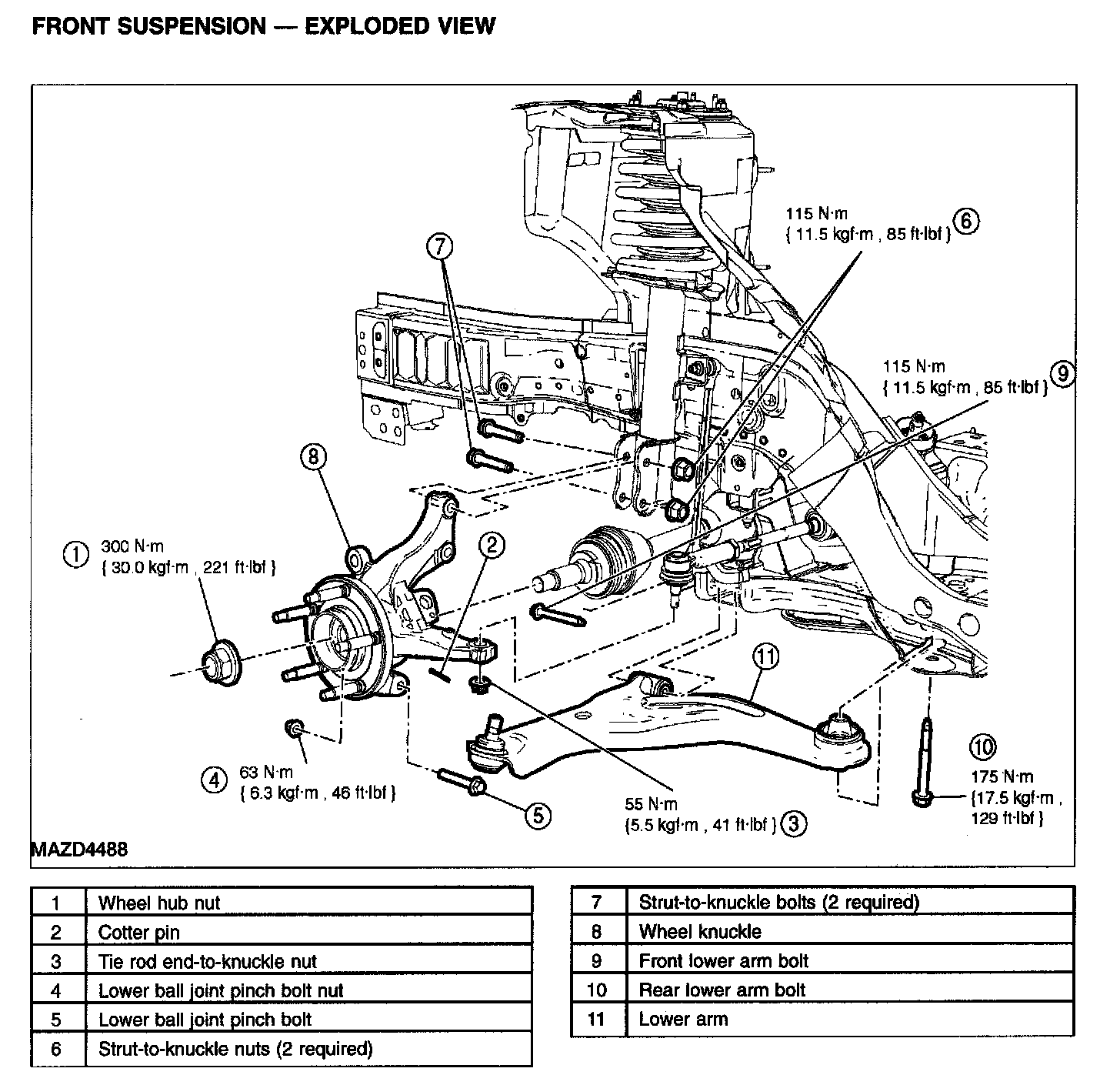

Front Suspension - Exploded View (Part 1):

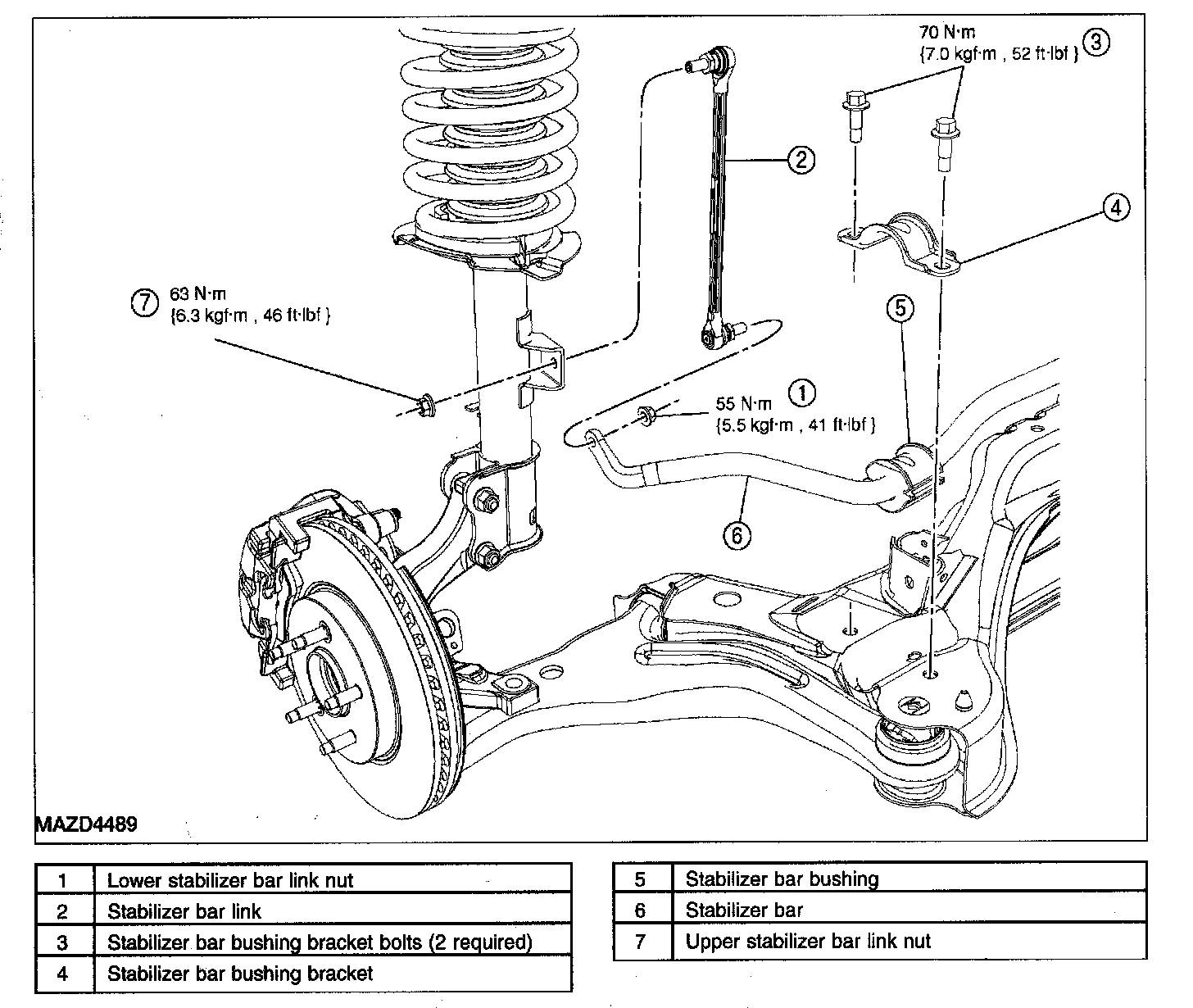

Front Suspension - Exploded View (Part 2):
