Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR REMOVAL/INSTALLATION

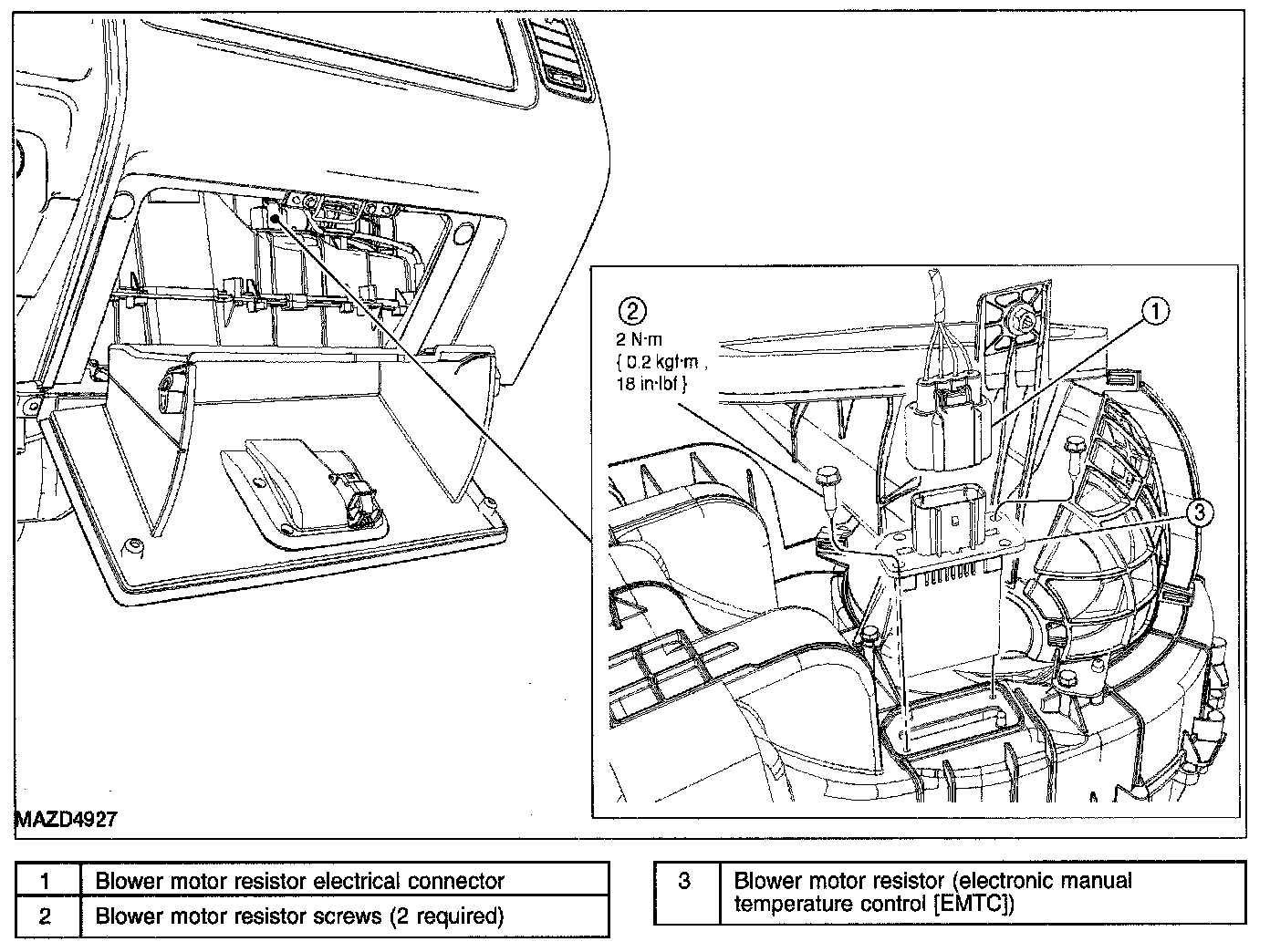

NOTE: Blower motor resistor shown. Blower motor speed control similar.






1. Lower the glove compartment.
2. Disconnect the blower motor resistor electrical connector.
3. Remove the 2 blower motor resistor screws.
4. Remove the blower motor resistor.
5. To install, reverse the removal procedure.
