Ignition Lock Cylinder - Functional Removal/Installation

IGNITION LOCK CYLINDER - FUNCTIONAL REMOVAL/INSTALLATION






1. Remove the passive anti-theft system (PATS) transceiver.

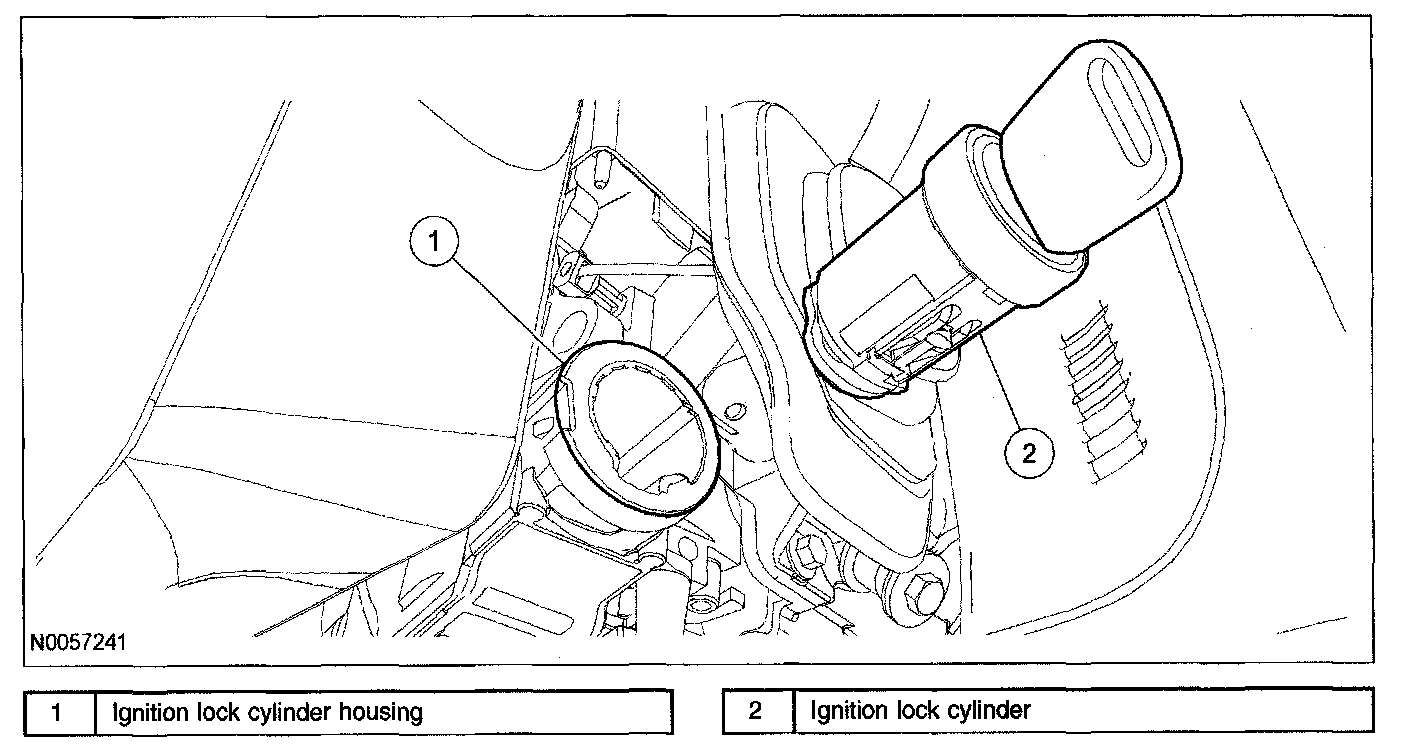

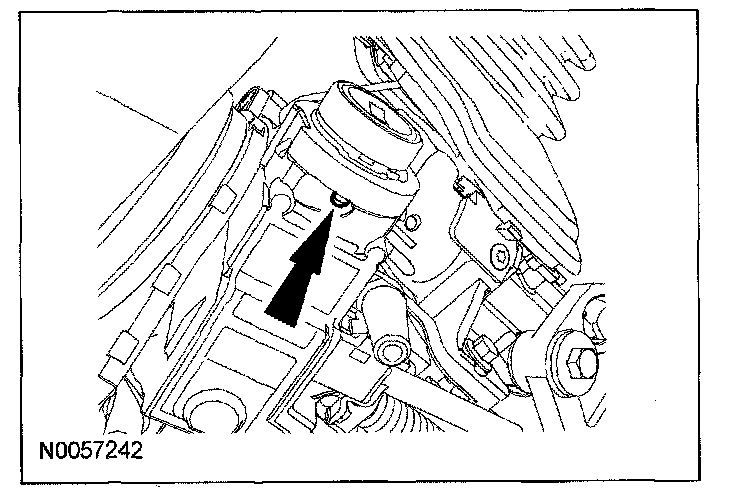

2. Using a suitable tool, press the release pin and remove the ignition lock cylinder.

NOTE: The ignition lock cylinder must be in the RUN position.

3. To install, reverse the removal procedure.
- Verify the ignition lock cylinder operation.
