Liftgate Window Glass: Service and Repair

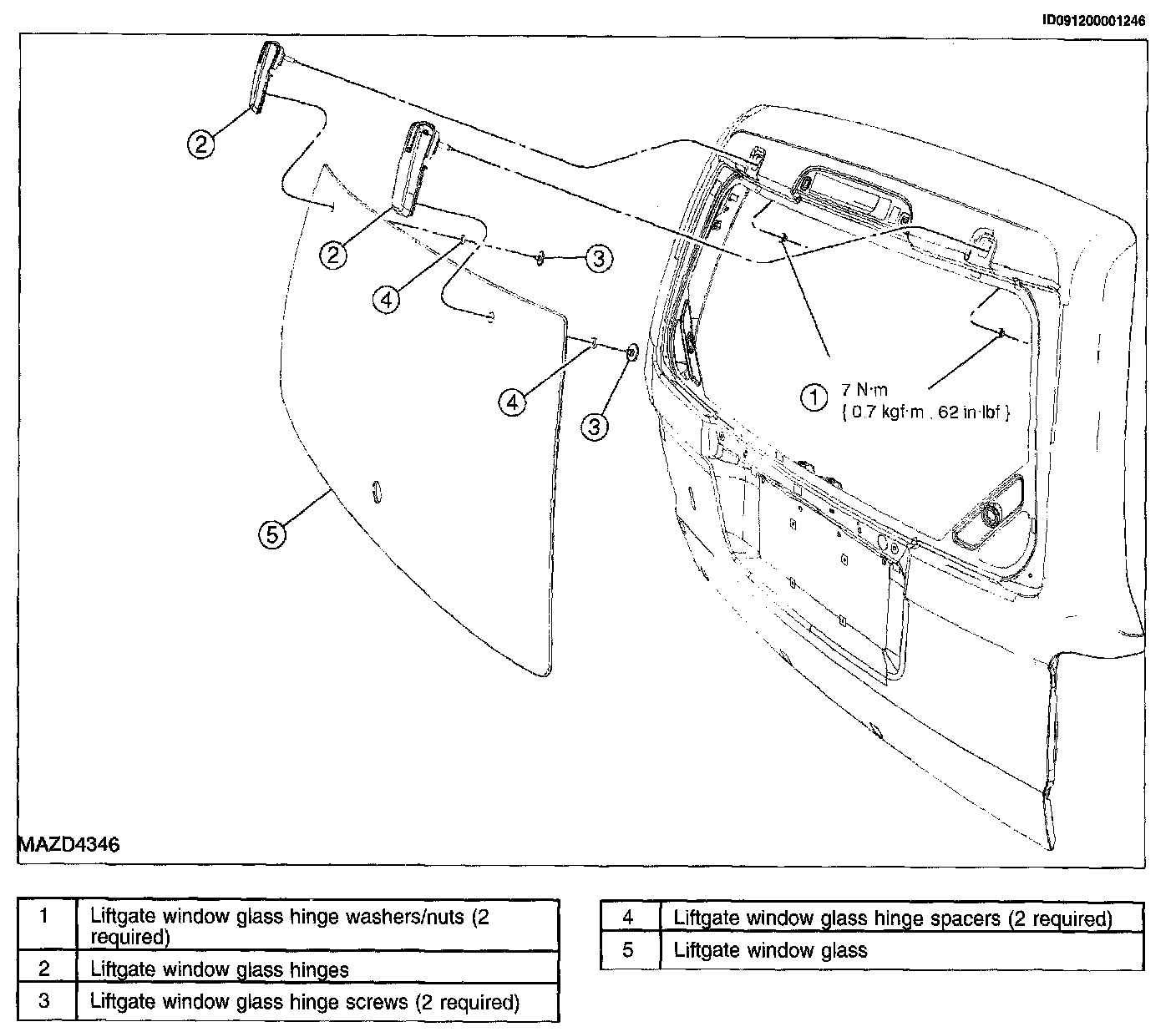

LIFTGATE WINDOW GLASS REMOVAL/INSTALLATION






1. Open the liftgate window glass.
2. Remove the 2 liftgate window glass nut access covers.






3. Through the RH access, disconnect the liftgate window glass electrical harness connector.
4. Disconnect the LH heated window grid wire electrical connector.
5. Disconnect the 2 liftgate window glass cylinders.
1. Slide the spring retainer to the end of the socket.
2. Disconnect the socket from the ball stud.

NOTE: An assistant may be needed to carry out this step.

6. Remove the 2 liftgate window glass hinge nuts and the liftgate window glass.
- To install, tighten to 7 N.m {0.7 kgf.m, 62 in.lbf}.

NOTE: An assistant may be needed to carry out this step.

7. To install, reverse the removal procedure.
- Transfer components as necessary.
