Engine Lubrication

ENGINE LUBRICATION COMPONENTS - 3.0L (4V) EXPLODED VIEW

Oil Pan, Oil Pump Screen and Pickup Tube and Oil Pan Baffle

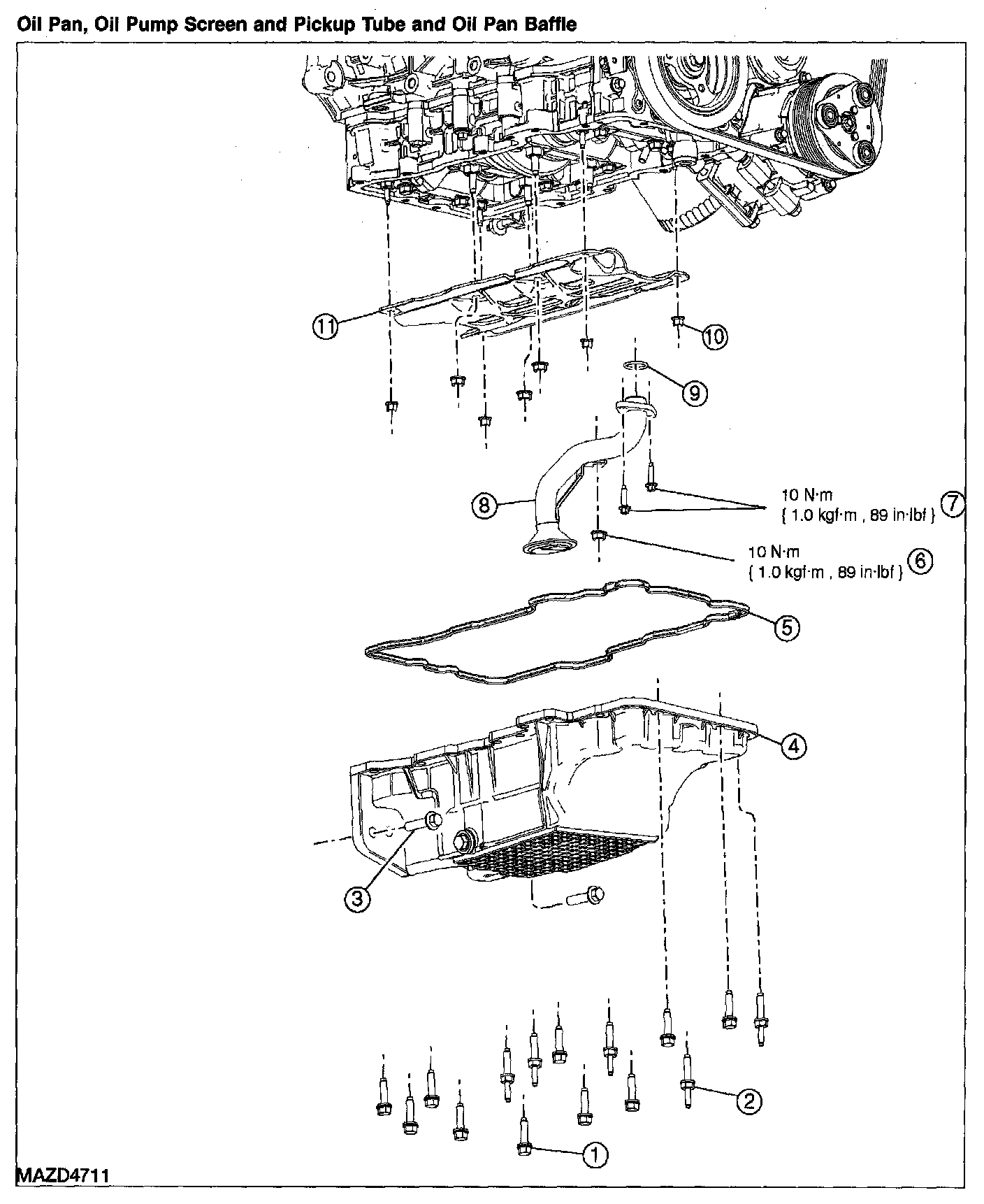

Oil Pan, Oil Pump Screen and Pickup Tube and Oil Pan Baffle (Part 1):




Oil Pan, Oil Pump Screen and Pickup Tube and Oil Pan Baffle (Part 2):





Oil Pump

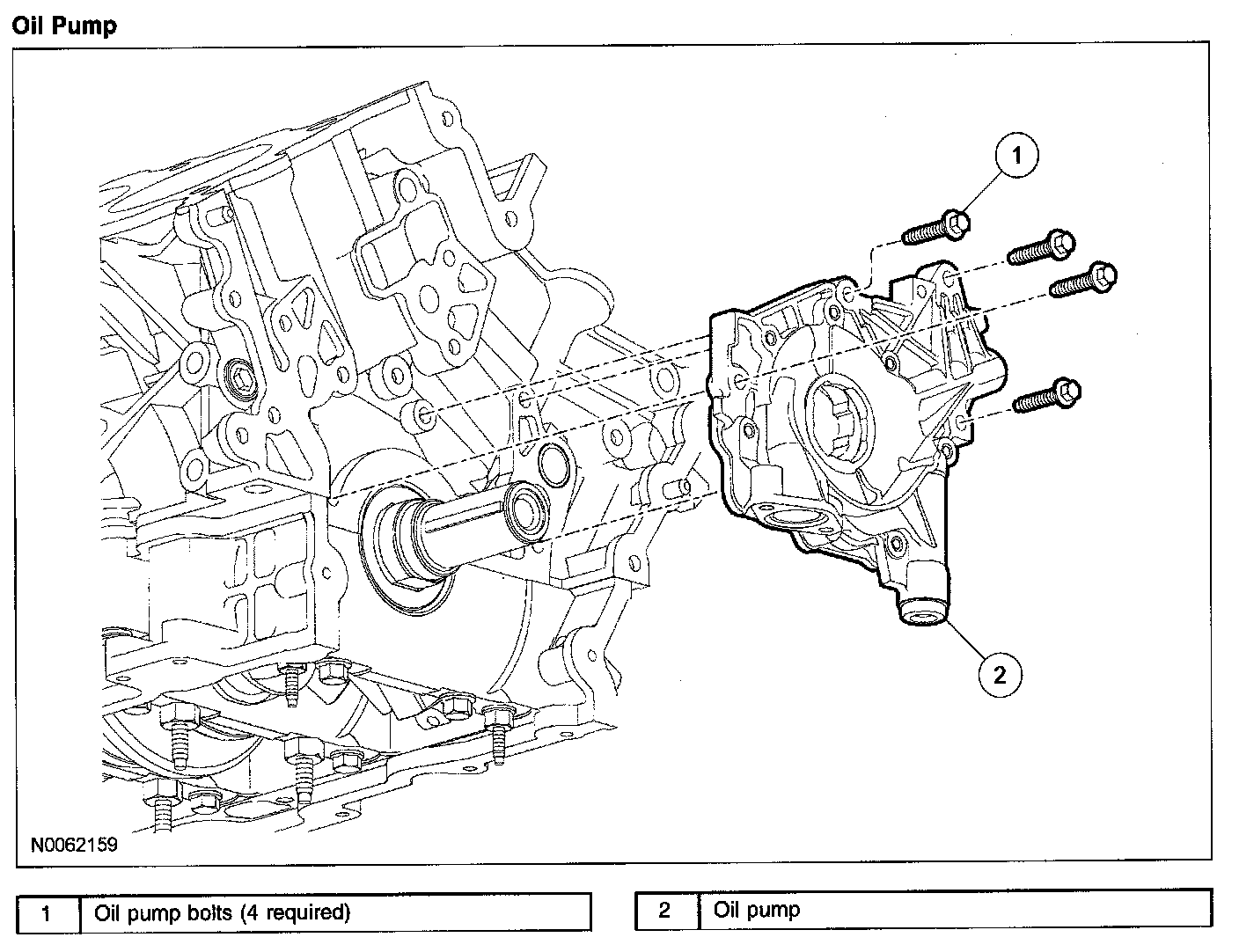

Oil Pump:
