Exhaust Gas Recirculation

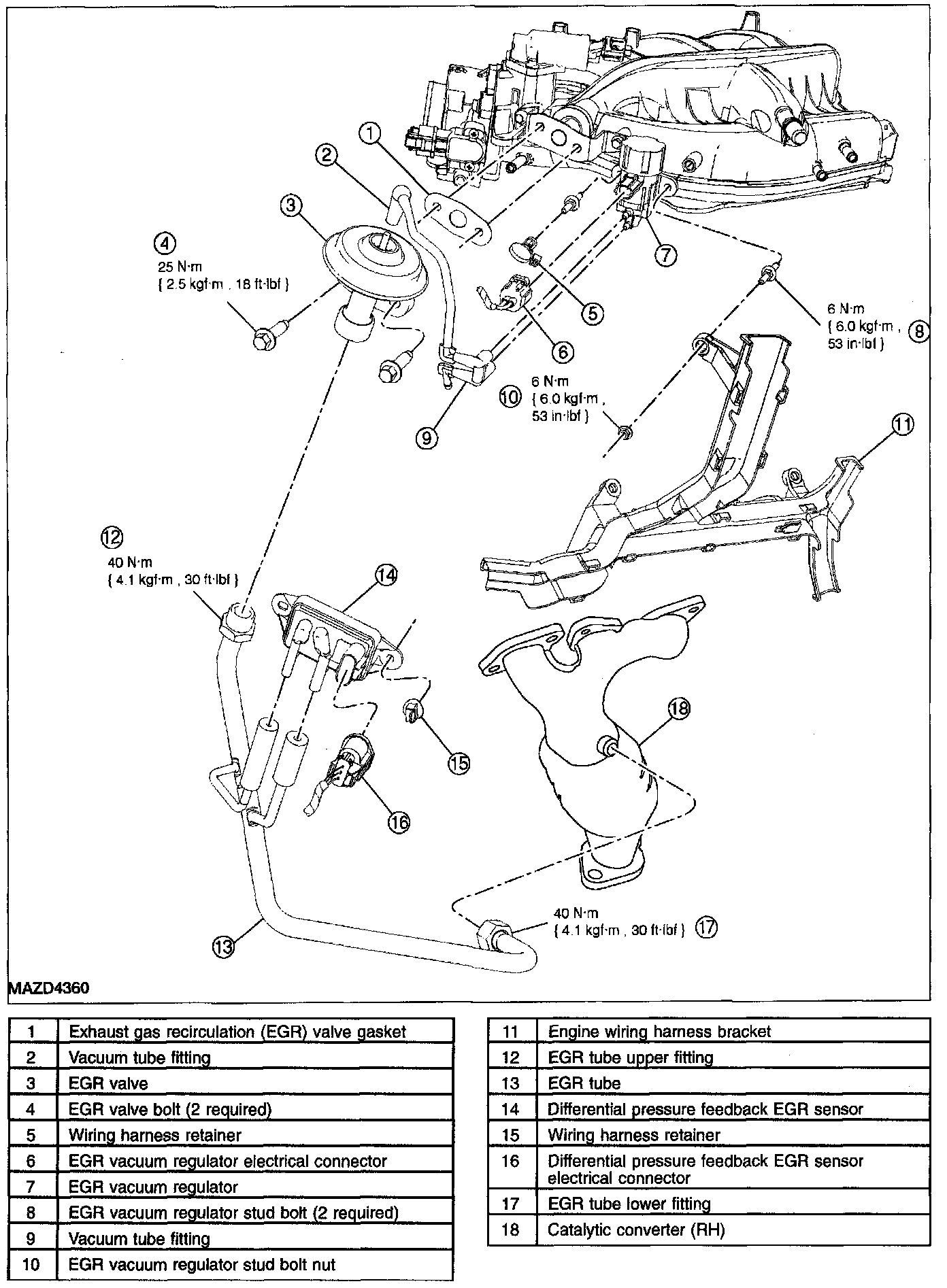

Exhaust Gas Recirculation (EGR) System - 3.0L (4V) Exploded View

Exhaust Gas Recirculation (EGR) System - 3.0L (4V) Exploded View:






1. For additional information, see the procedures.
