A/C Compressor Control

Diagram 0740-2:

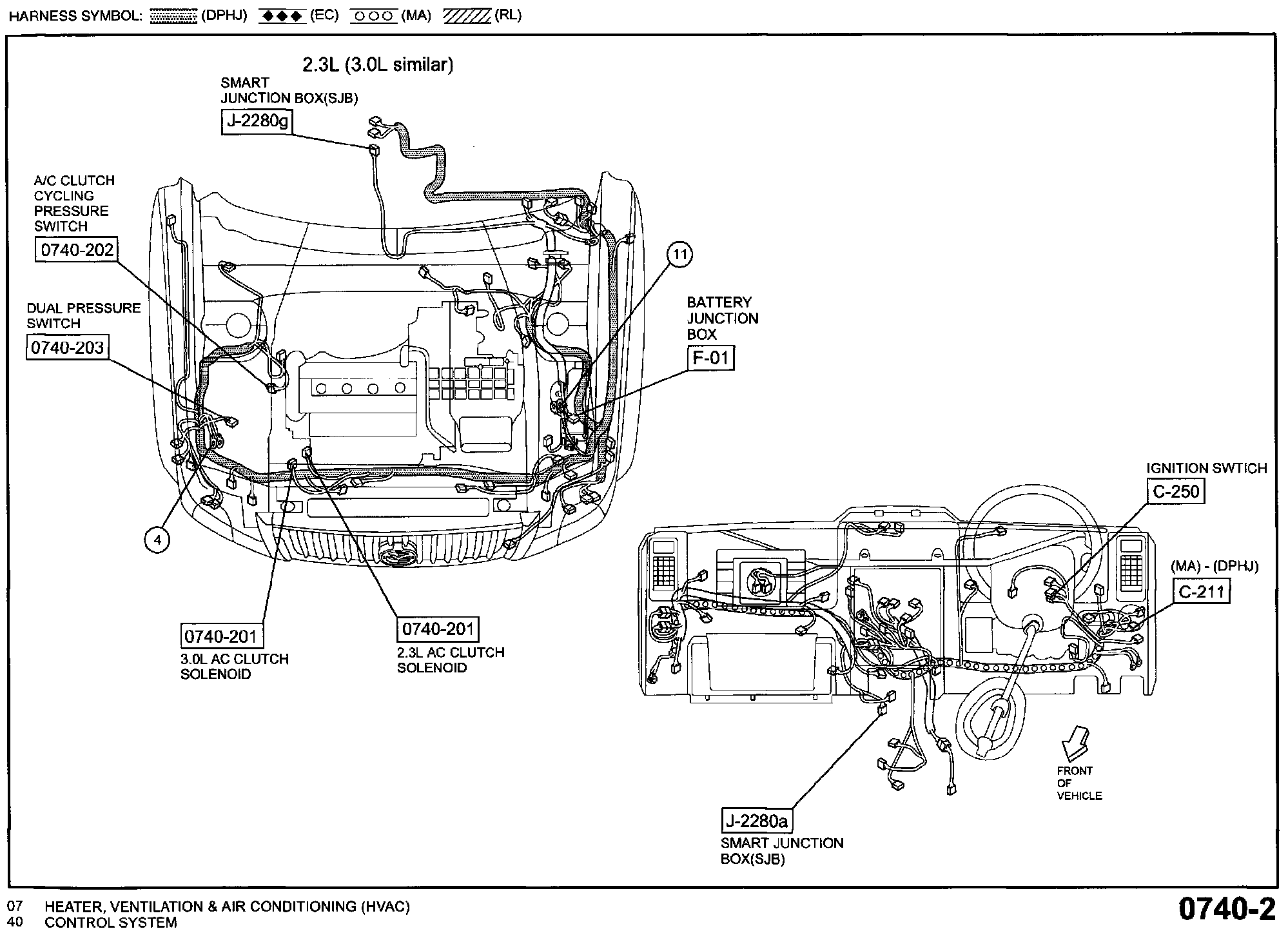

Routing View 0740-2:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
