Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR - 3.0L (4V) REMOVAL/INSTALLATION






1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING.




2. Remove the 5 bolts and the RH splash shield.
- To install, tighten to 9 N.m {0.9 kgf.m, 80 in.lbf}.

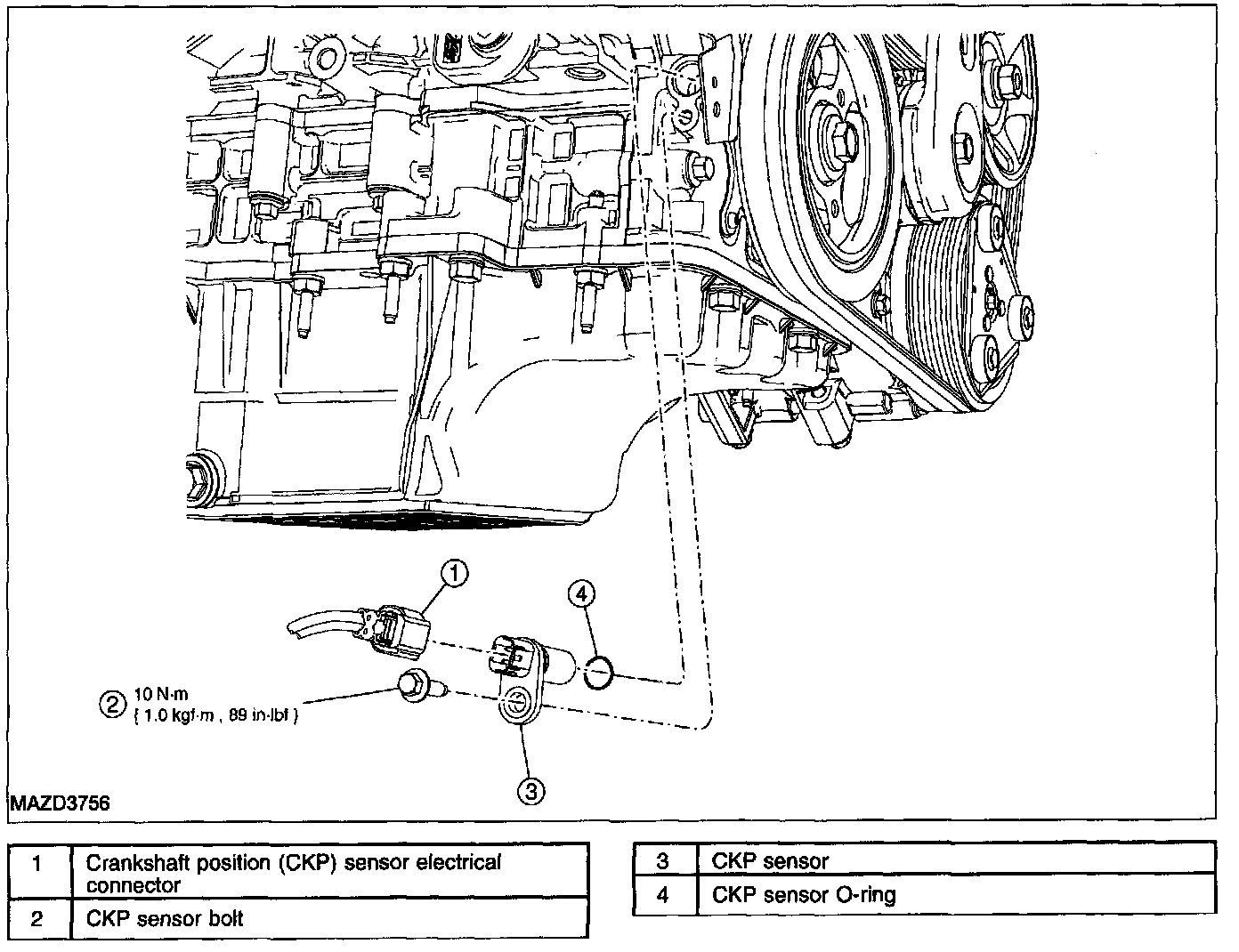

3. Disconnect the crankshaft position (CKP) sensor electrical connector.
4. Remove the bolt and the CKP.
- To install, tighten to 10 N.m {1.0 kgf.m, 89 in.lbf}.
- Inspect the O-ring seal and install new as necessary.

5. To install, reverse the removal procedure.

NOTE: Lubricate the CKP O-ring seal with clean engine oil.
