Oil Pan, Engine

Oil Pan

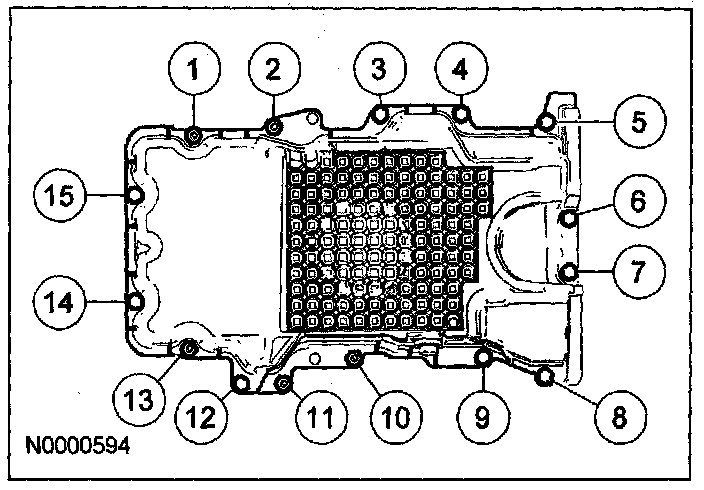

Tighten the oil pan bolts in the sequence shown to 25 N-m (2.5 kgf-m, 18 ft-lb).
