Front Display Interface Module (FDIM) Removal/Installation

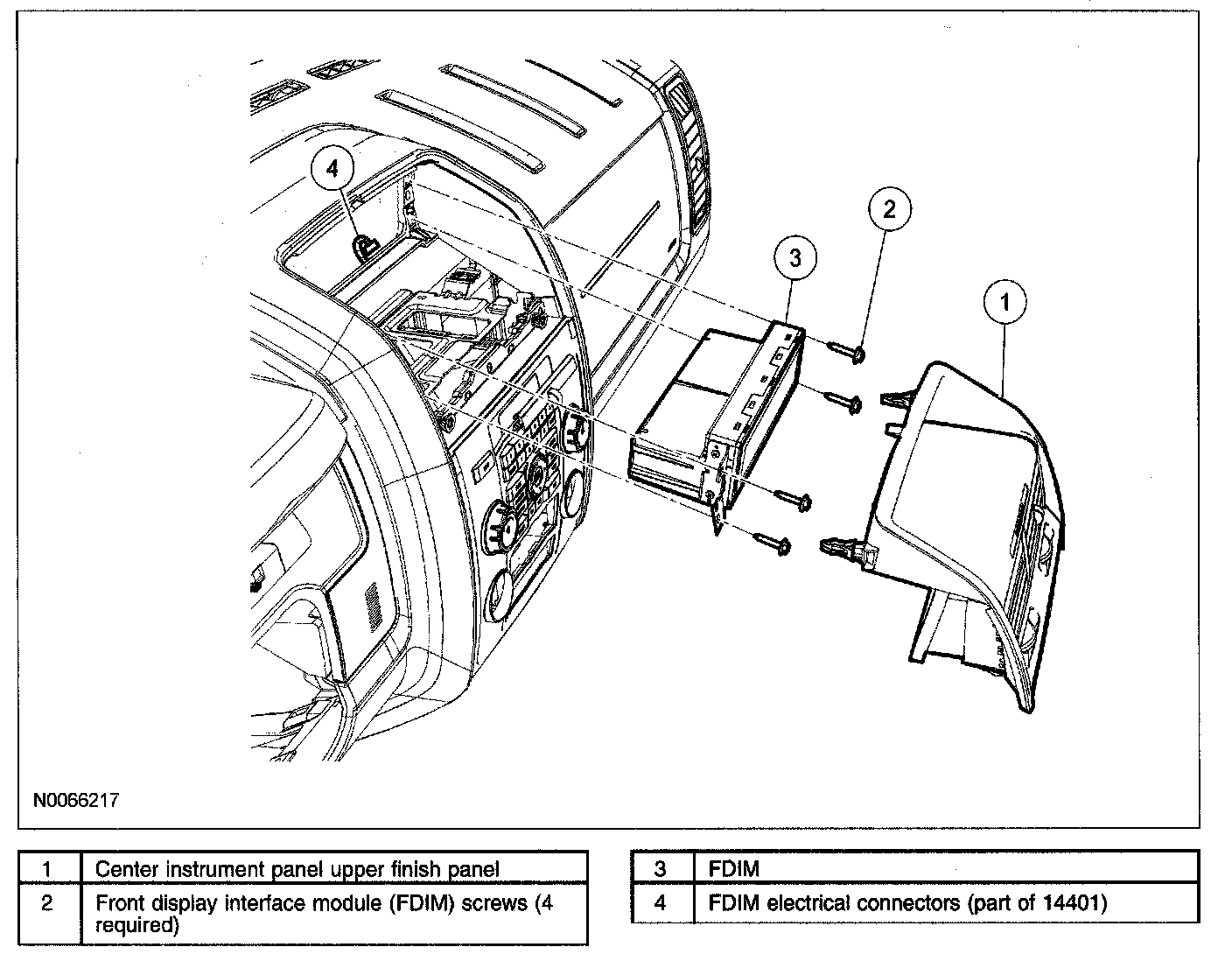

FRONT DISPLAY INTERFACE MODULE (FDIM) REMOVAL/INSTALLATION






1. Remove the center instrument panel upper finish panel by pulling straight back.
2. Remove the 4 front display interface module (FDIM) screws.
3. Remove the FDIM.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
