Front Harness-Short Cord

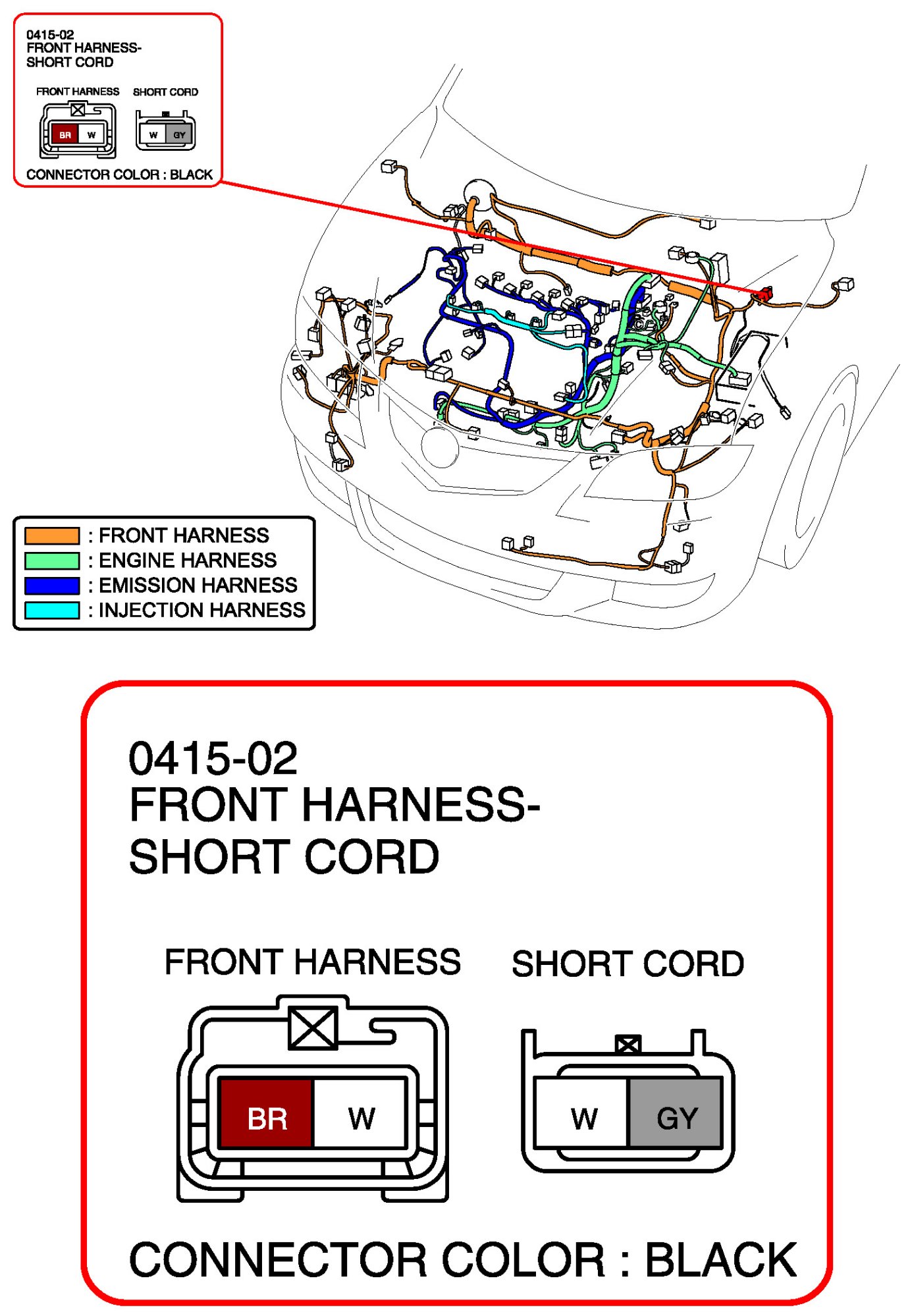

Front Harness - Short Cord:

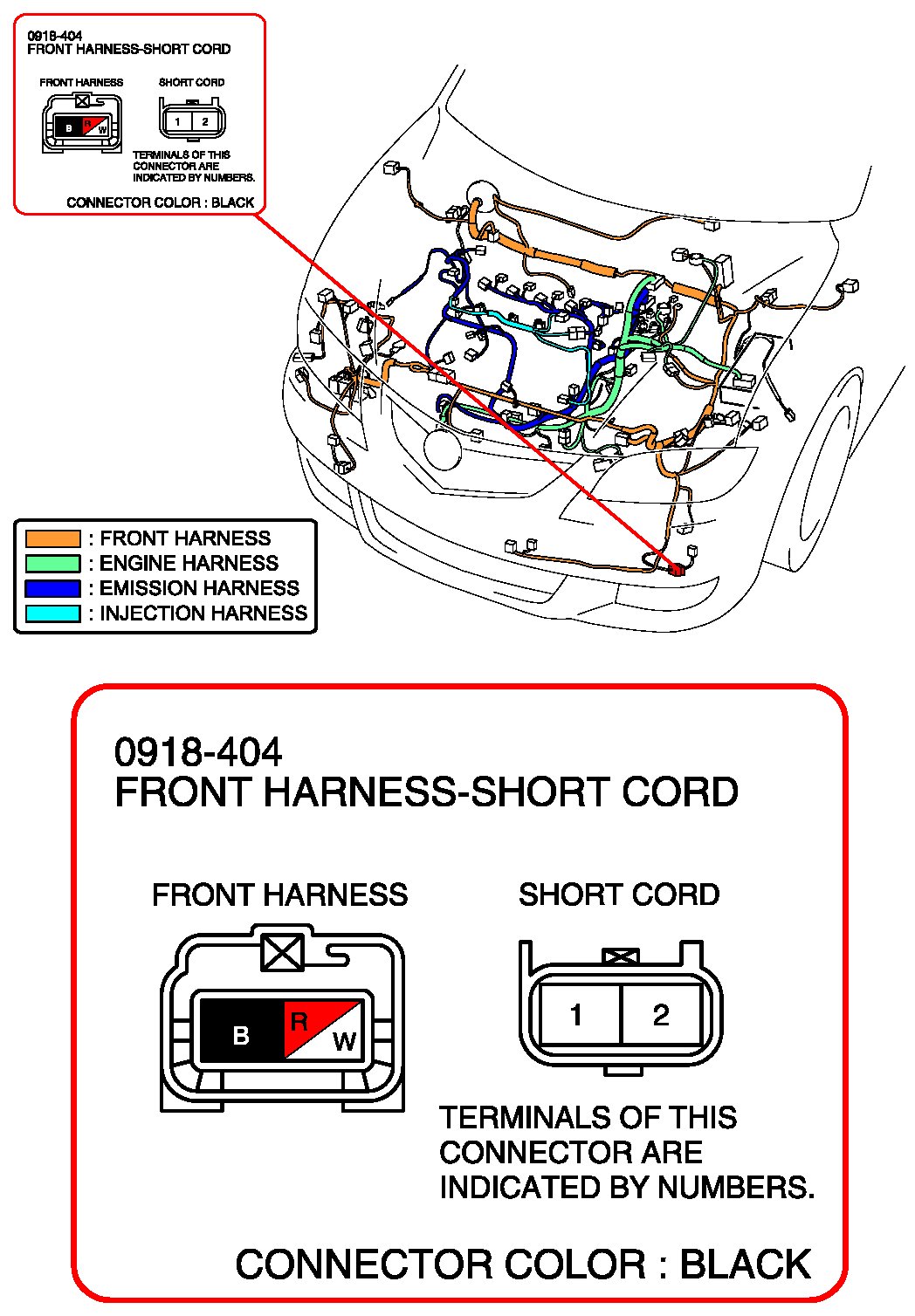

Front Harness-Short Cord:

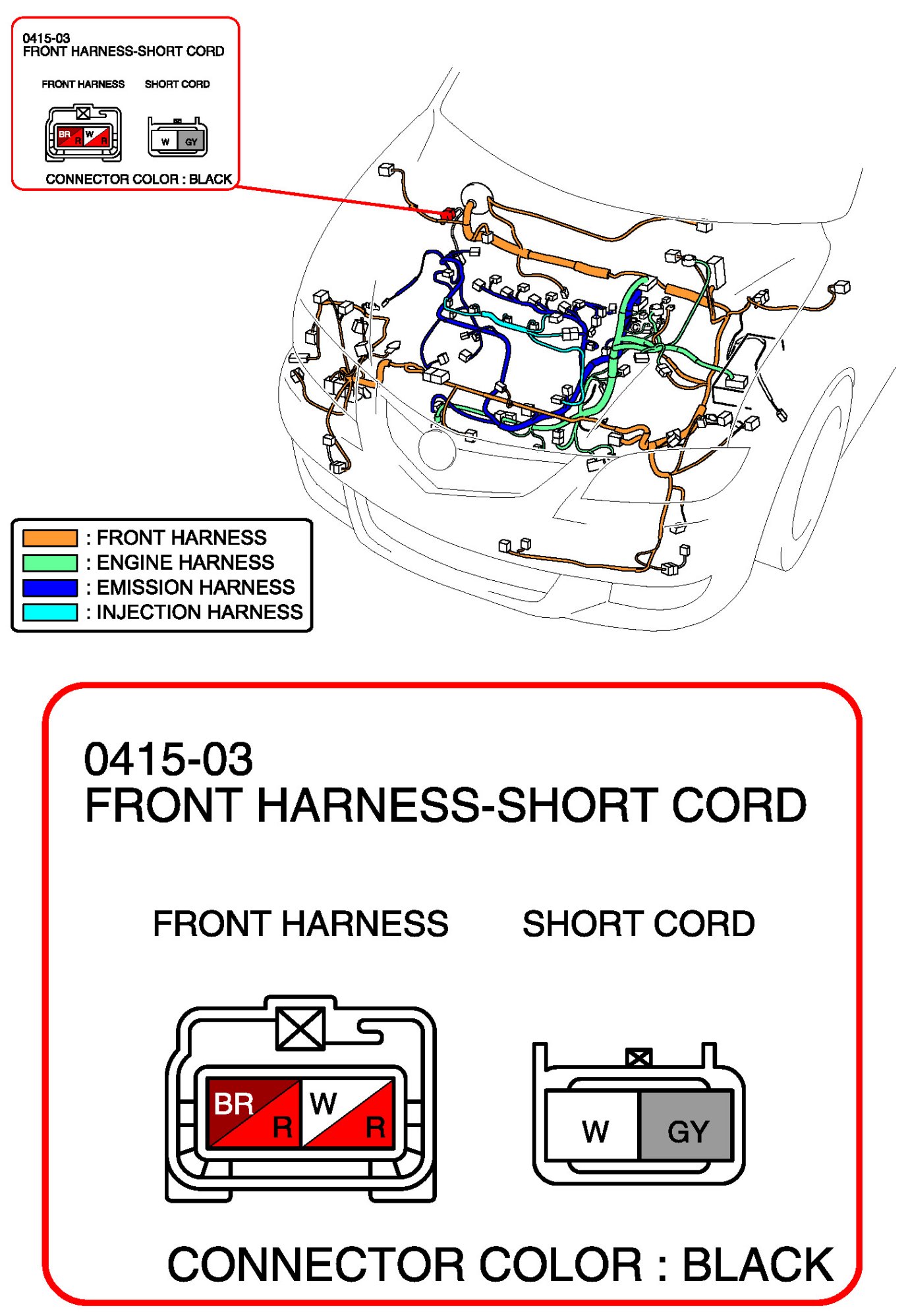

Front Harness-Short Cord:

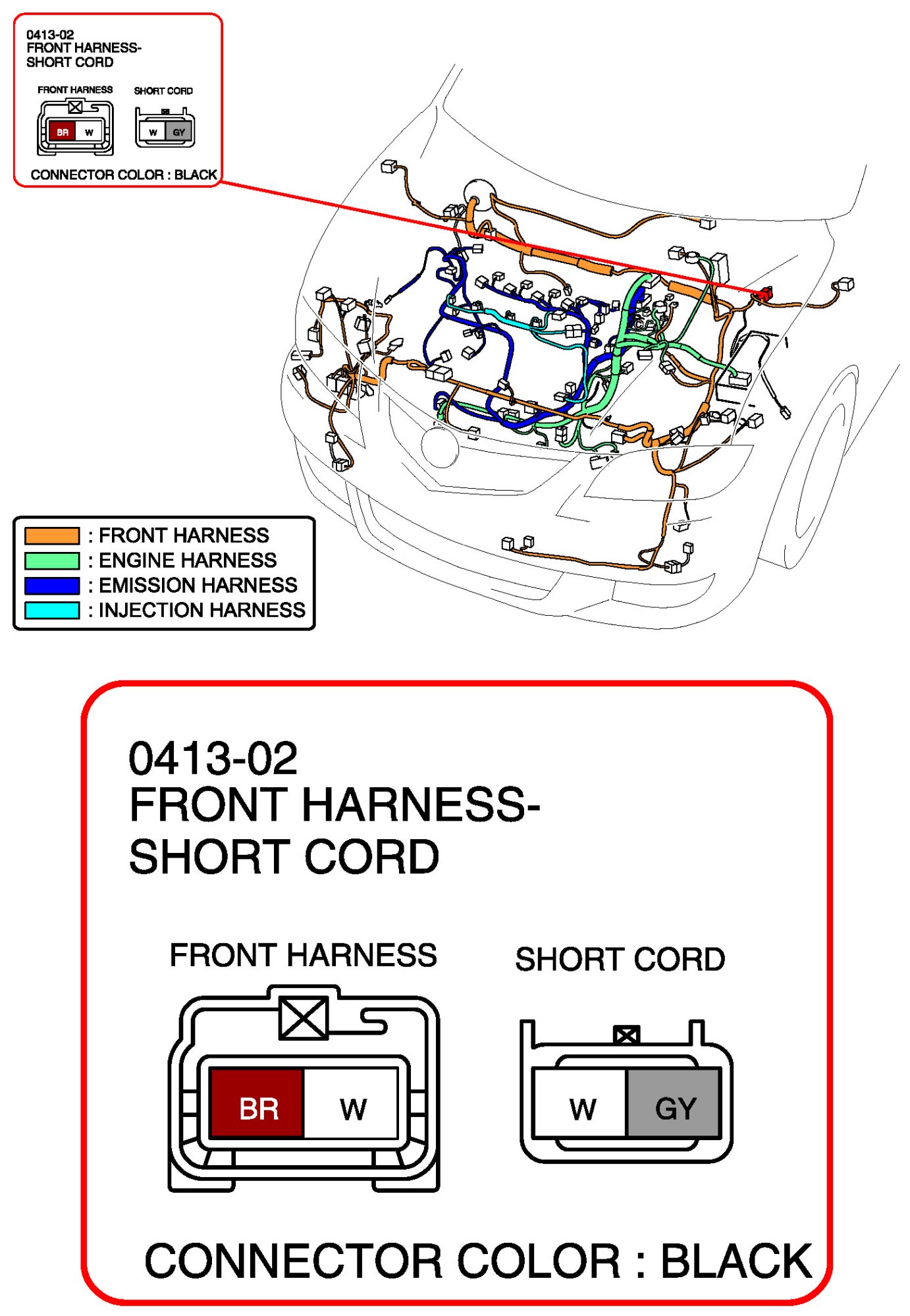

Front Harness-Short Cord:

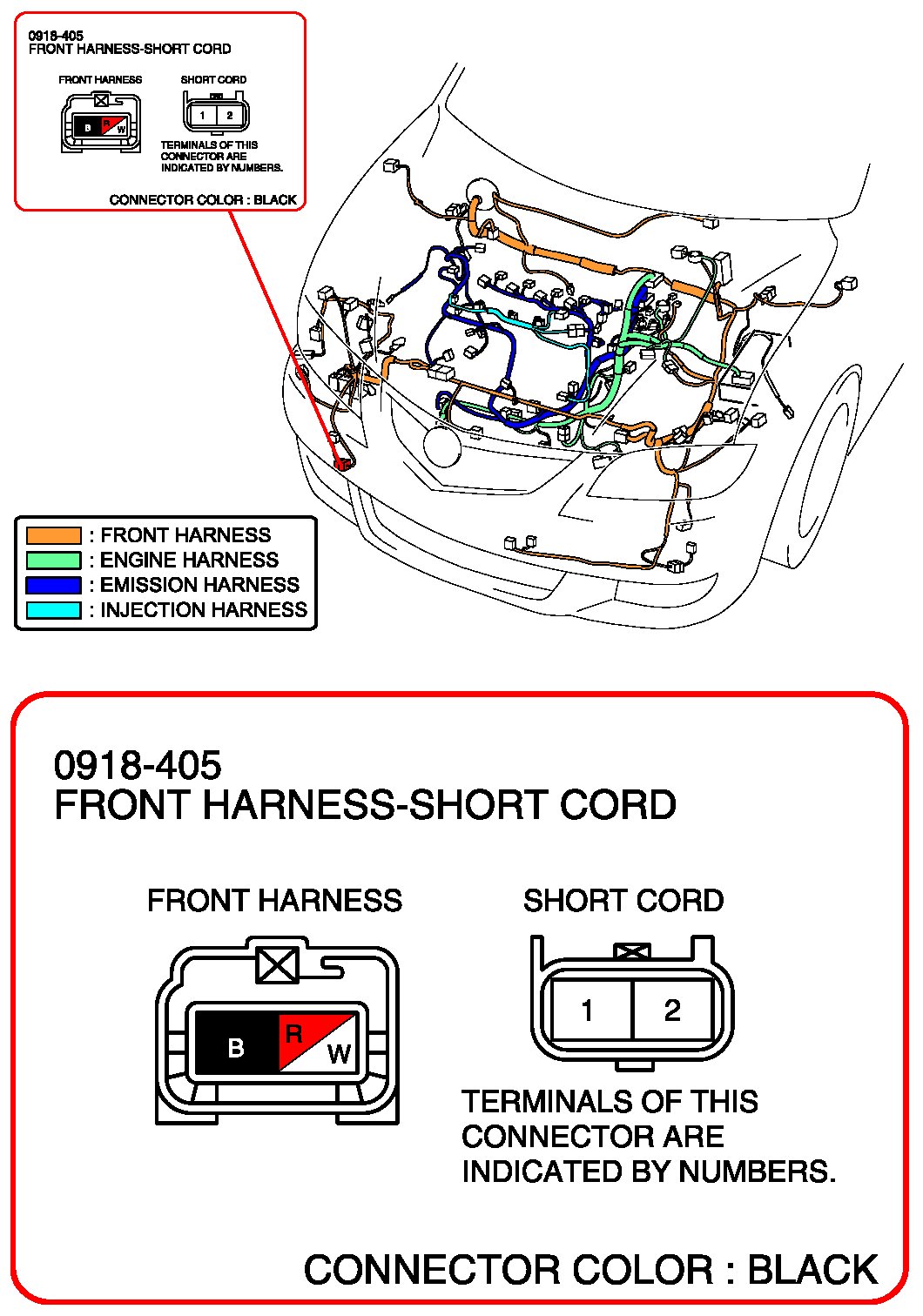

Front Harness-Short Cord:

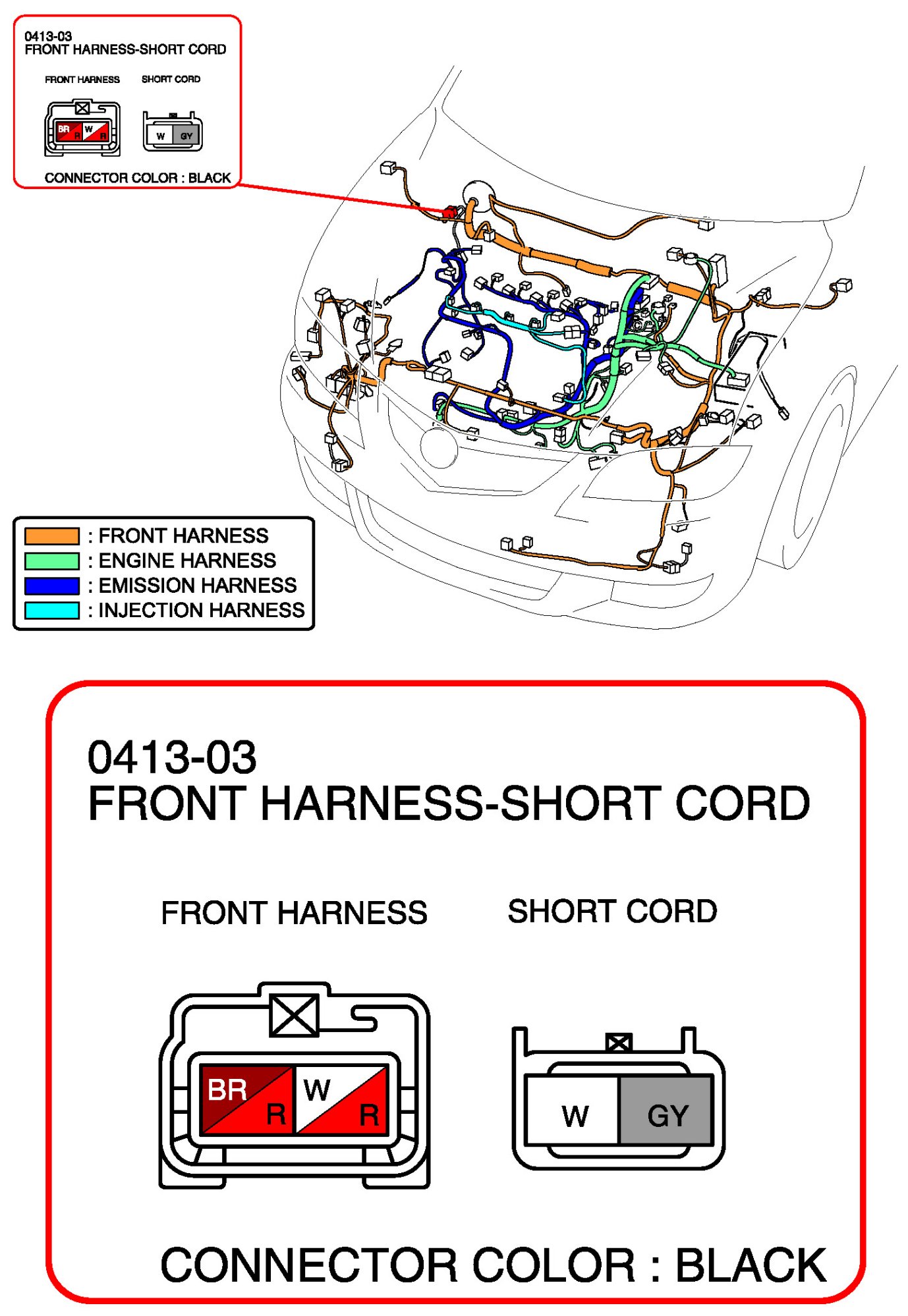

Front Harness-Short Cord:
