Blower Motor: Testing and Inspection

BLOWER MOTOR INSPECTION

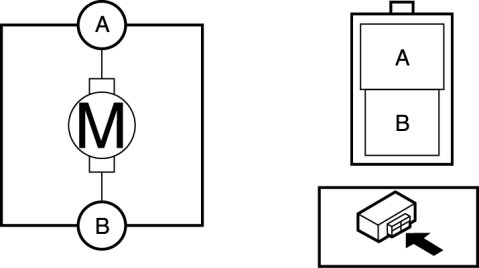

Connect battery positive voltage to blower motor terminal A, connect terminal B to ground, and then verify its operation.

- If there is any malfunction, replace the blower motor.
