No.5 No Temperature Control With Climate Control Unit
NO.5 TEMPERATURE CONTROL WITH CLIMATE CONTROL UNIT
Description/Possible Cause:
Diagnostic procedure

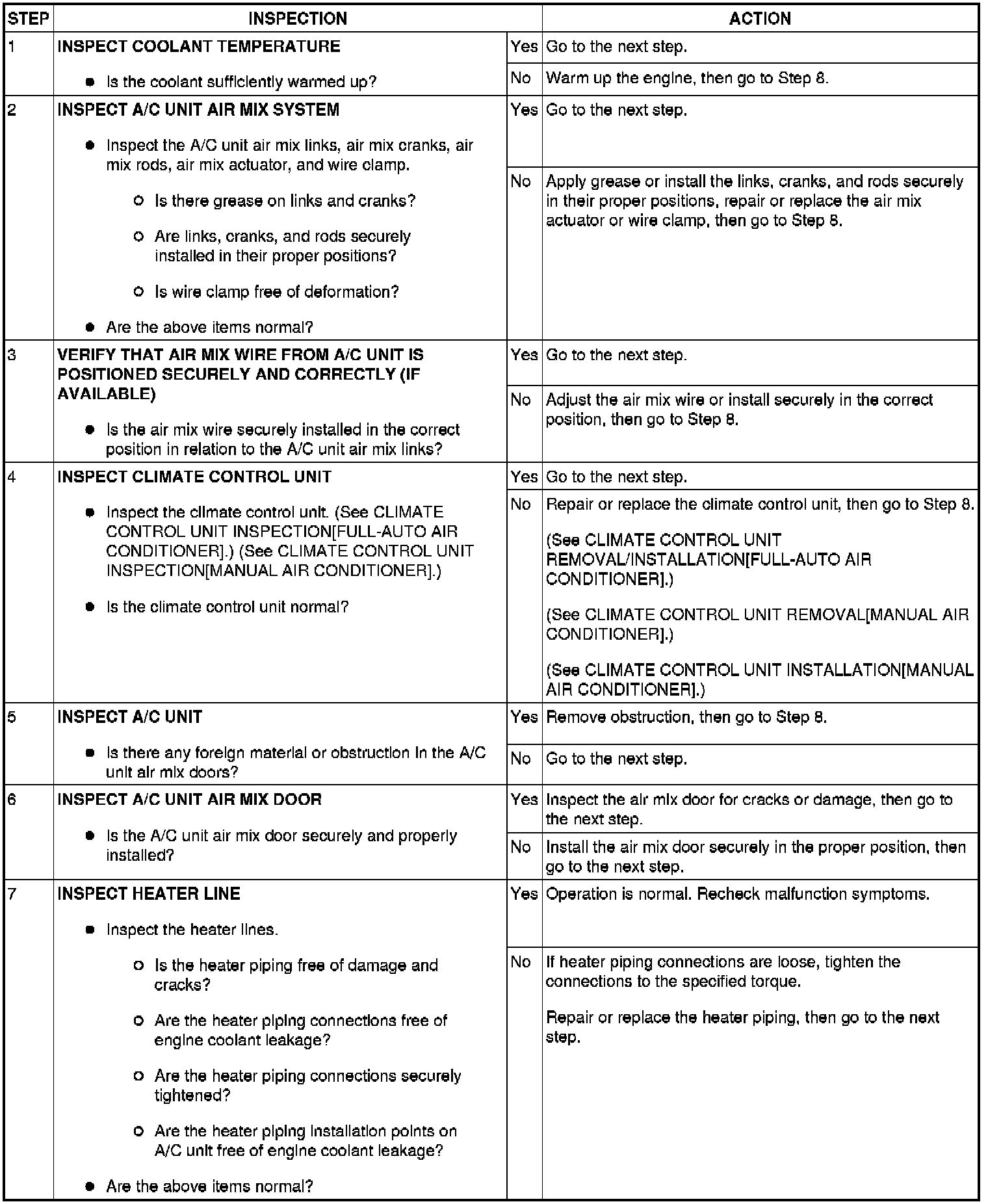

Step 1-Step 7:
Step 8:
