Removal and Replacement

COMBINATION SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Driver-side air bag module Driver-Side Air Bag Module Removal/Installation

b. Steering wheel Service and Repair

c. Front scuff plate Front Scuff Plate Removal/Installation

d. Front side trim Front Side Trim Removal/Installation

e. Hood release lever Service and Repair

f. Lower panel Lower Panel Removal/Installation

g. Column cover Service and Repair

h. Clock spring Service and Repair

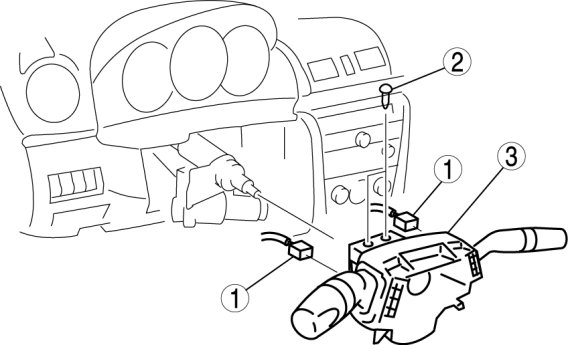

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

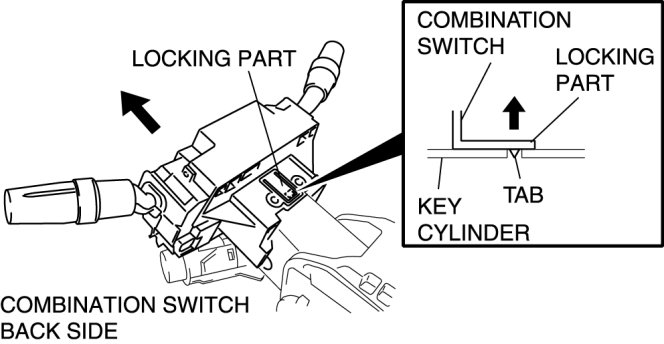

Combination Switch Removal Note

1. Pull the combination switch locks in the direction indicated in the figure and disengage the tab.

2. Pull the combination switch outward, then remove it.
