Monitoring System And Control System Device Relationship Chart [L3 With TC]

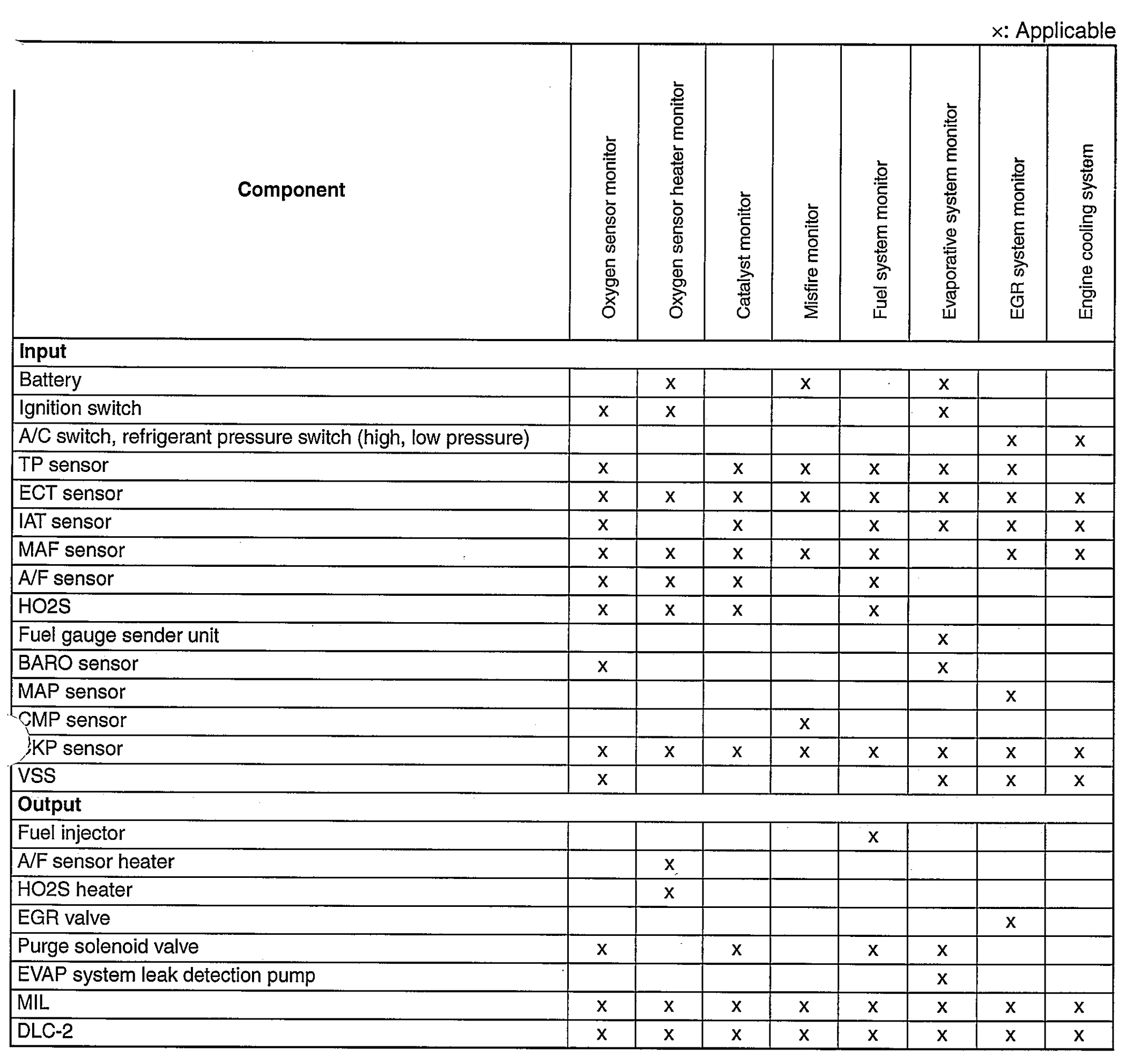

Fig 1: Monitoring System And Control System Device Relationship Chart
G00485820Courtesy of MAZDA MOTORS CORP.
