Navigation Check [Car-Navigation System]

NAVIGATION CHECK [CAR-NAVIGATION SYSTEM]

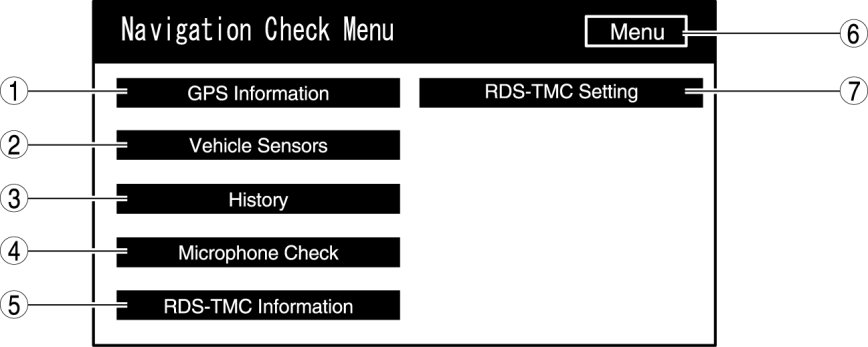

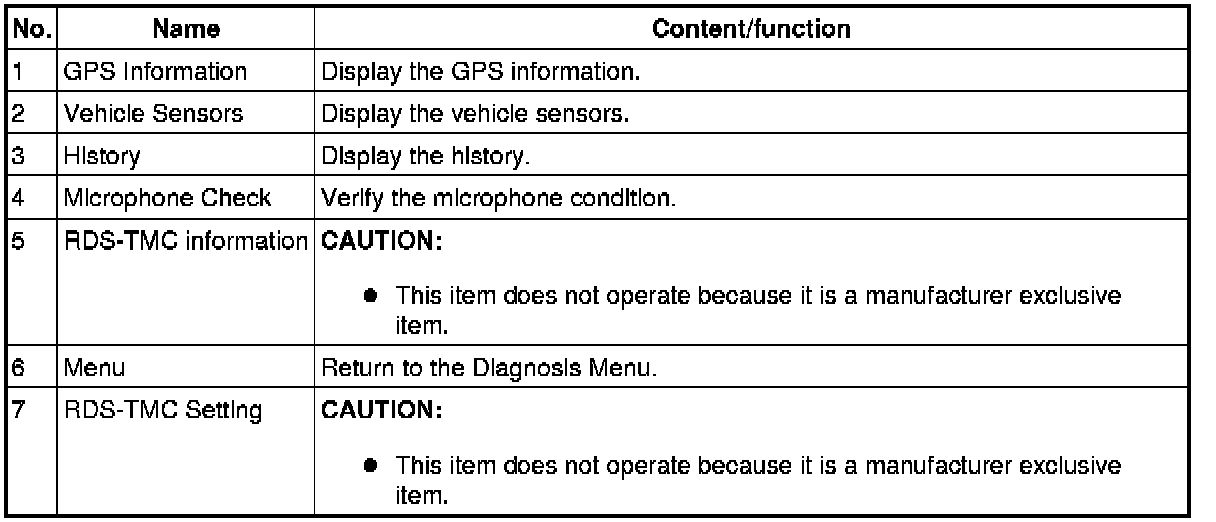

Inspection item list










GPS Information

1. Switch the ignition to ACC or ON.

2. Launch the diagnostic mode. Starting Procedure For Diagnostic Mode [Car-Navigation System]

3. Select "Navigation Check".

4. Select "GPS Information".

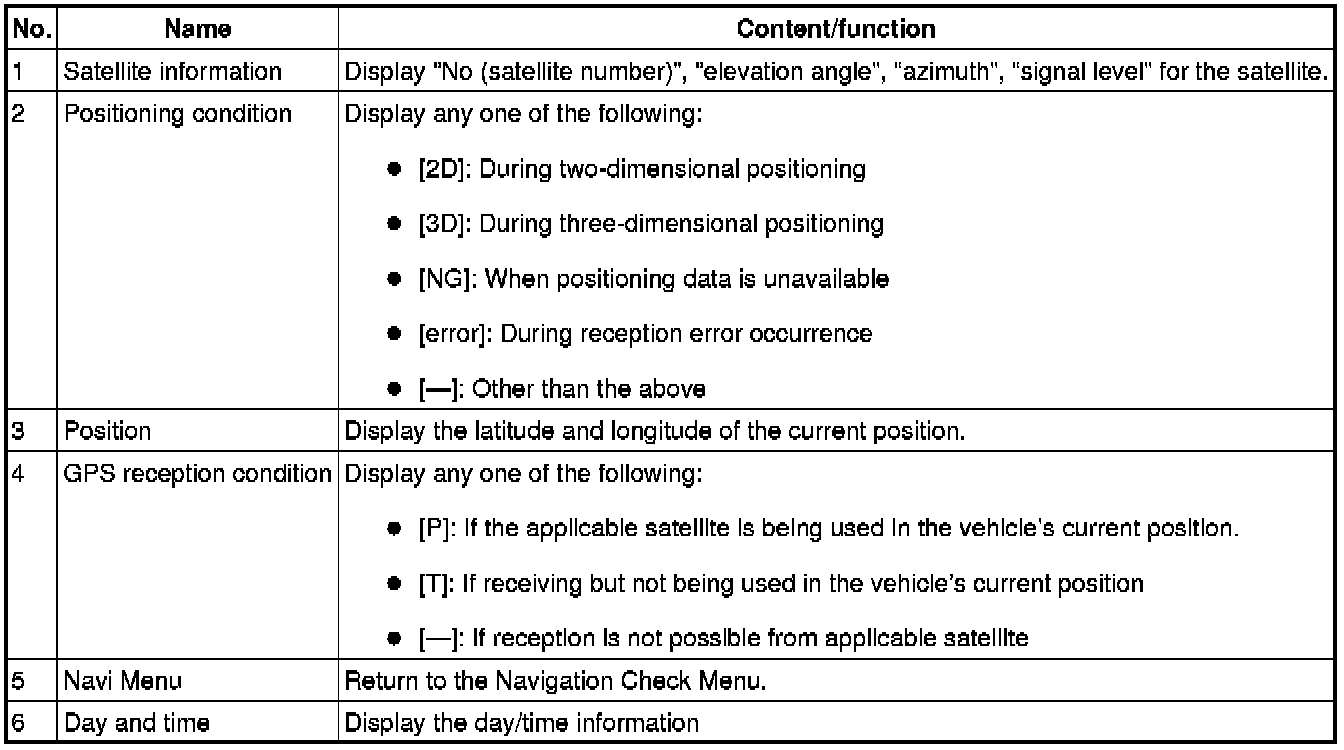

5. Verify the GPS information.
NOTE:
- The GPS reception signal is updated every 1 s.

6. To stop the on-board diagnostic mode, switch the ignition to off.

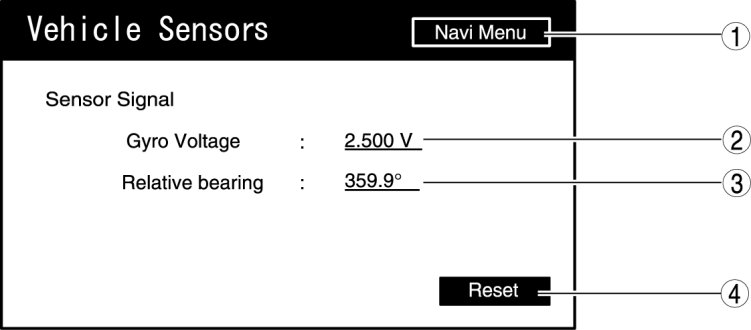

Vehicle Sensors

1. Switch the ignition to ACC or ON.

2. Launch the diagnostic mode. Starting Procedure For Diagnostic Mode [Car-Navigation System]

3. Select "Navigation Check".

4. Select "Vehicle Sensors".

5. Verify the sensor output condition of the sensor being input to the car navigation unit.
NOTE:
- The vehicle signal is updated every 1s.

6. To stop the on-board diagnostic mode, switch the ignition to off.

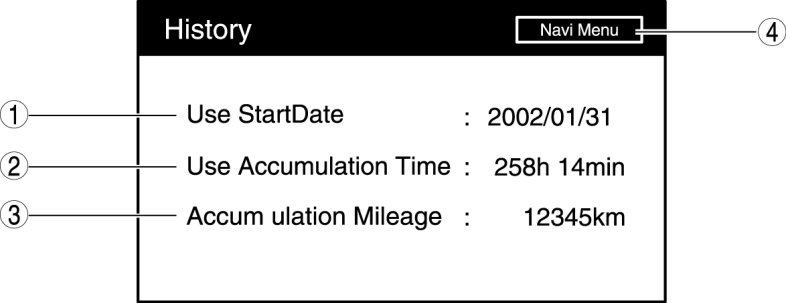

History

1. Switch the ignition to ACC or ON.

2. Launch the diagnostic mode. Starting Procedure For Diagnostic Mode [Car-Navigation System]

3. Select "Navigation Check".

4. Select "History".

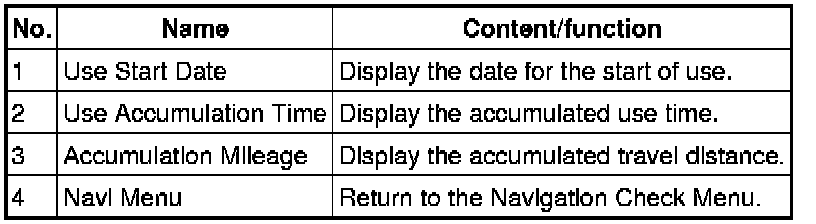

5. Verify the displayed content.

6. To stop the on-board diagnostic mode, switch the ignition to off.

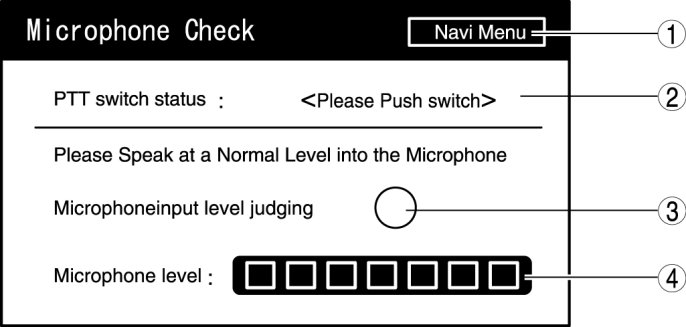

Microphone Check

1. Switch the ignition to ACC or ON.

2. Launch the diagnostic mode. Starting Procedure For Diagnostic Mode [Car-Navigation System]

3. Select "Navigation Check".

4. Select "Microphone Check".

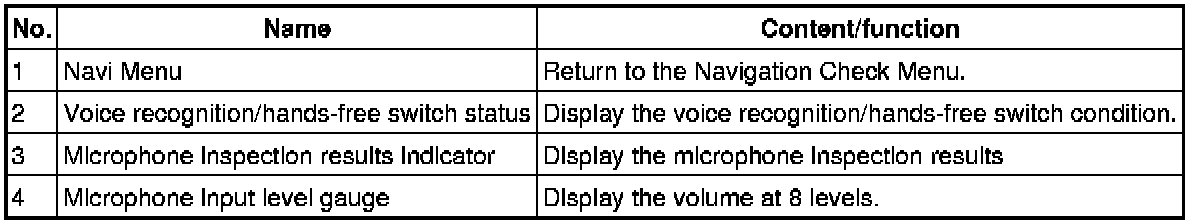

5. Verify the microphone input condition.

6. To stop the on-board diagnostic mode, switch the ignition to off.
