No.1 Car-Navigation System Does Not Start Operation. (Display Changes To Back.) [Car-Navigation System]




NO.1 CAR-NAVIGATION SYSTEM DOES NOT START OPERATION. (DISPLAY CHANGES TO BACK.) [CAR-NAVIGATION SYSTEM]

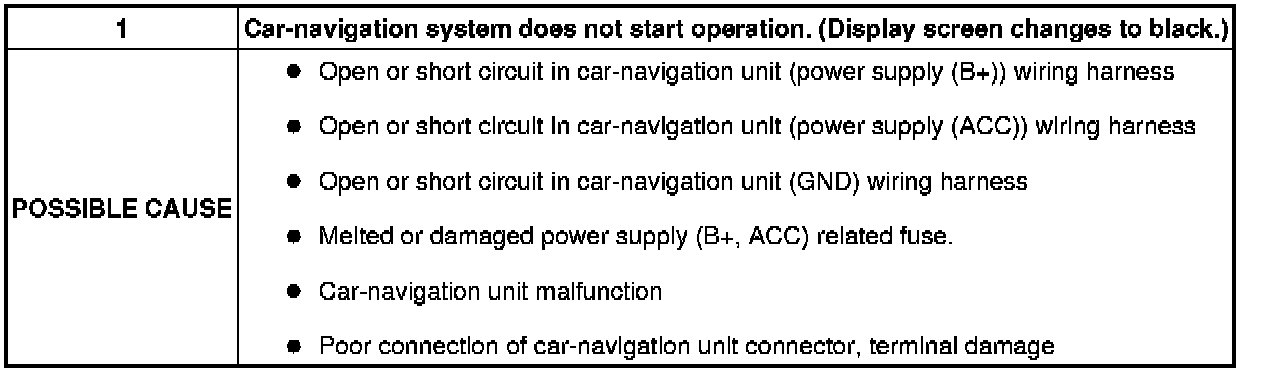

Possible Cause:

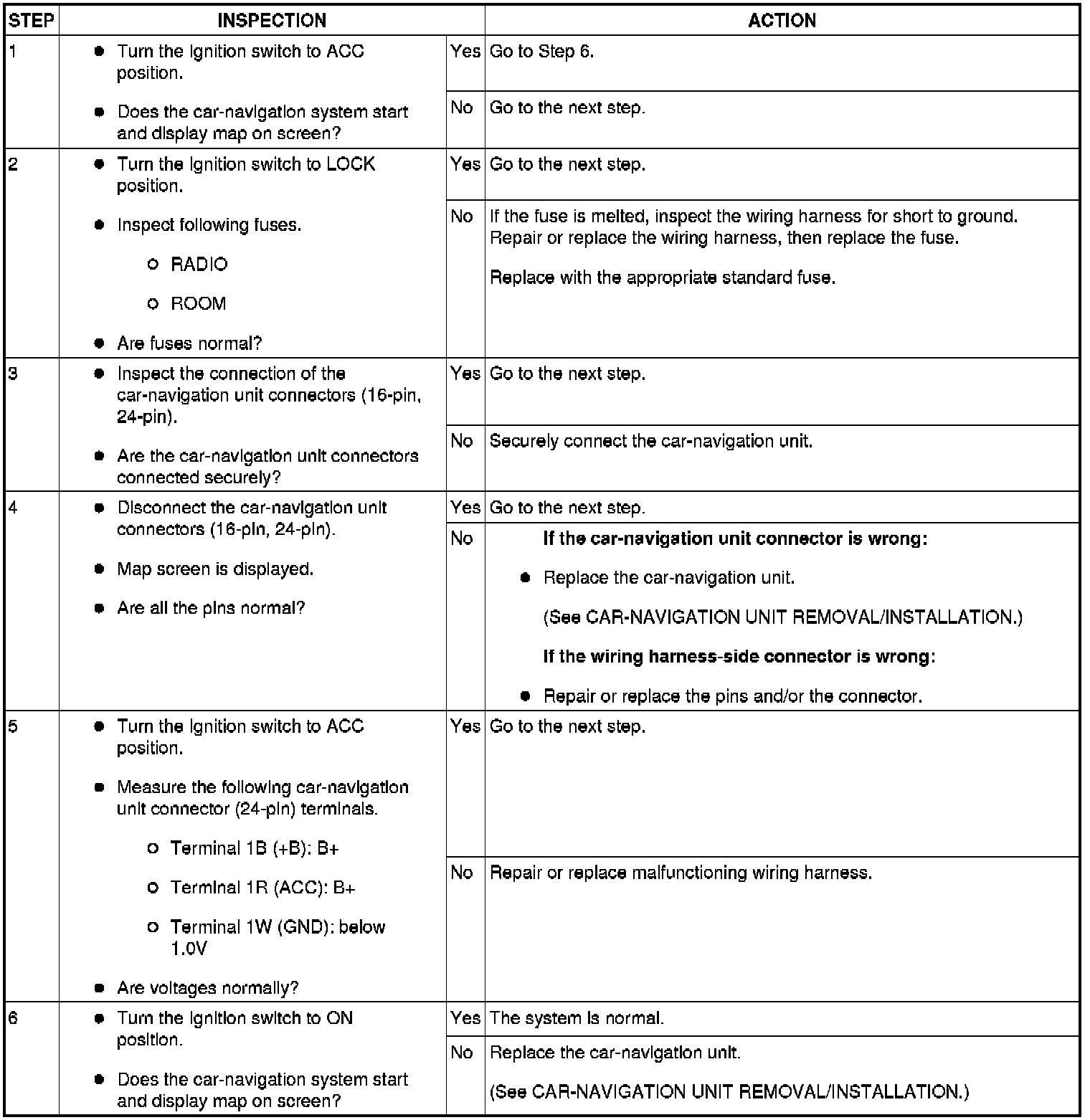

Diagnostic procedure

Step 1-Step 6:
