No.2 System Does Not Control Audio By Audio Control Switch. [Car-Navigation System]




NO.2 SYSTEM DOES NOT CONTROL AUDIO BY AUDIO CONTROL SWITCH. [CAR-NAVIGATION SYSTEM]

Possible Cause:

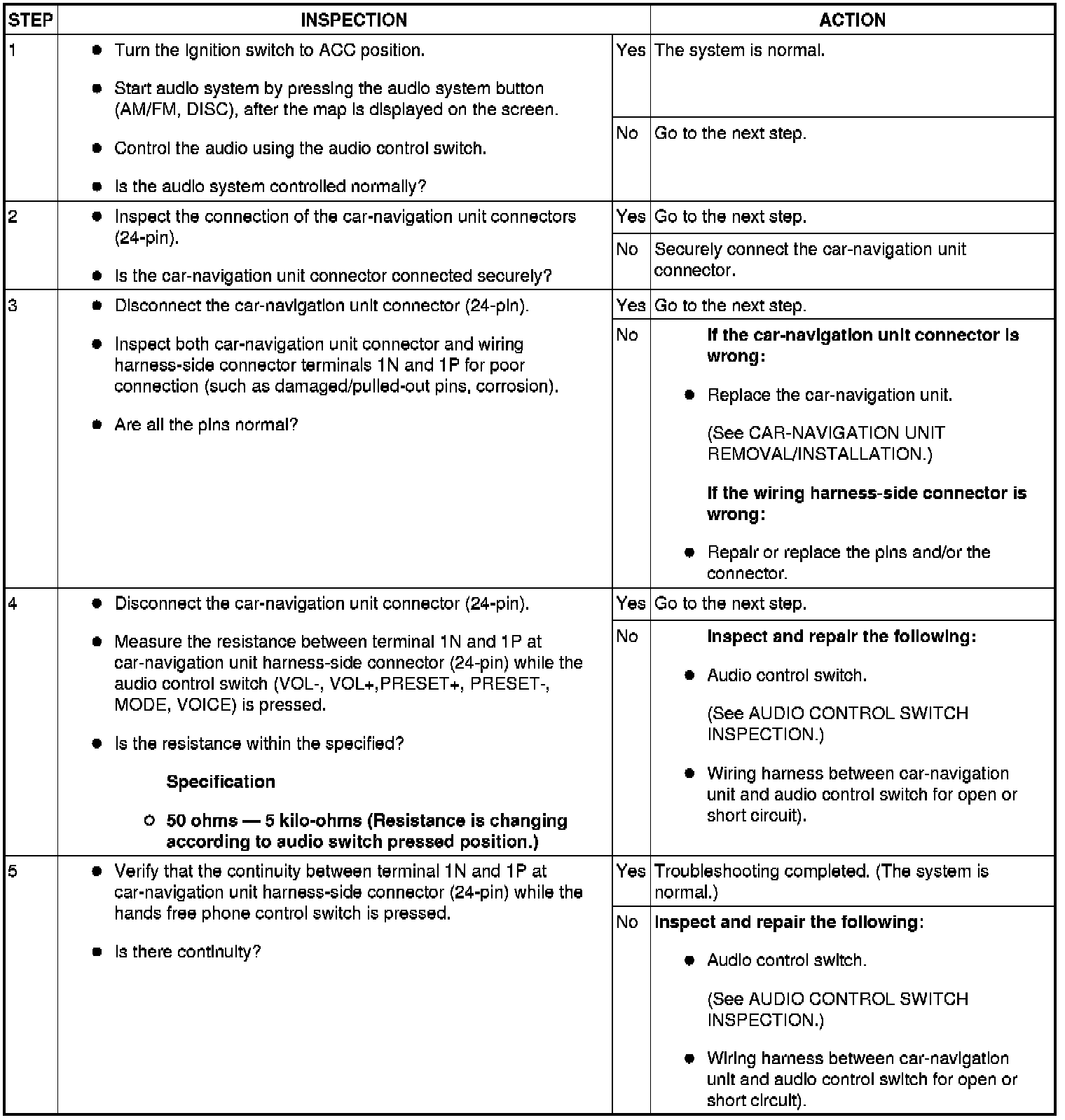

Diagnostic procedure

Step 1-Step 5:
