Power Door Lock Switch: Locations

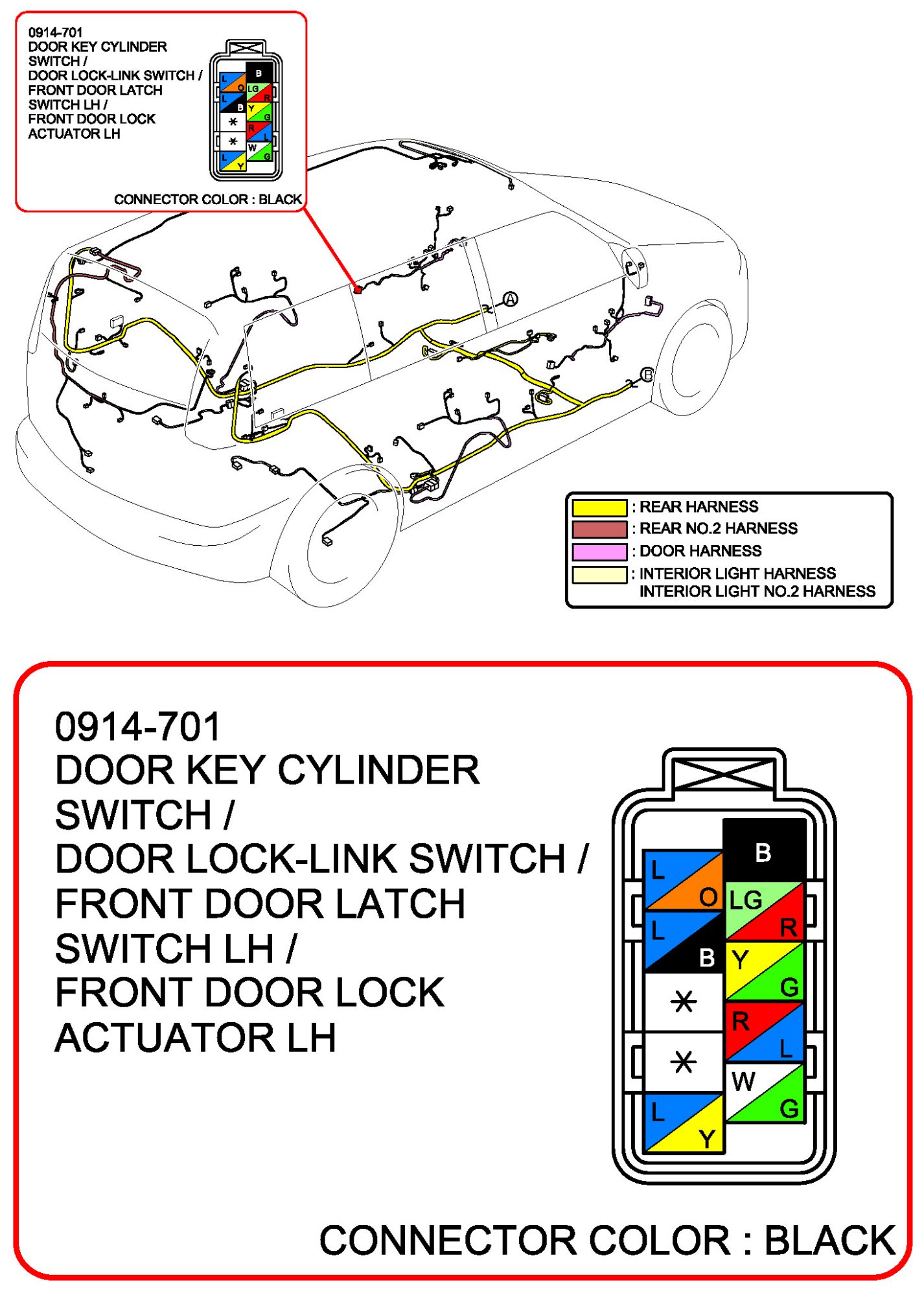

Door Key Cylinder Switch/Door Lock-Link Switch/Front Door Latch Switch LH/Front Door Lock Actuator LH:

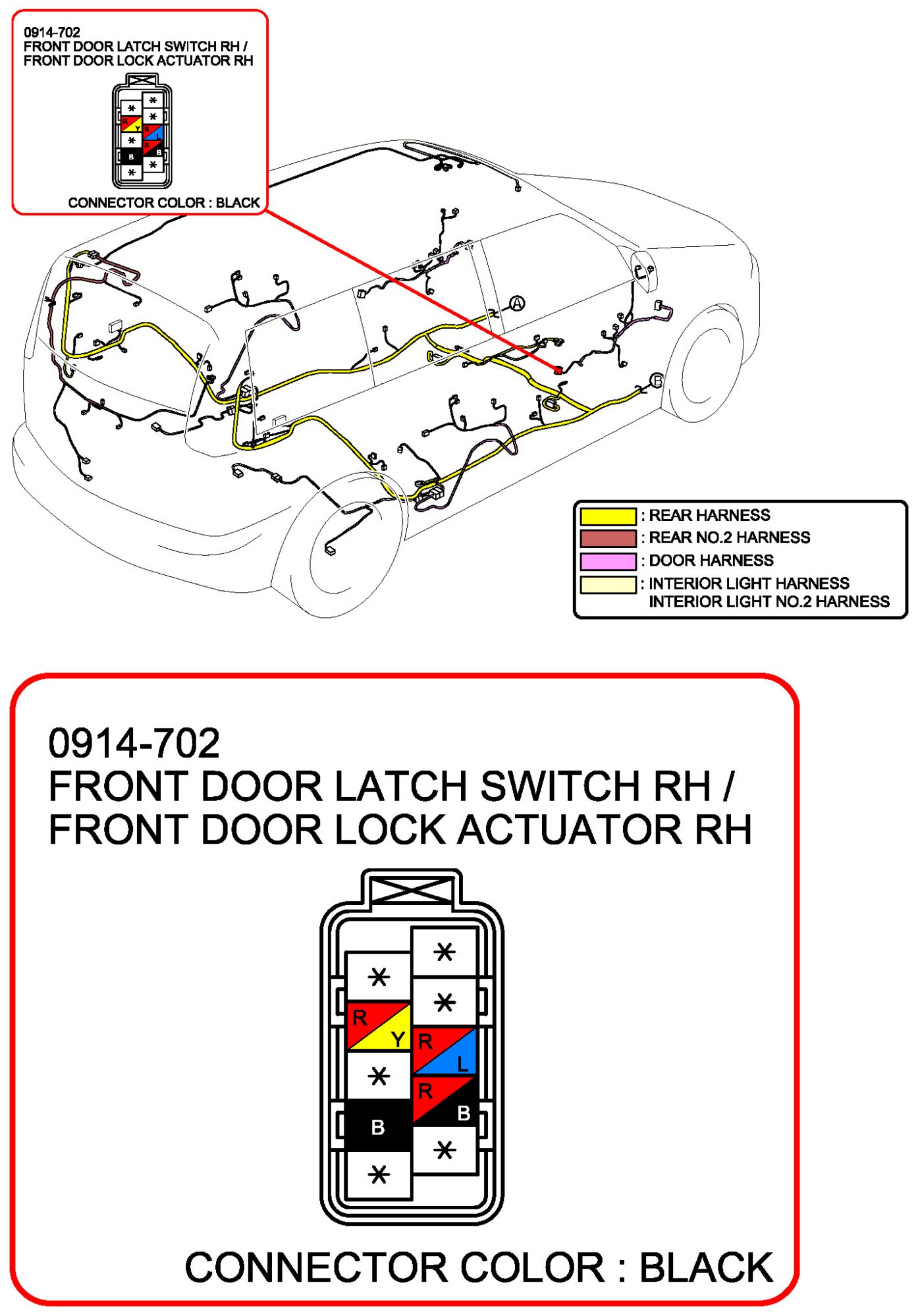

Front Door Latch Switch RH/Front Door Lock Actuator RH:



Door Lock-Link Switch LR:



Door Lock-Link Switch RR:



Door Lock Switch LH:



Door Lock Switch RH:
