Outer Mirror Glass Installation

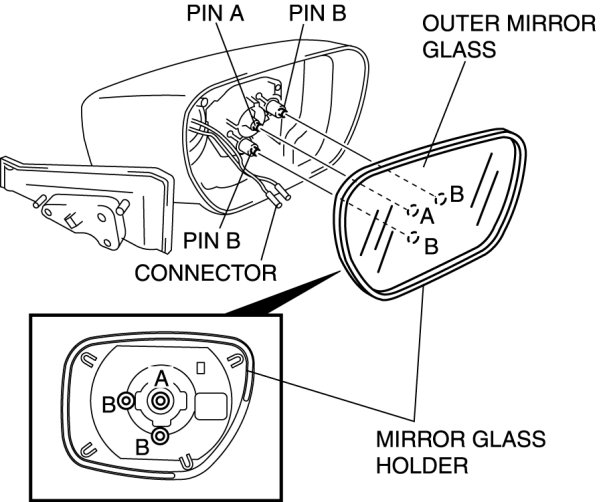

OUTER MIRROR GLASS INSTALLATION

1. Connect the connector. (vehicles with heated outer mirrors)

2. Press part A on the outer mirror glass and install pin A






3. Press part B on the outer mirror glass and install pins B.
