Seat Temperature Element: Testing and Inspection

SEAT WARMER UNIT INSPECTION

1. Remove the front seat. Front Seat Removal/Installation

2. Remove the seat cushion trim. Front Seat Disassembly/Assembly

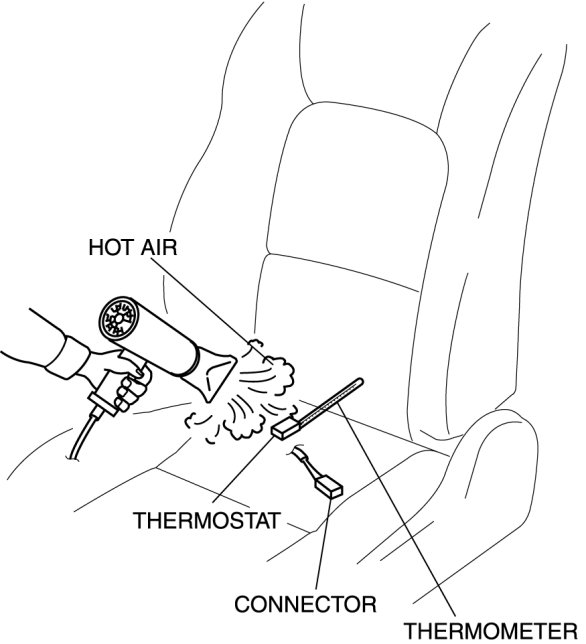

3. While inspecting for continuity between the terminals A and B of the connector, use a dryer to warm the thermostat of the seat warmer unit on seat cushion.

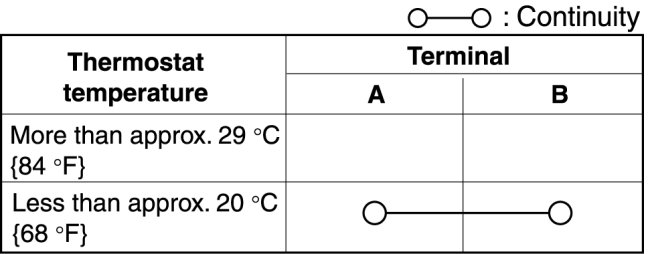

4. Verify that the continuity between the seat warmer terminals is as indicated in the table.






- If not as indicated in the table, replace the seat warmer unit.
