Sound Proofing / Insulation: Locations



DAMPING SHEET REPLACEMENT

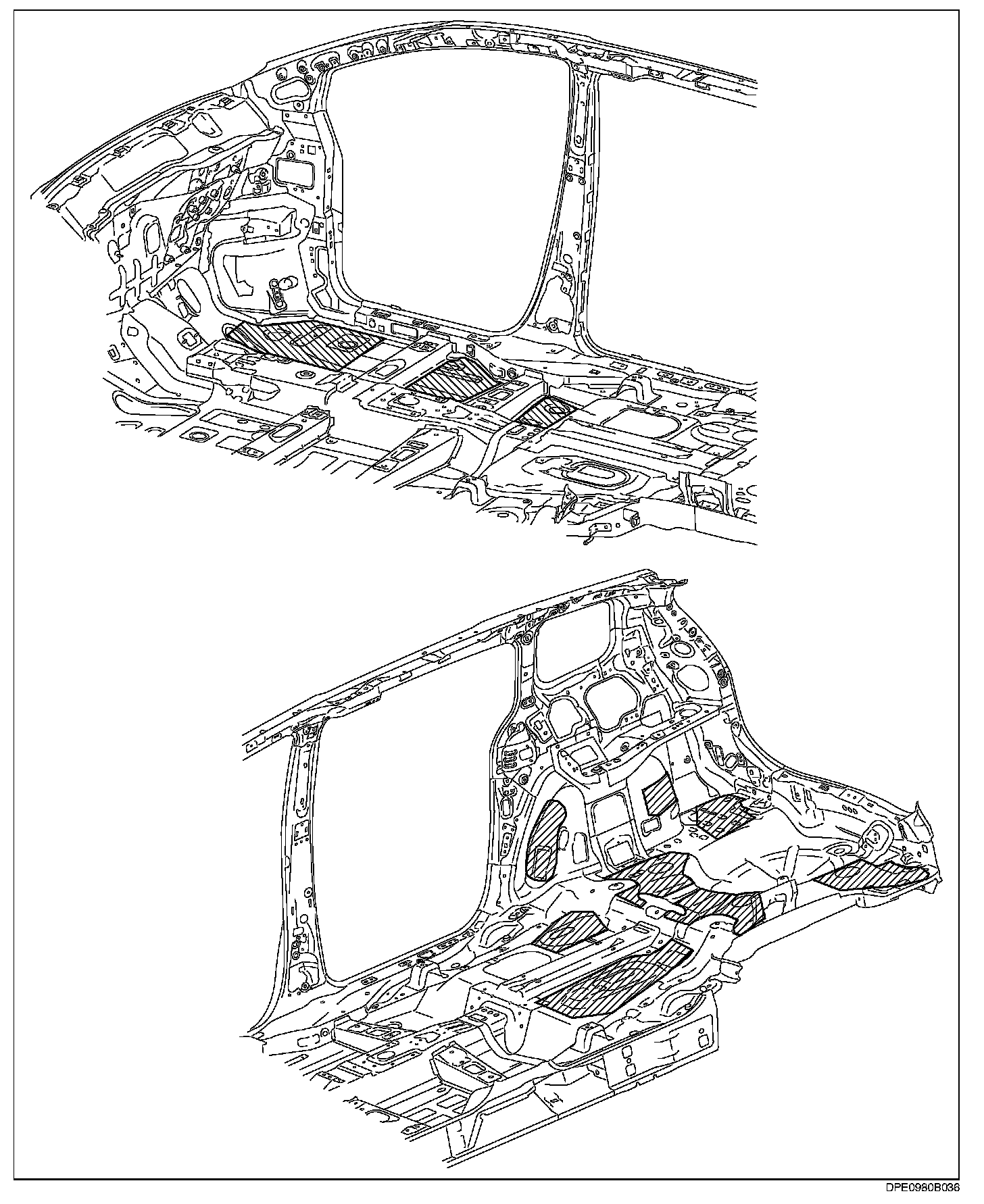

- After repairing the body, attach the damping sheet to the location shown in the figure for noise insulation.
