Power Window Main Switch/Power Outer Mirror Switch

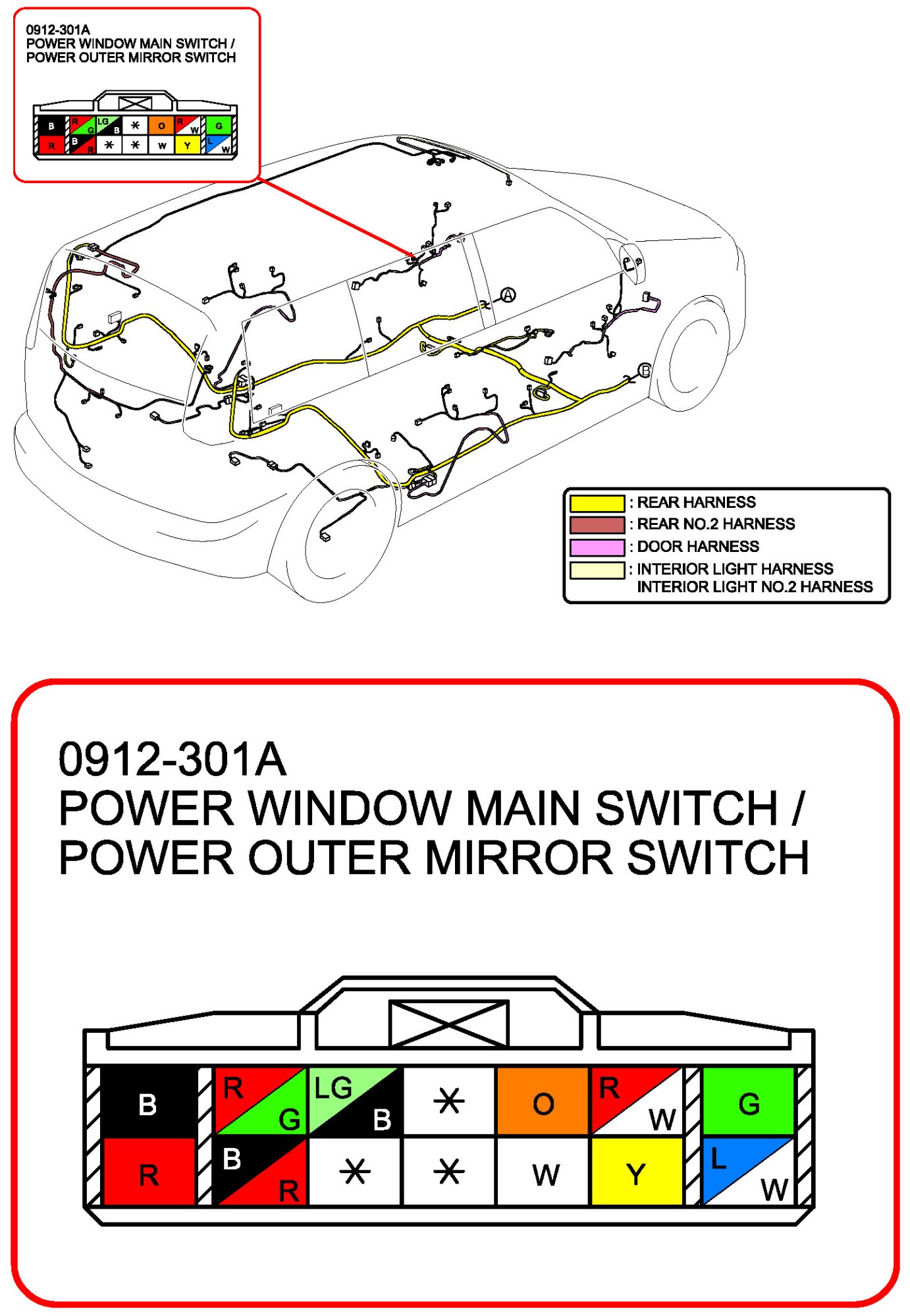

Power Window Main Switch/Power Outer Mirror Switch:

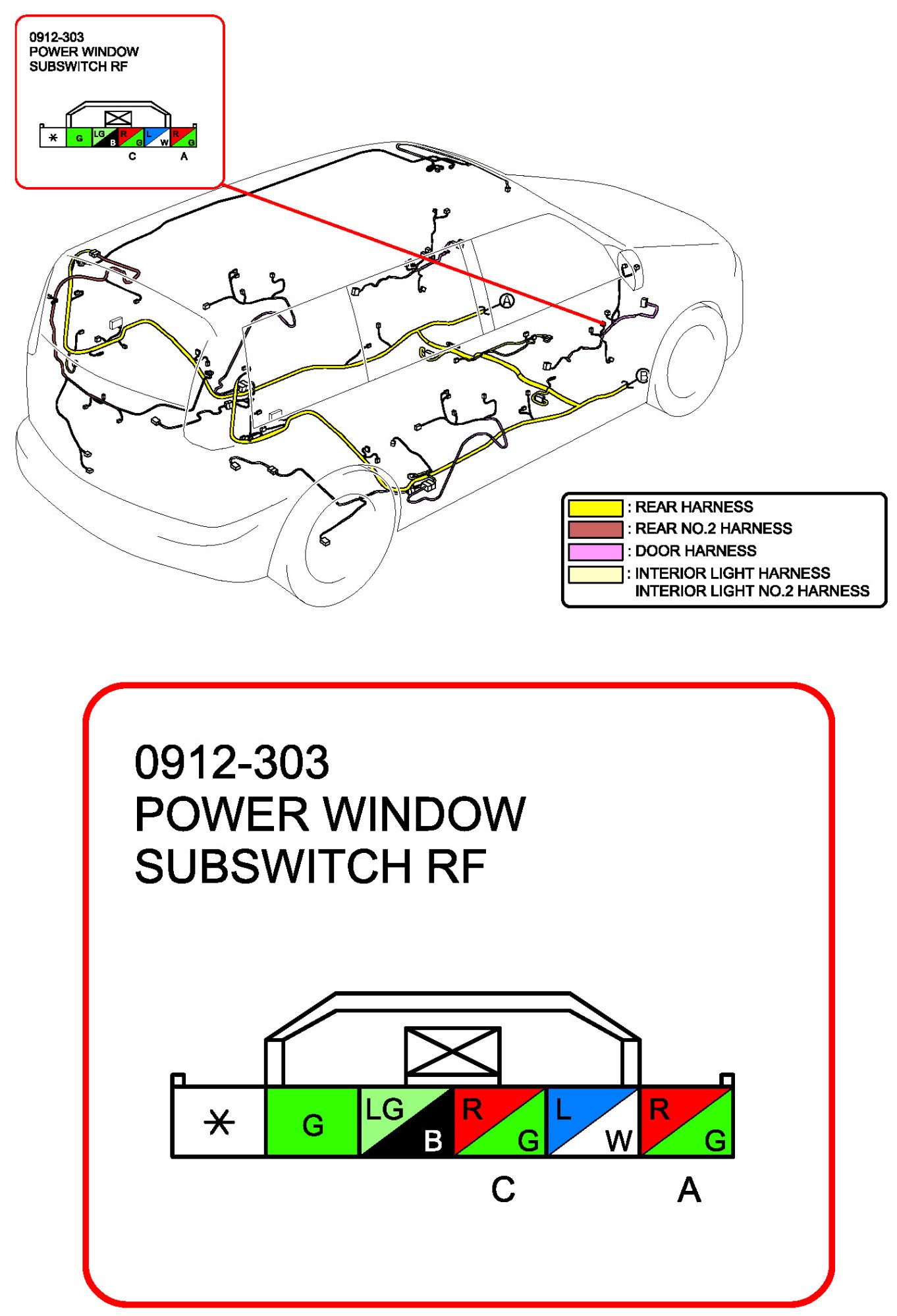

Power Window Subswitch RF:

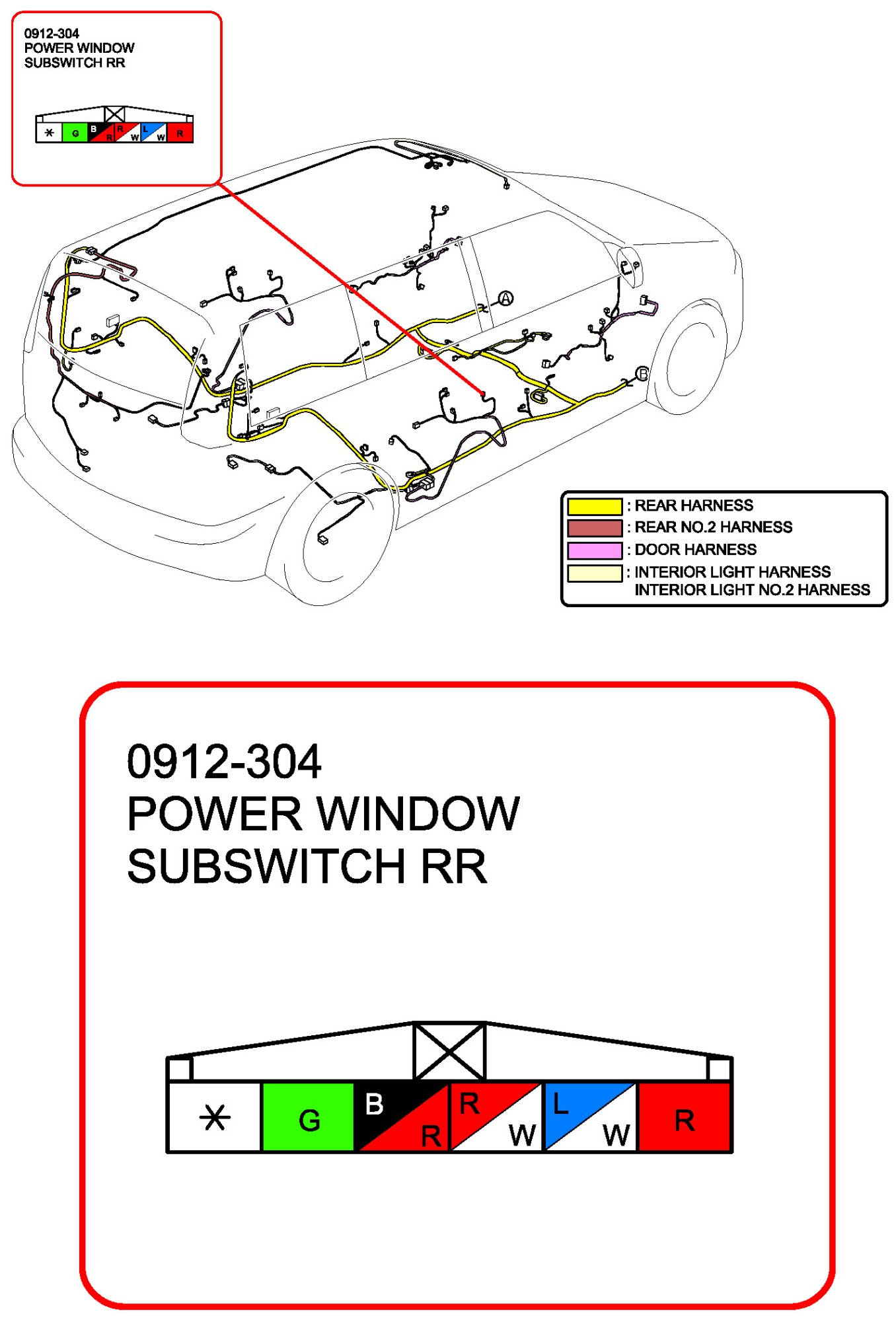

Power Window Subswitch RR:



Power Window Subswitch LR:
