Rear Speaker LH

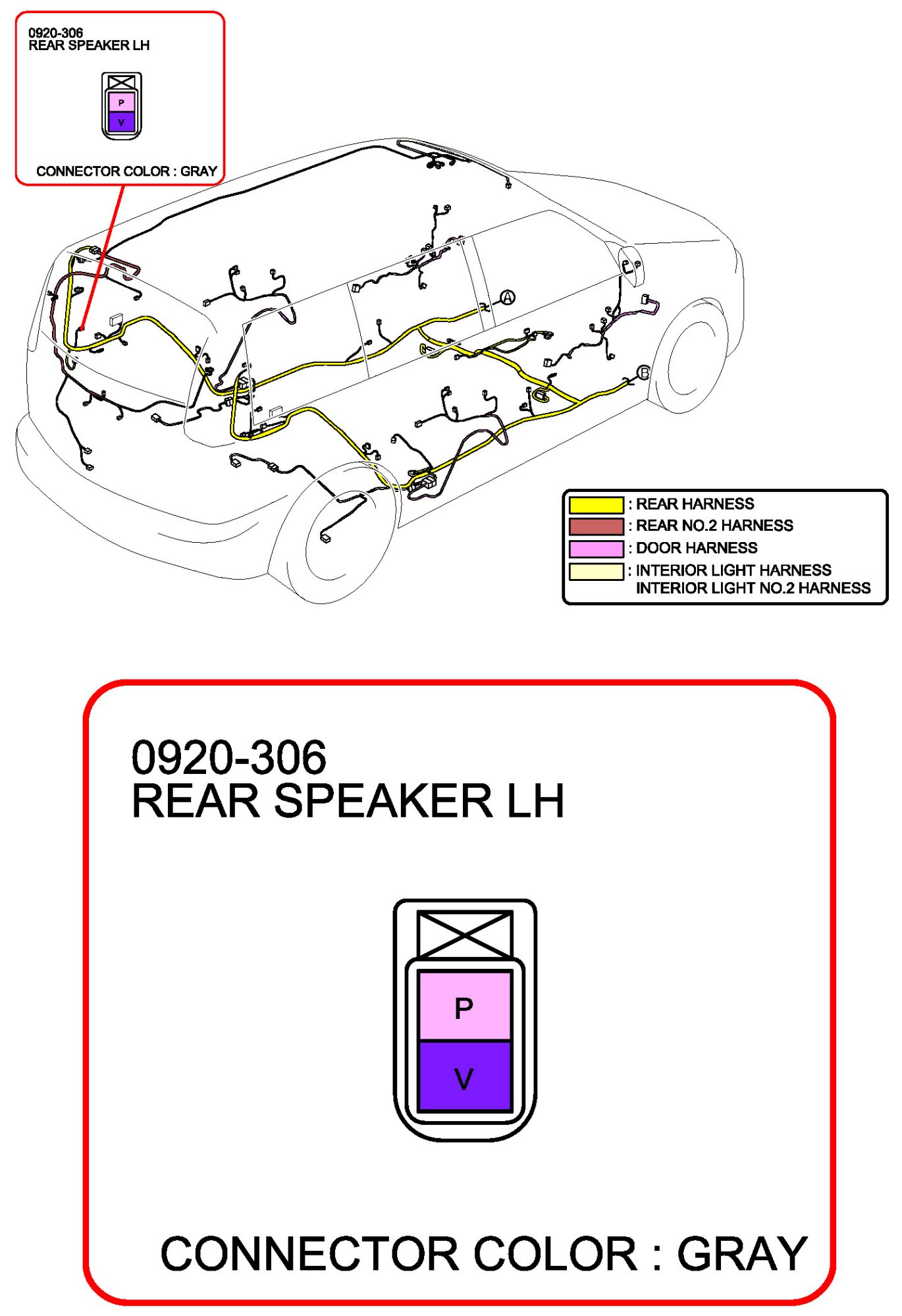

Rear Speaker LH (Audio System(Without Car Navigation System)):

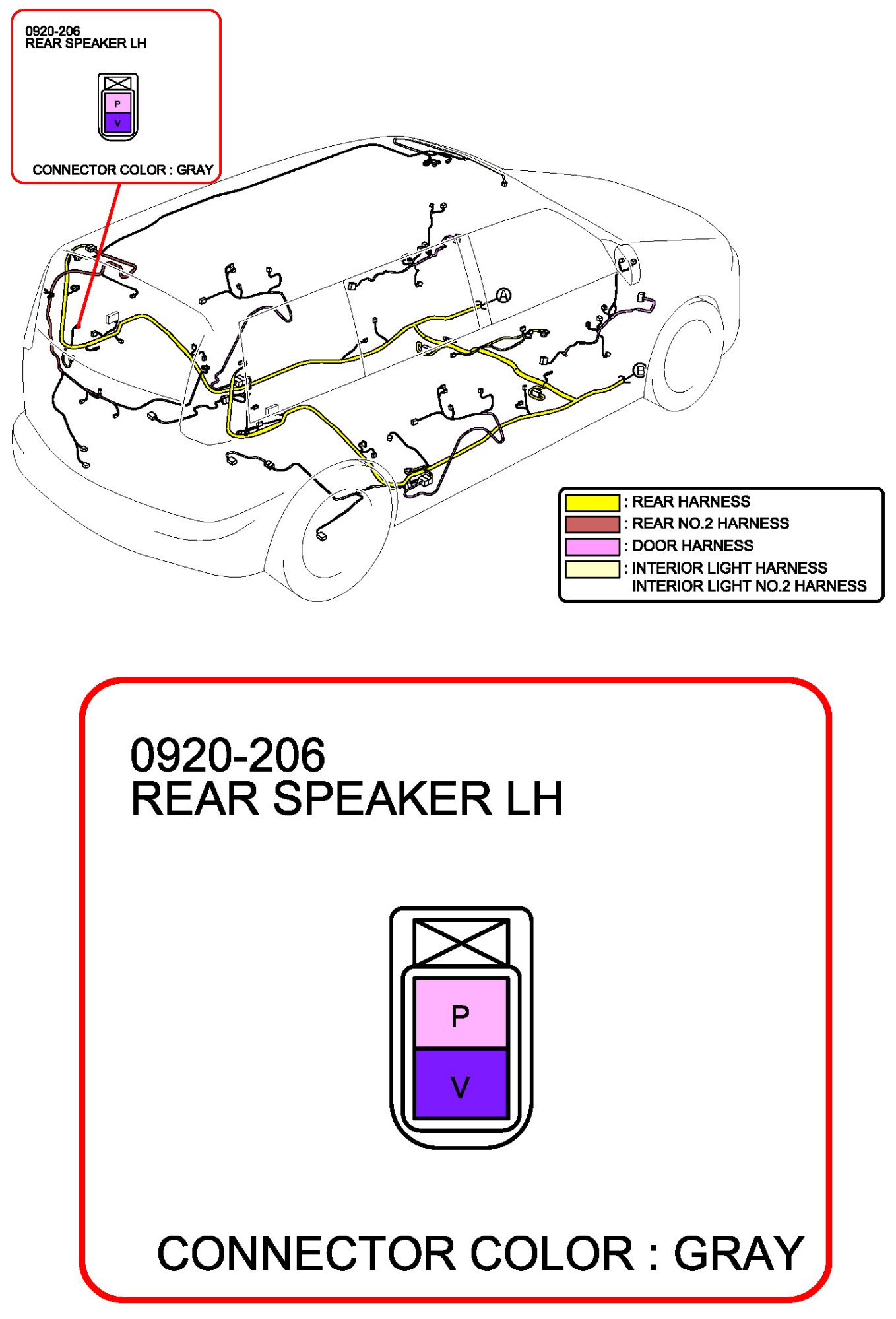

Rear Speaker LH (Audio System(With Car Navigation System)):
