Power Locks

Diagram 0914-7a:

Connectors 0914-7a:

Routing View 0914-7a:

Diagram 0914-7b:

Connectors 0914-7b:

Routing View 0914-7b:

Diagram 0914-7c:

Connectors 0914-7c:

Routing View 0914-7c:

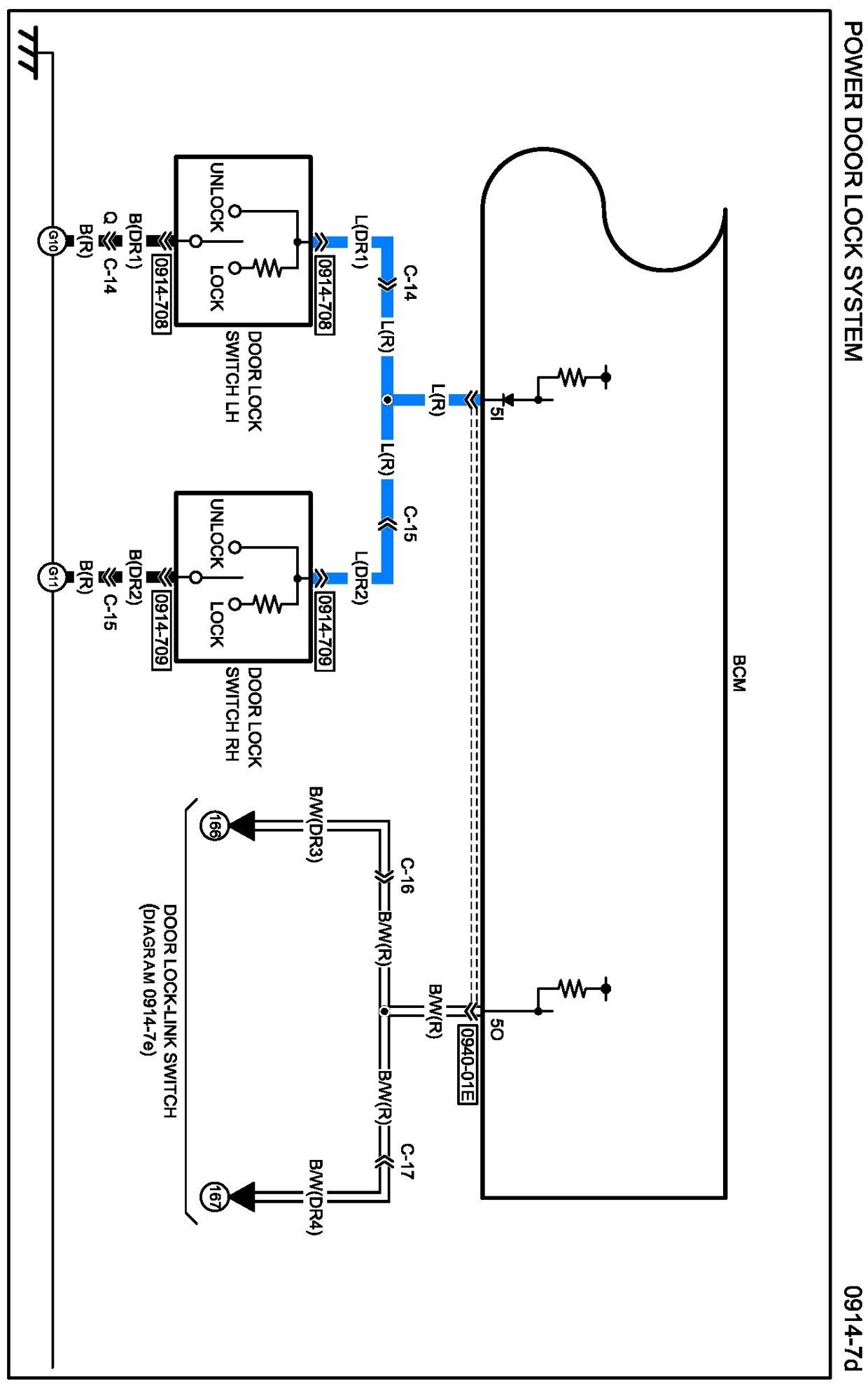

Diagram 0914-7d:

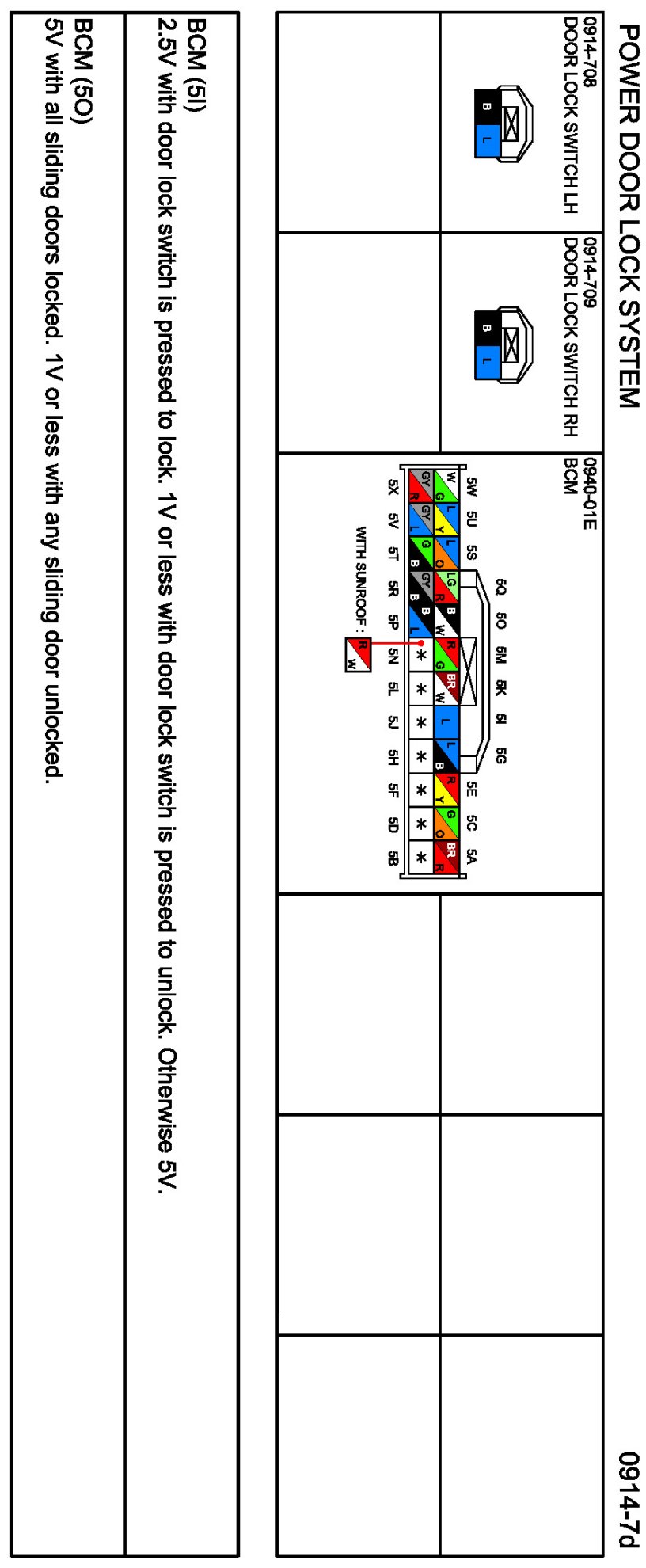

Connectors 0914-7d:

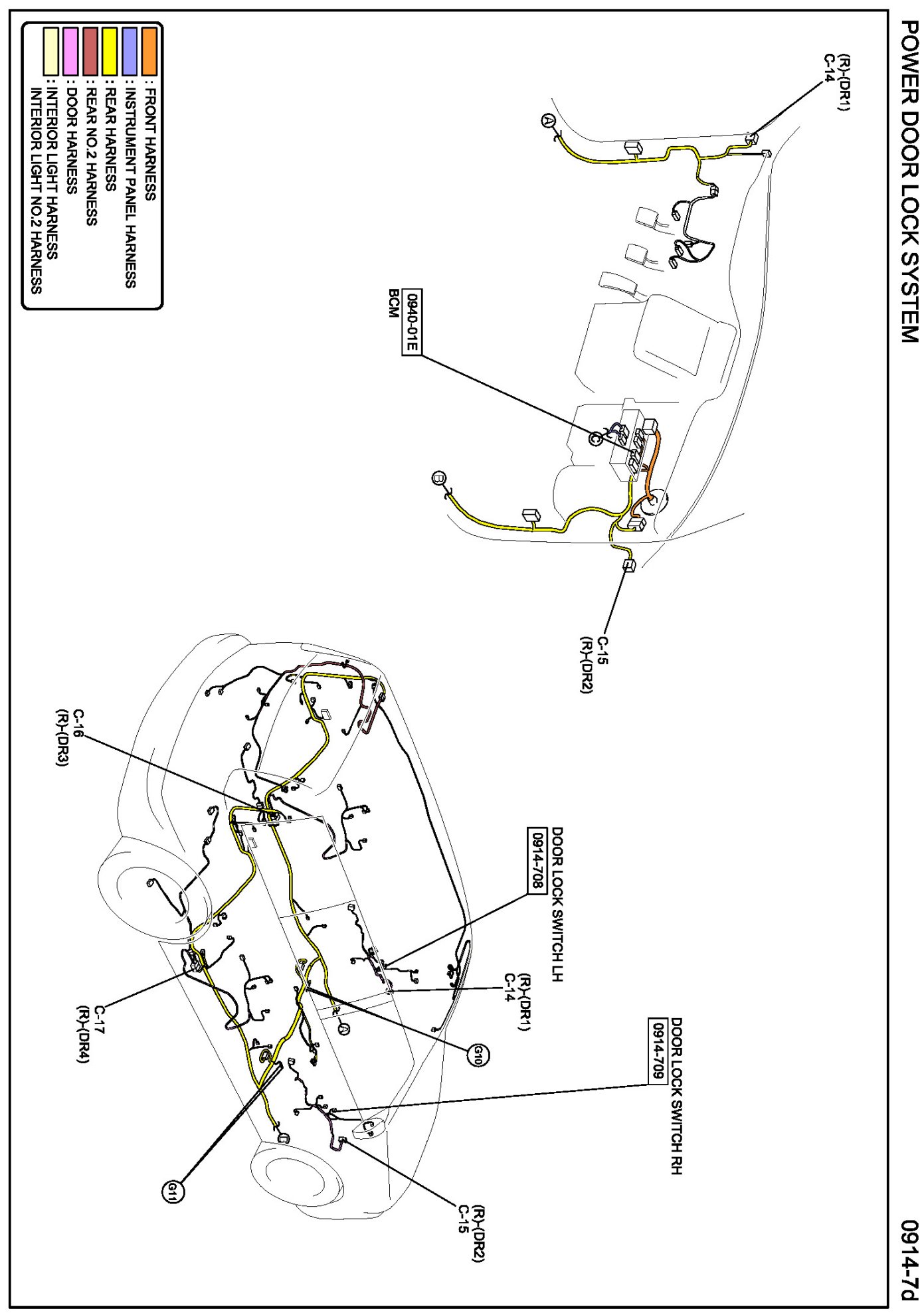

Routing View 0914-7d:

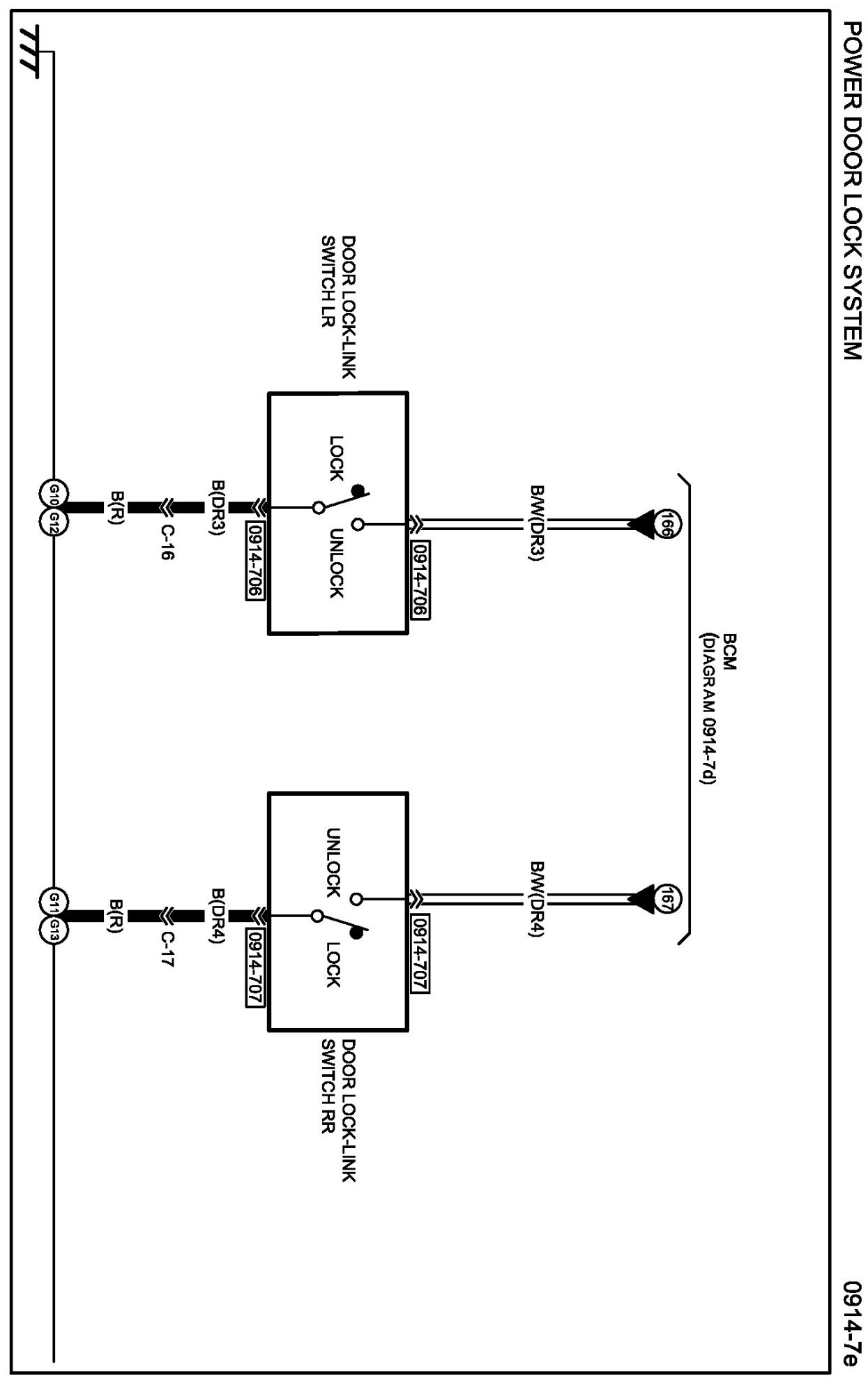

Diagram 0914-7e:

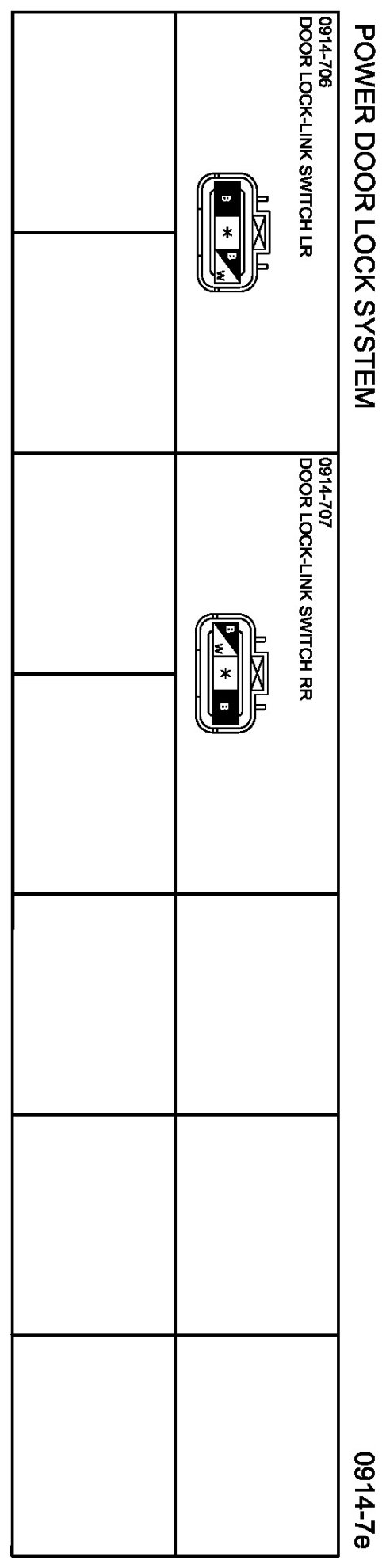

Connectors 0914-7e:

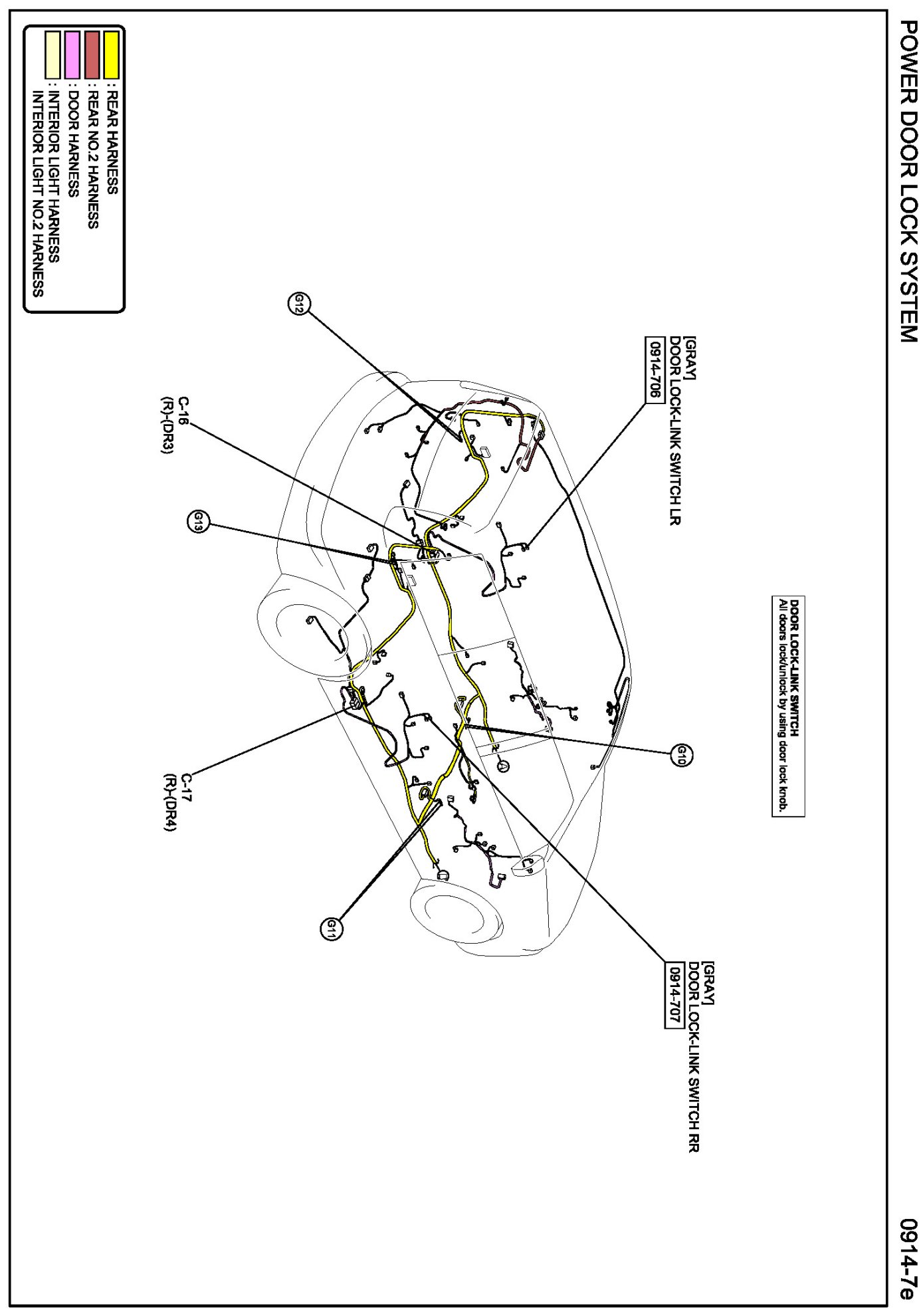

Routing View 0914-7e:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
