Blower Motor Resistor: Testing and Inspection

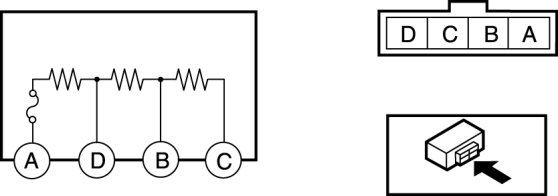

RESISTOR INSPECTION [MANUAL AIR CONDITIONER]

1. Verify that the resistance between the resistor terminals is as shown in the table.

- If there is any malfunction, replace the resistor.
