Computers and Control Systems: Description and Operation

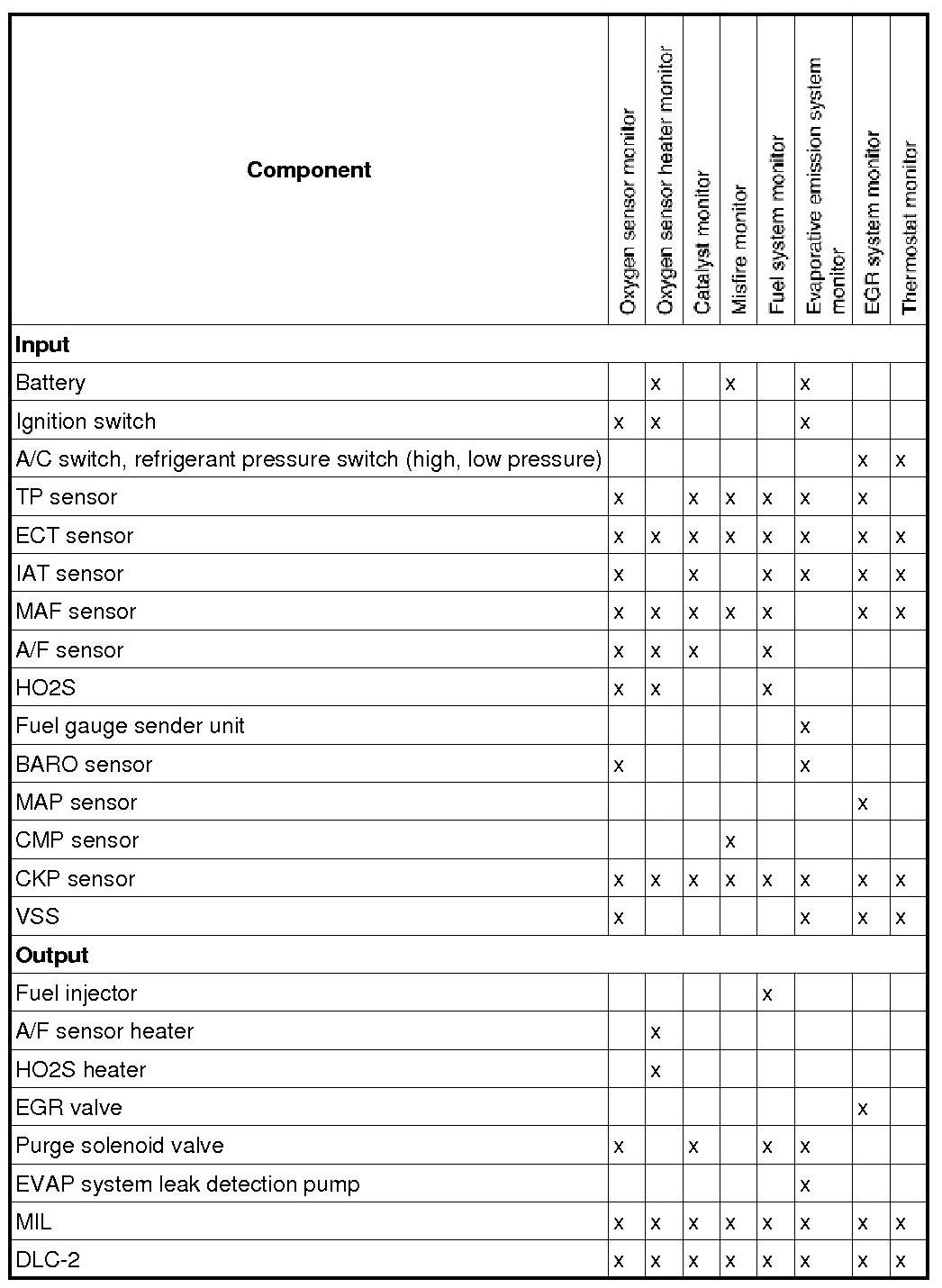

MONITORING SYSTEM AND CONTROL SYSTEM DEVICE RELATIONSHIP CHART [L3]
x: Applicable
