Flywheel

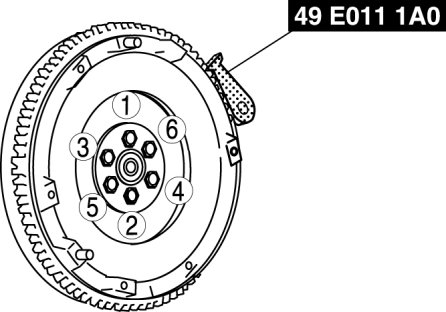

Gradually tighten the
flywheel
lock bolts in a crisscross pattern.
Tightening torque
108-116 Nm {11.1-11.8 kgf-m, 79.7-85.5 ft-lbf}
