RX-8 Audio Unit Software Programming Tool Connection Procedure

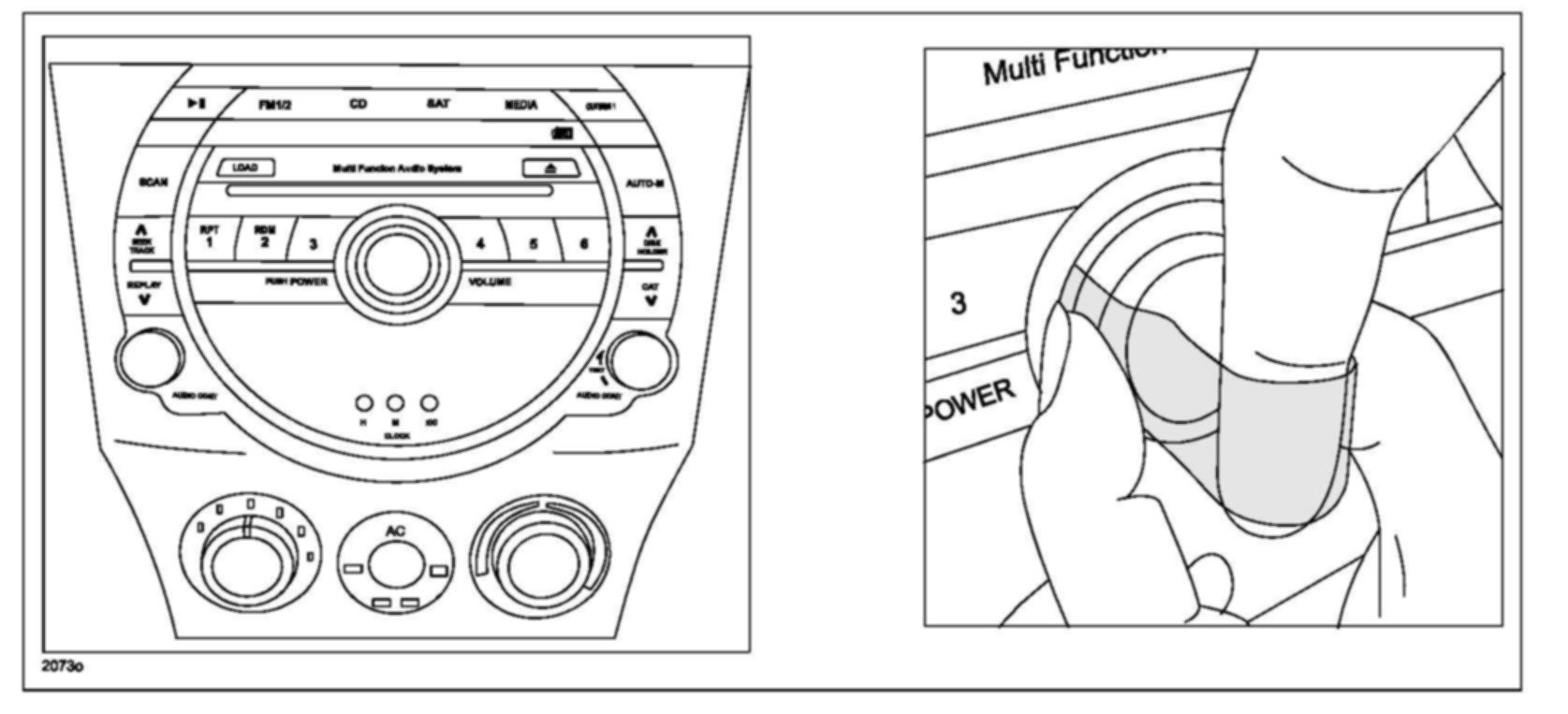

1. Remove the center knob by pulling out using a firm grip, or by using tape as shown.

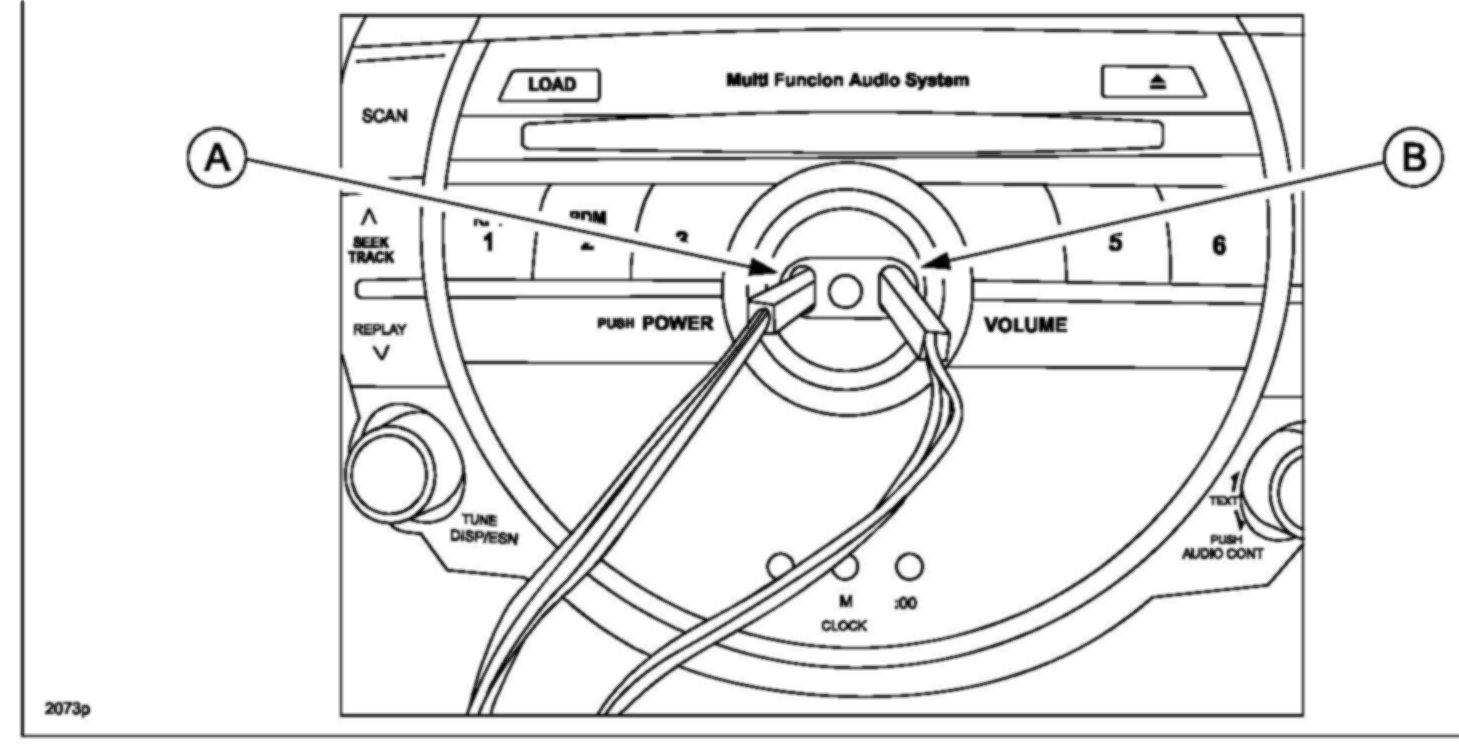

2. Connect the Audio Unit Software Programming Tool connectors.

a. Connect the 4P connector with blue/red/white wires into the left connector (A) under the removed knob.

b. Connect the 4P connector with red/white wires into the right connector (B) under the removed knob.
