Key Interlock Solenoid Inspection

KEY INTERLOCK SOLENOID INSPECTION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the battery duct. Removal and Replacement

4. Remove the column cover. Service and Repair

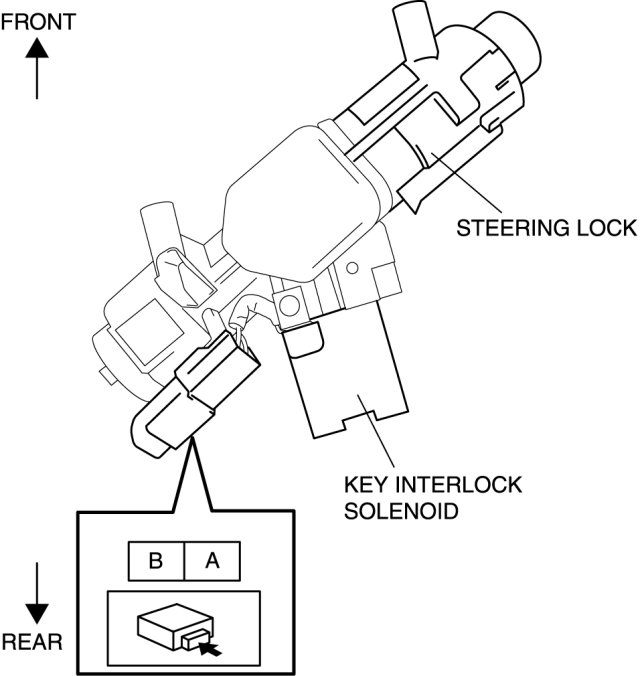

5. Disconnect the key interlock solenoid connector.

6. Verify the continuity between terminals A and B.






- If there is any malfunction, replace the steering lock. Service and Repair
