Overhaul

WINDSHIELD WIPER MOTOR DISASSEMBLY/ASSEMBLY

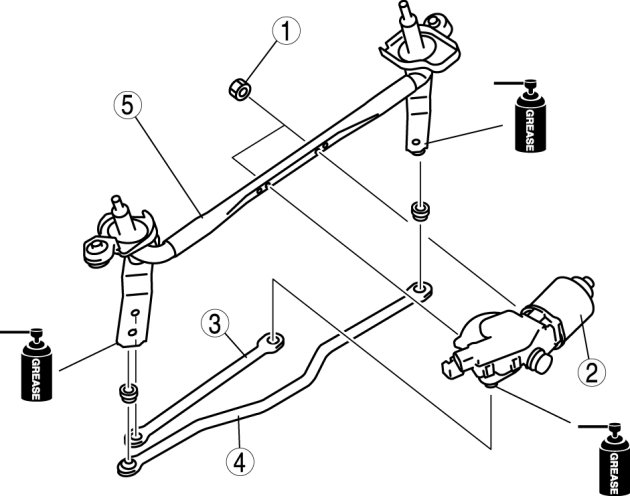

1. Disassemble in the order indicated in the table.










2. Assemble in the reverse order of disassembly.

Ball Joint Assembly Note

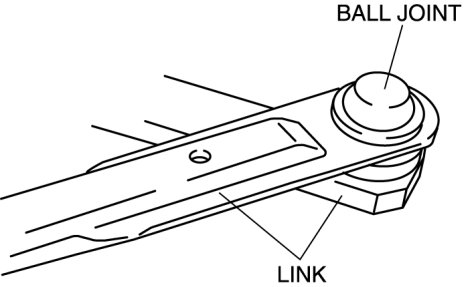

1. Use a clean rag to protect the link, and squeeze using pliers.






Windshield Wiper Motor Assembly Note

1. Connect the windshield wiper motor to the vehicle wiring harness connector, operate the windshield wipers, and then stop them at the auto-stop position.

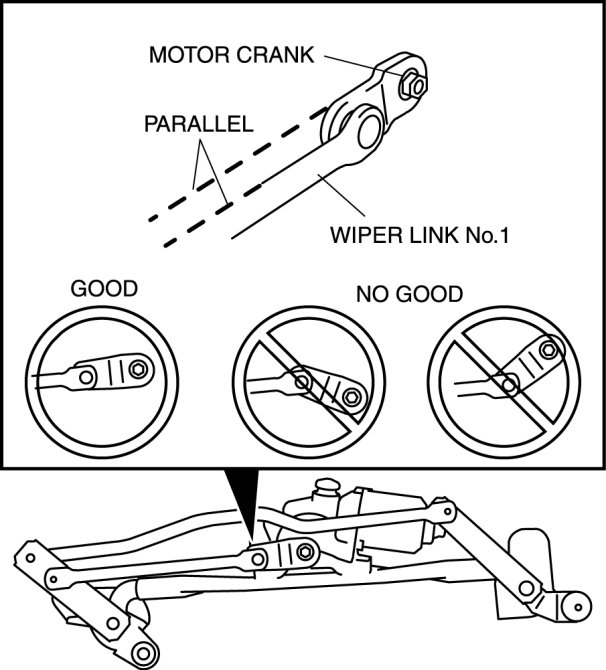

2. Adjust the motor crank, wiper link No.1, and wiper link No.2 so that they are parallel as shown in the figure.






3. Assemble the windshield wiper motor.
