Car-Navigation Unit Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the following parts:
1. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
2. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
3. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
Remove the car-navigation unit installation bolt.
Tightening torque

8-10 N.m {80-110 kgf.cm, 70-95 in.lbf}

Fig 1: Locating Car-Navigation Unit Installation Bolt
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.

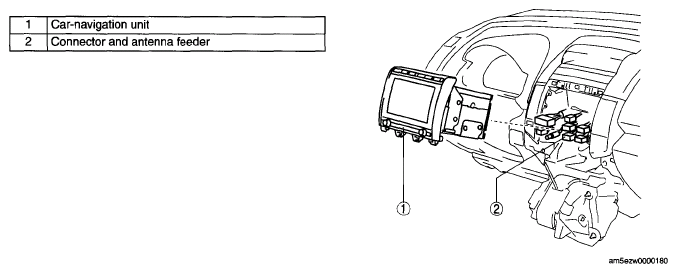

Fig 2: Identifying Car-Navigation Unit , Connector And Antenna Feeder
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
