Center Panel Module Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  3. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

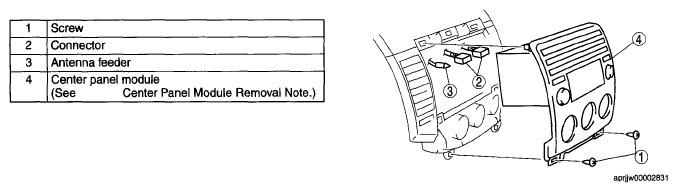

    Fig 1: Identifying Center Panel Module Remove/Install Components
    G05543560Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
    CAUTION:
    • When installing the center panel module, make sure that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the wiring harness or the antenna feeder is caught between the unit and dashboard, it may cause malfunctions.
