Keyless Entry System And Immobilizer System

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

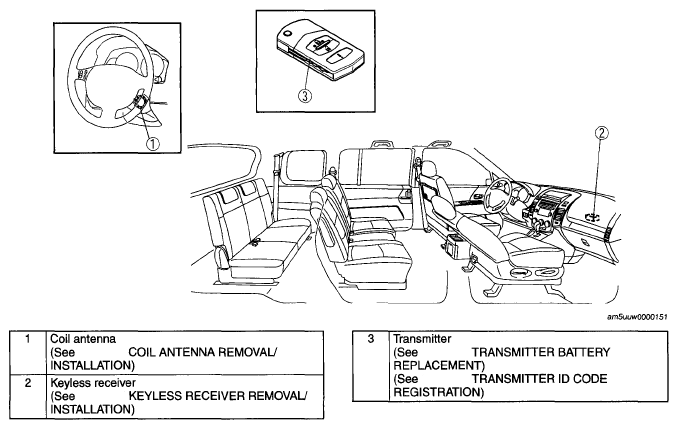

Fig 1: Identifying Keyless Entry System And Immobilizer System
G05543460Courtesy of MAZDA MOTORS CORP.
