On-Board Diagnostic Wiring Diagram [Advanced Keyless Entry And Push Button Start System]

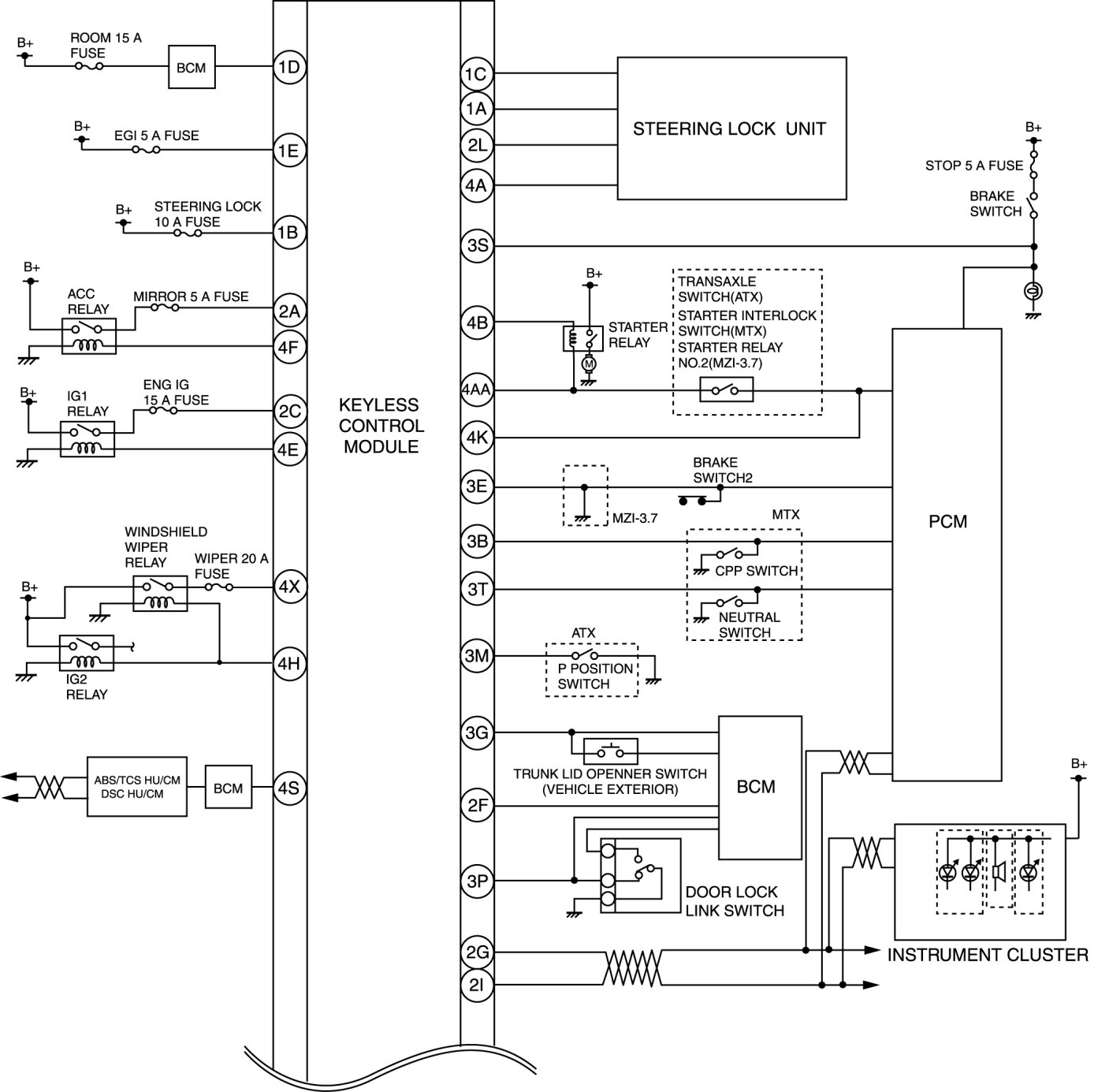

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
