No.3 System Does Not Load Map Disc. [Car-Navigation System]




NO.3 SYSTEM DOES NOT LOAD MAP DISC. [CAR-NAVIGATION SYSTEM]

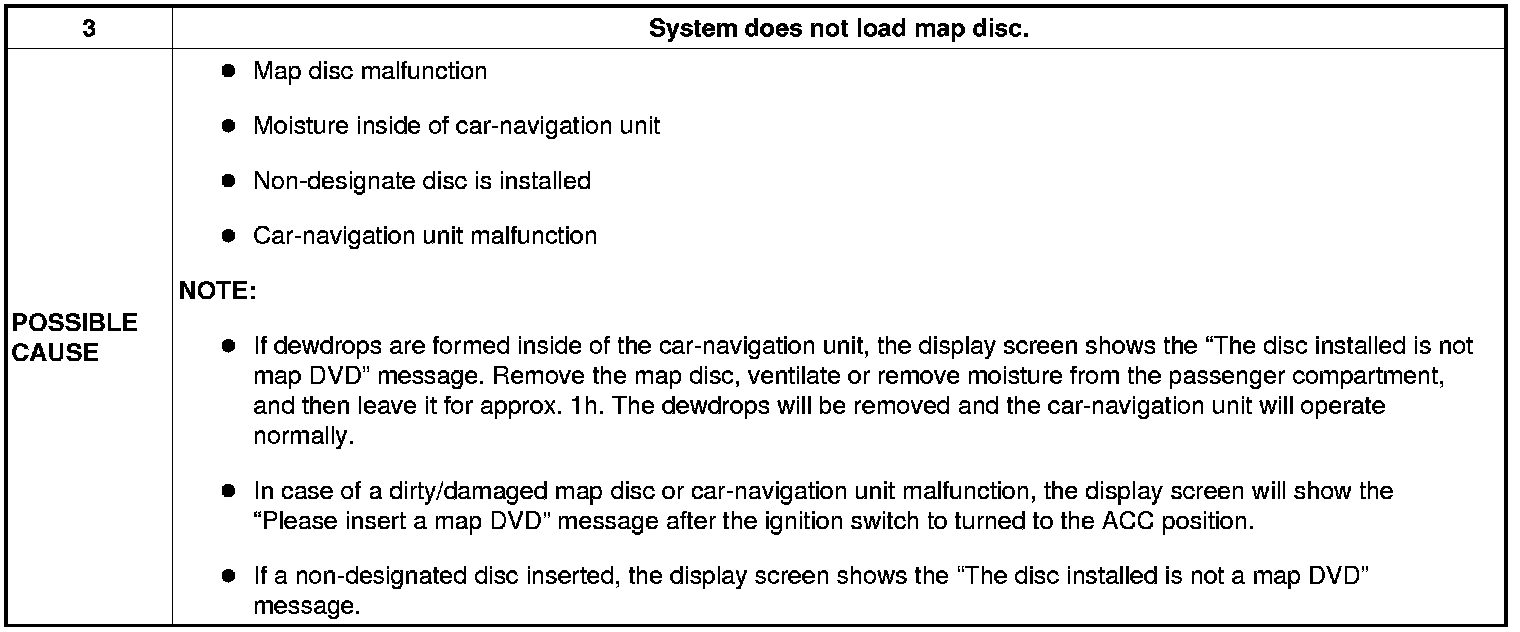

Possible Cause:





Diagnostic procedure

Step 1-Step 3:
