Instrumental Panel Harness-Short Cord

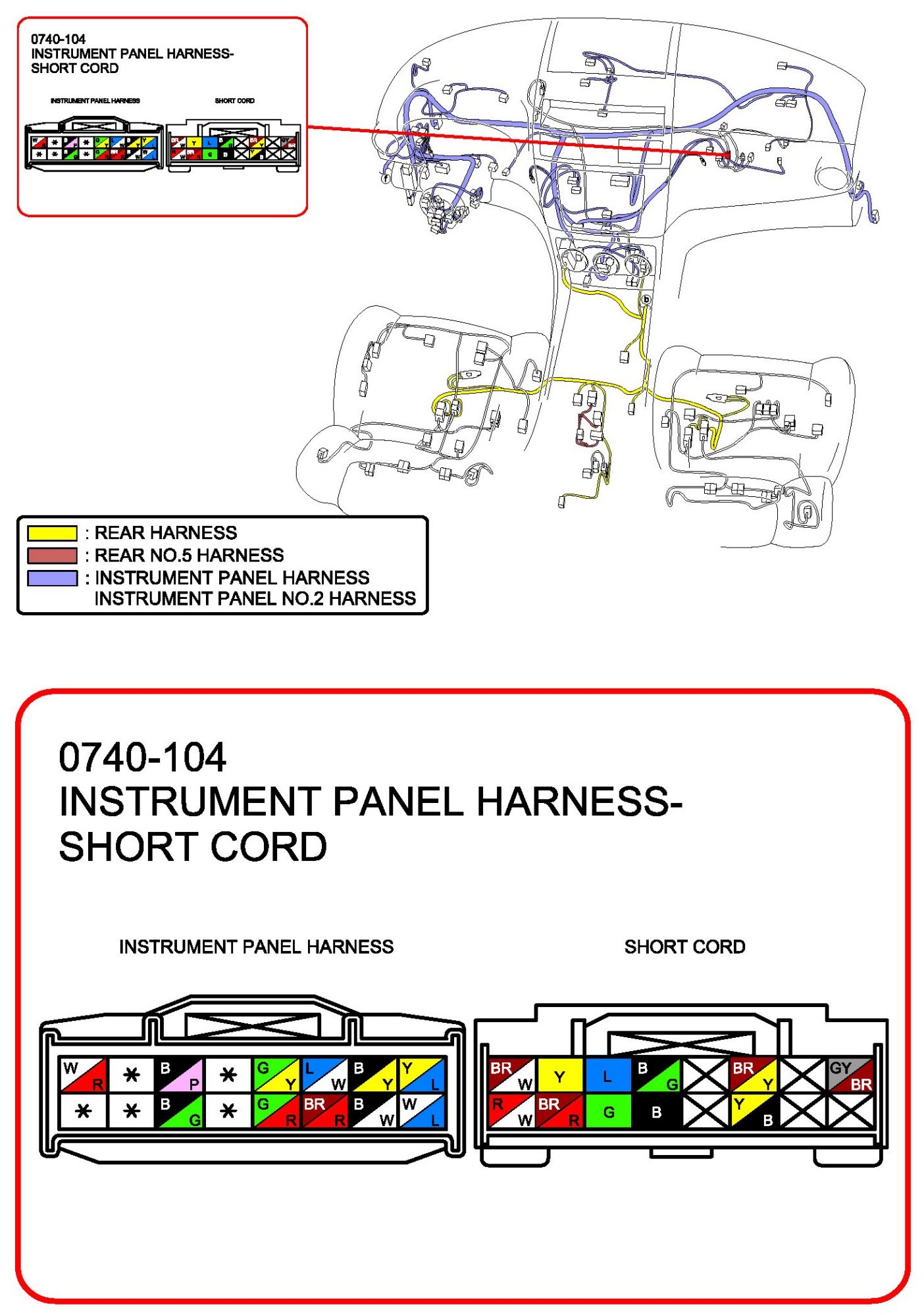

Instrumental Panel Harness-Short Cord (Manual A/C):

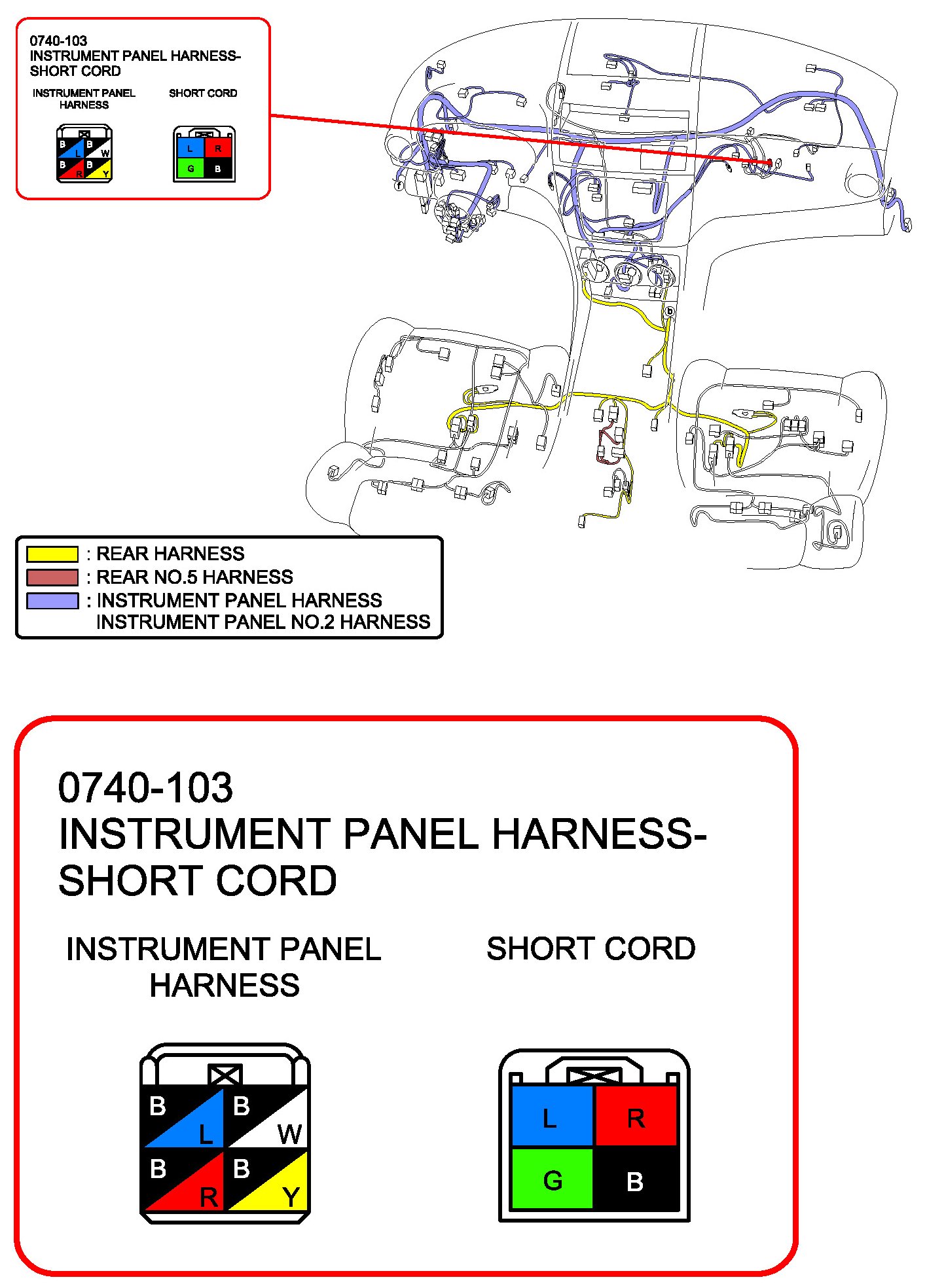

Instrumental Panel Harness-Short Cord (Manual A/C):

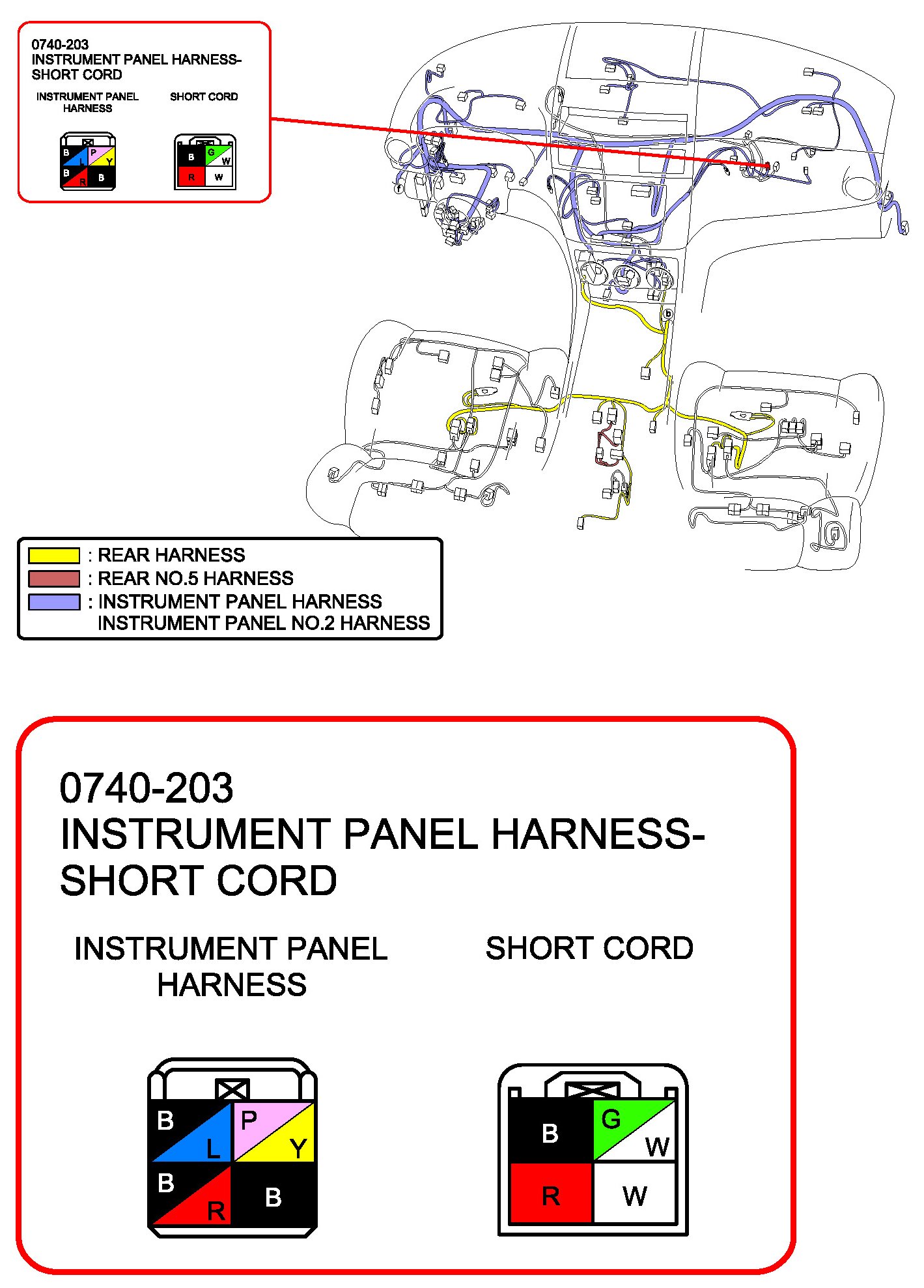

Instrumental Panel Harness-Short Cord (Auto A/C):

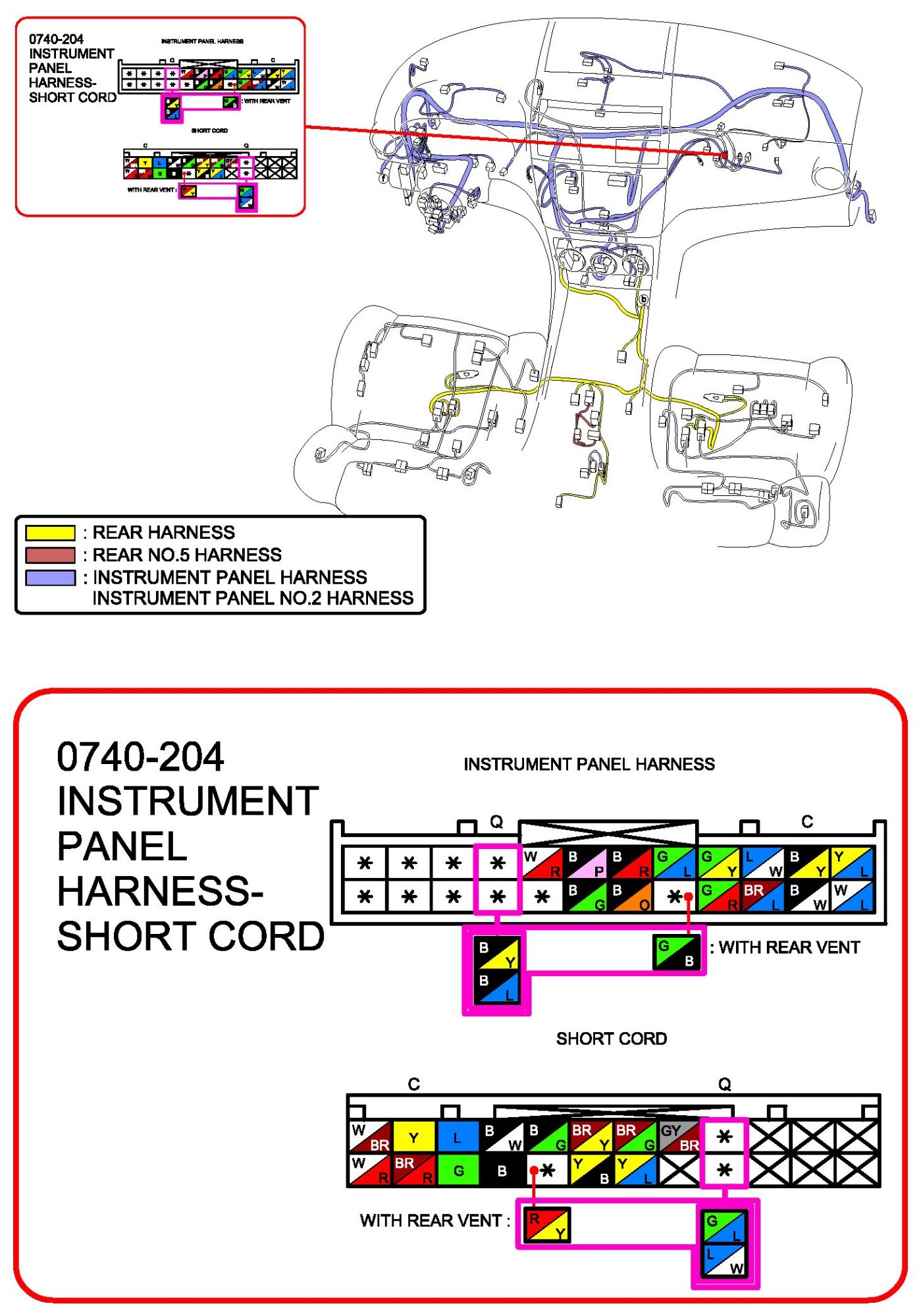

Instrumental Panel Harness-Short Cord (Auto A/C):

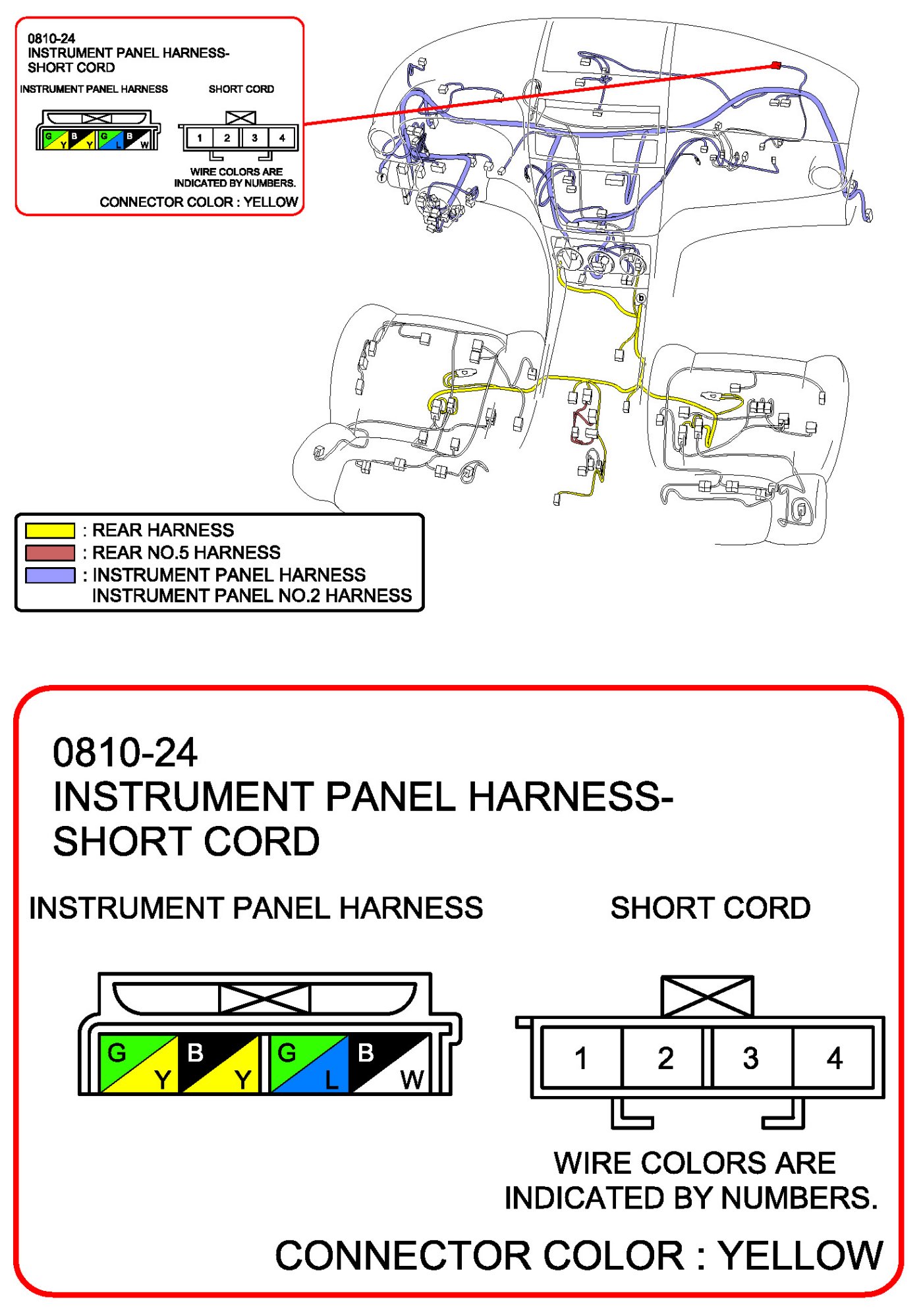

Instrumental Panel Harness-Short Cord (Air Bag System):
