Turn Signals

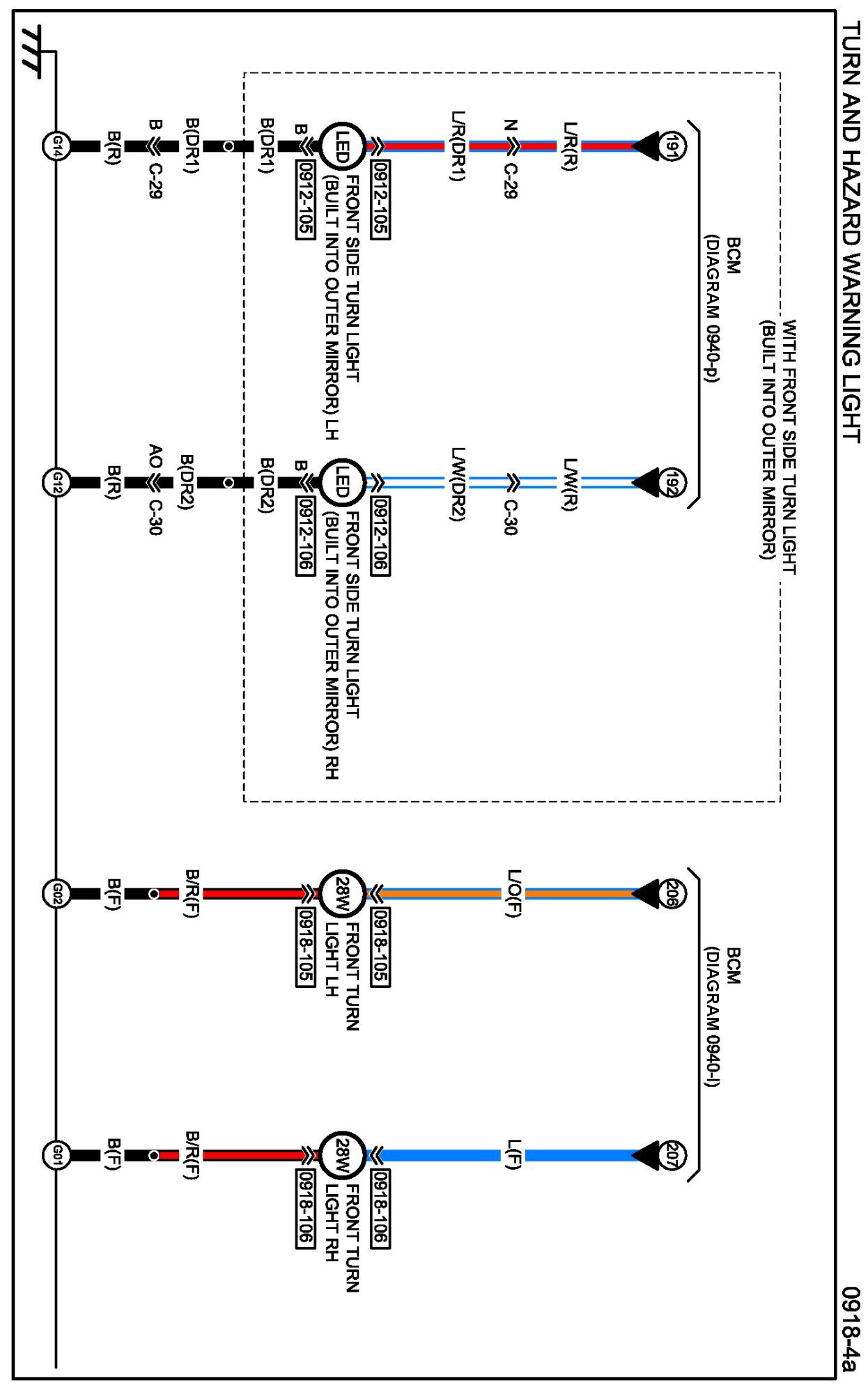

Diagram 0918-4a:

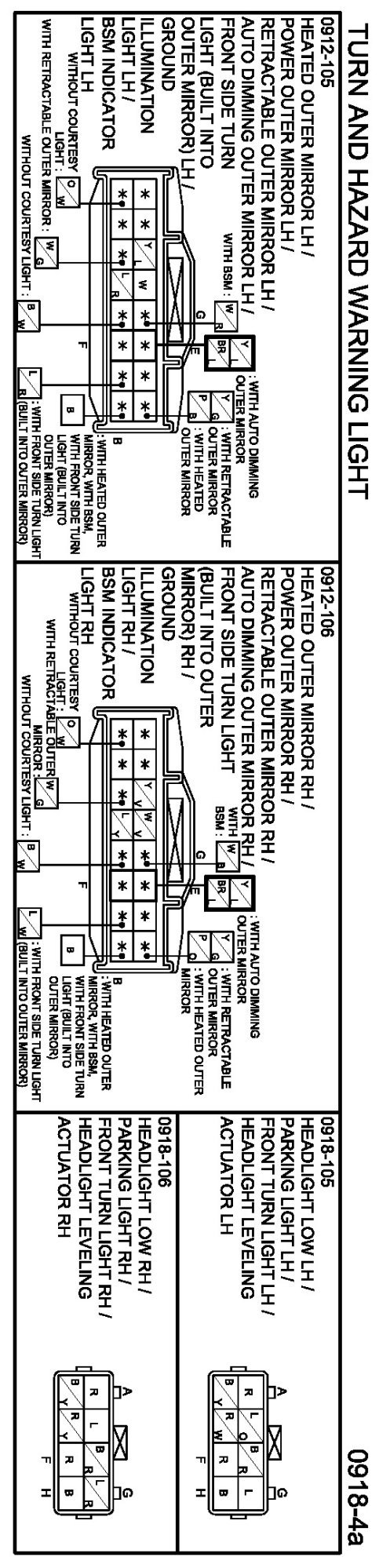

Connectors 0918-4a:

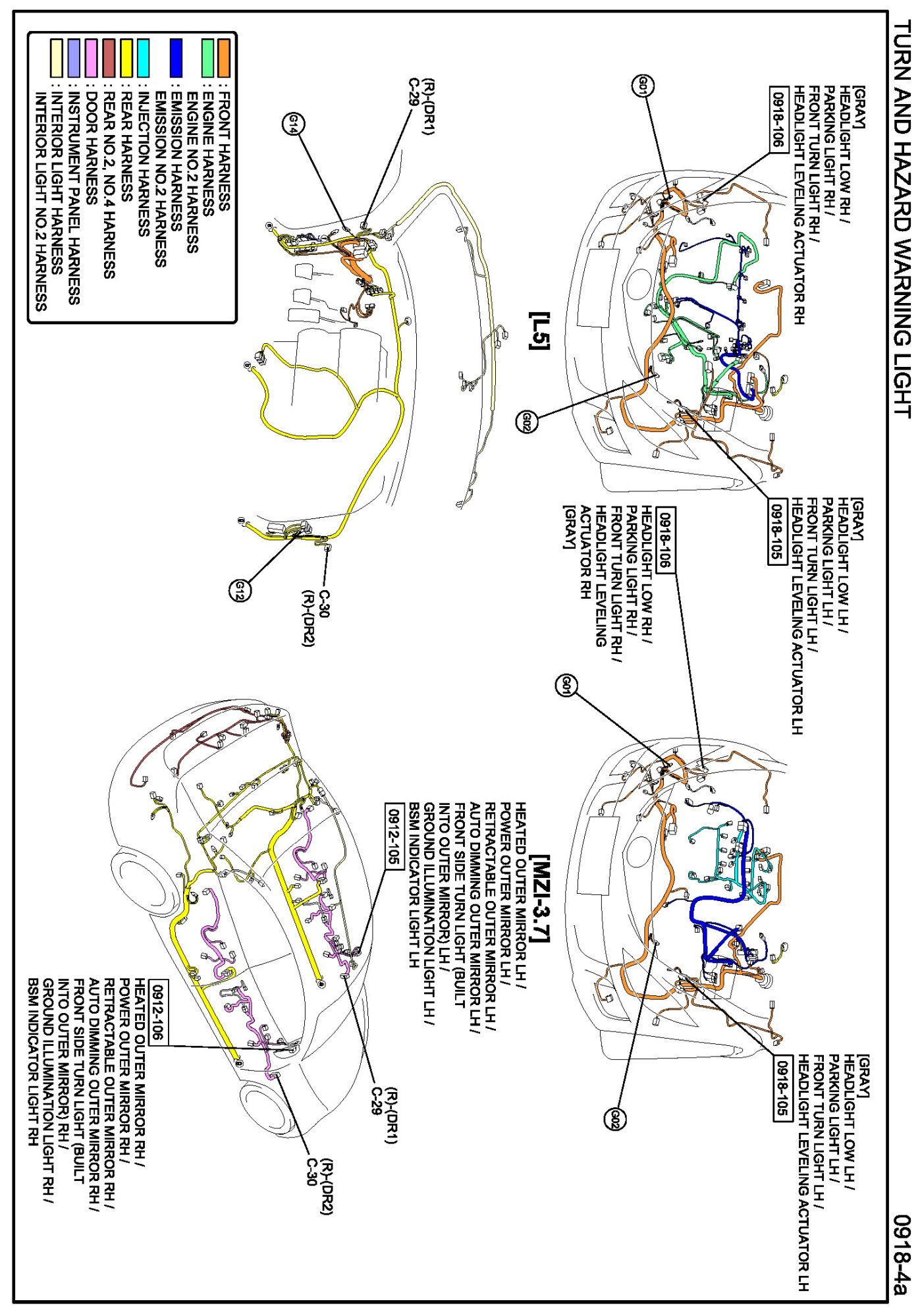

Routing View 0918-4a:

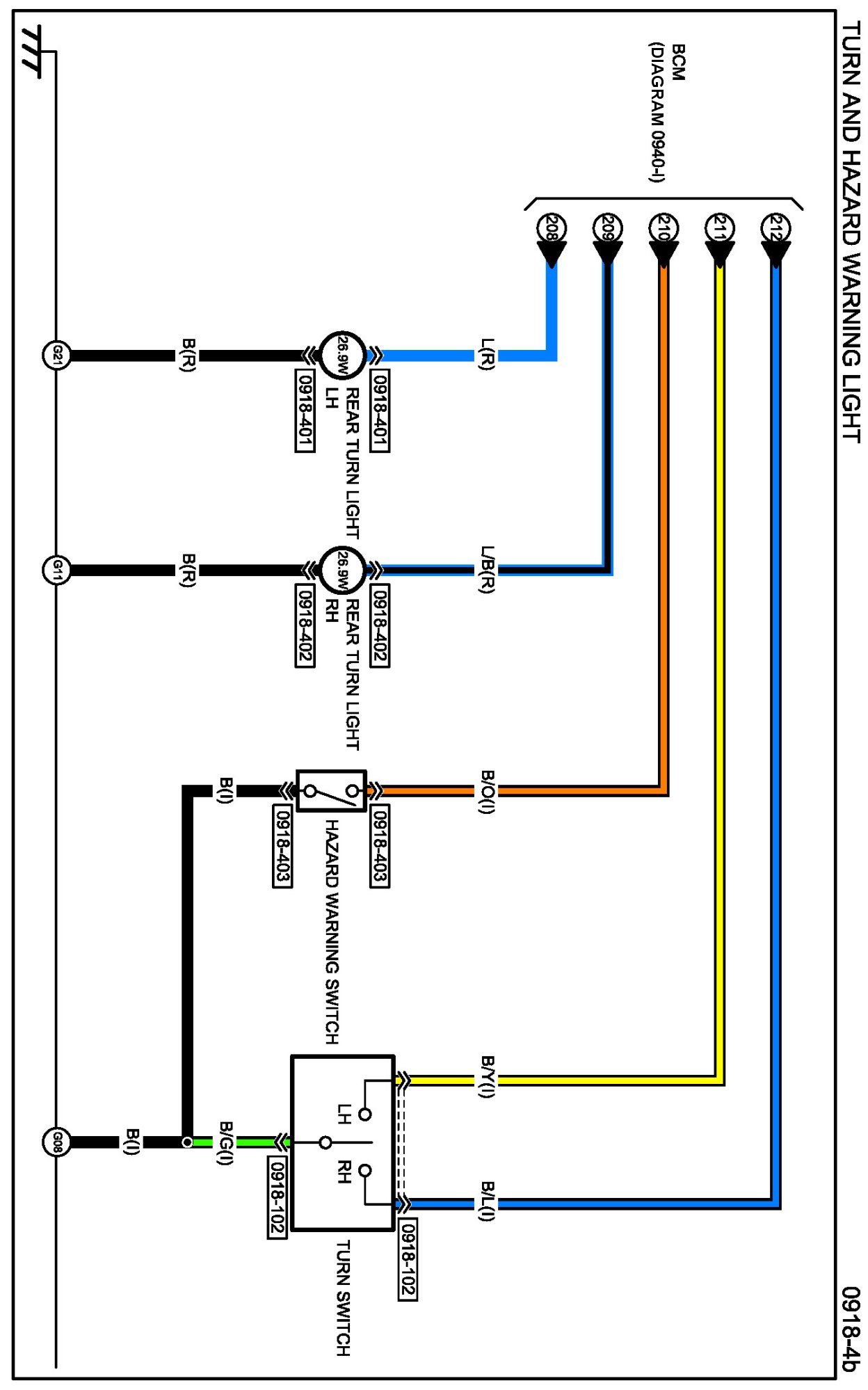

Diagram 0918-4b:

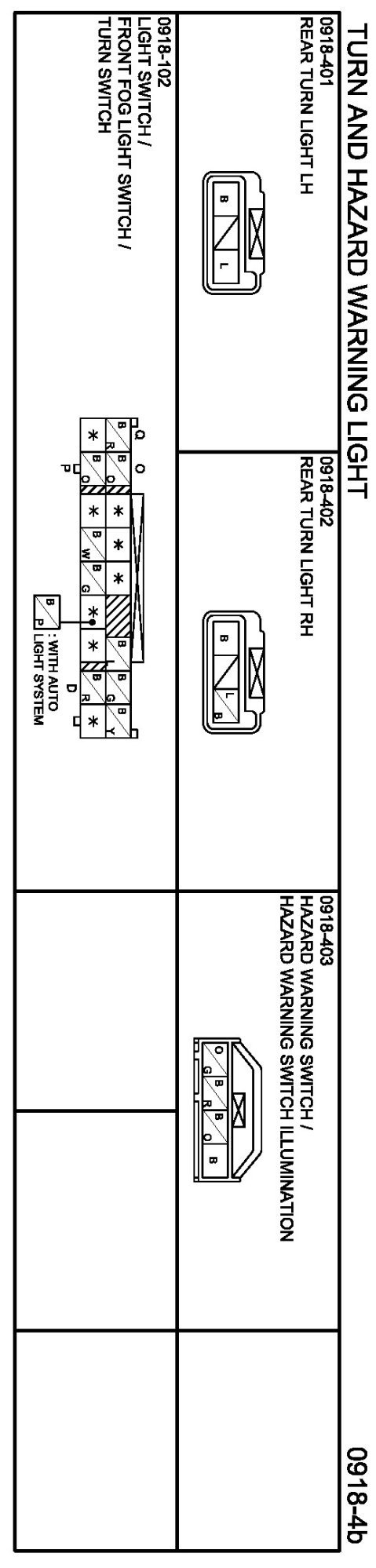

Connectors 0918-4b:

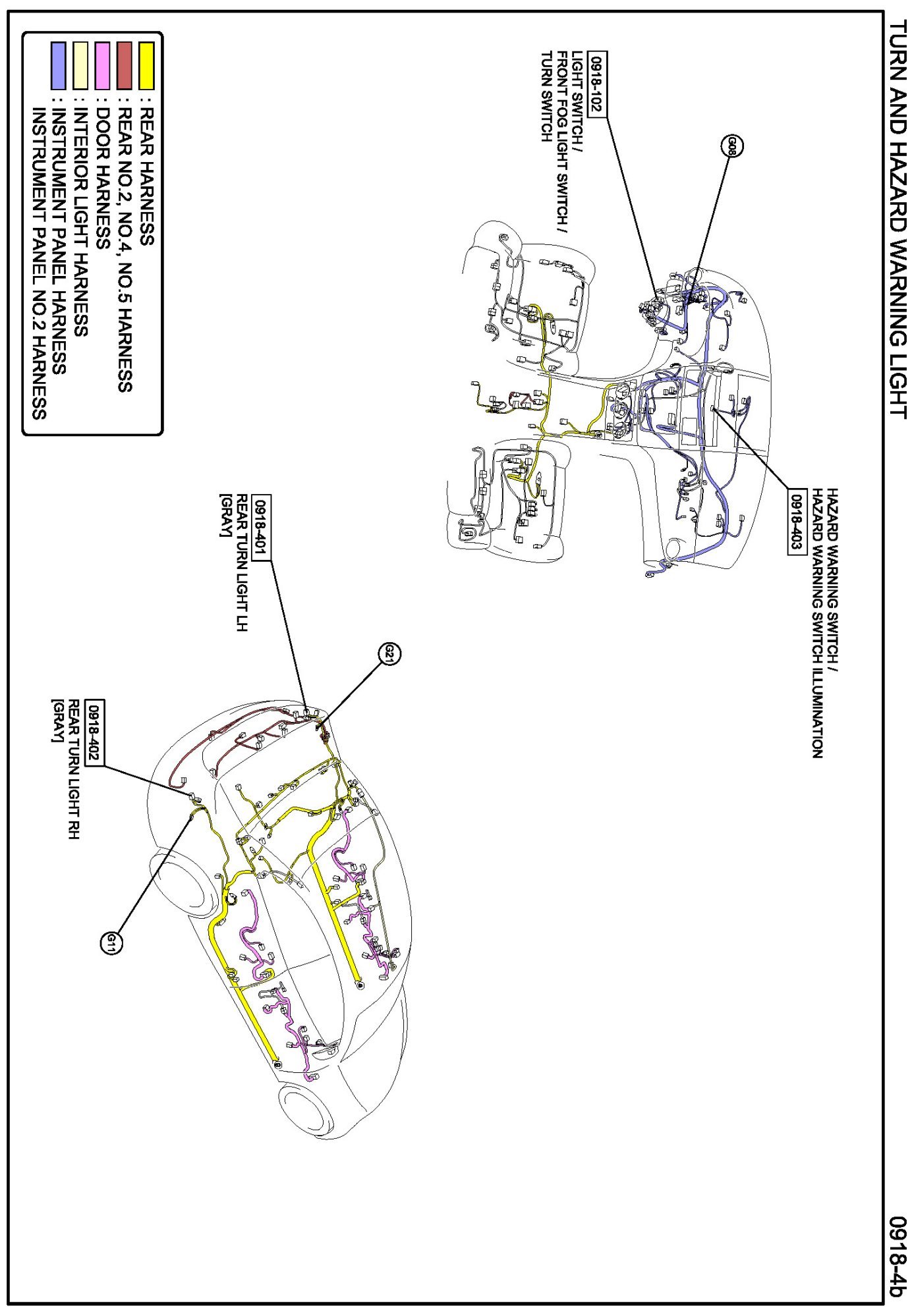

Routing View 0918-4b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
