Fog/Driving Lamp: Service and Repair

FRONT FOG LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front bumper. Front Bumper Removal/Installation

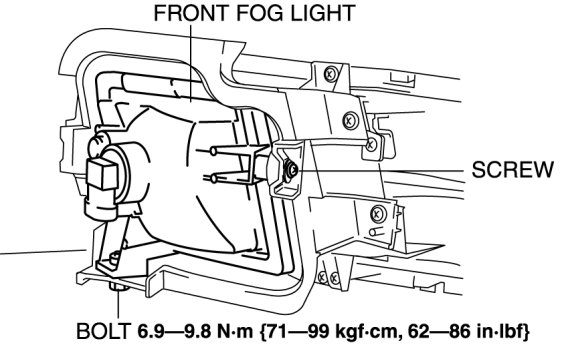

3. Remove the screw and bolt shown in the figure.

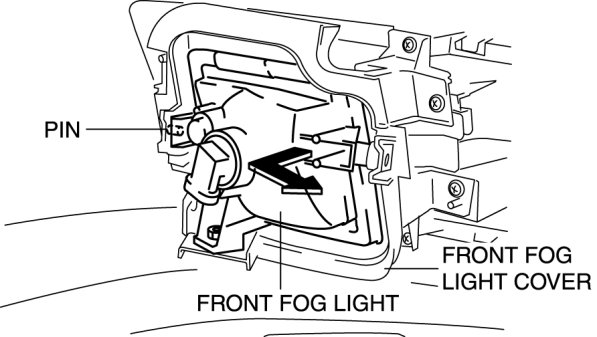

4. Pull the front fog light in the direction of the arrow shown in the figure and remove the pin from the front fog light cover.






5. Remove the front fog light.

6. Install in the reverse order of removal.

7. Adjust the front fog light aiming. Adjustments
