Shift-Lock Solenoid Inspection




SHIFT-LOCK SOLENOID INSPECTION

1. Disconnect the selector lever component connector.
a. Disconnect the negative battery cable.

b. Remove the rear console. (See Rear Console Removal/Installation.)

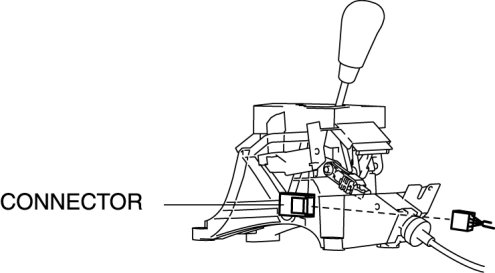

c. Disconnect the selector lever component connector.

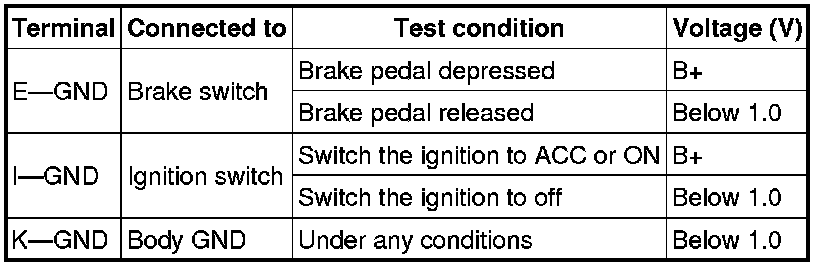

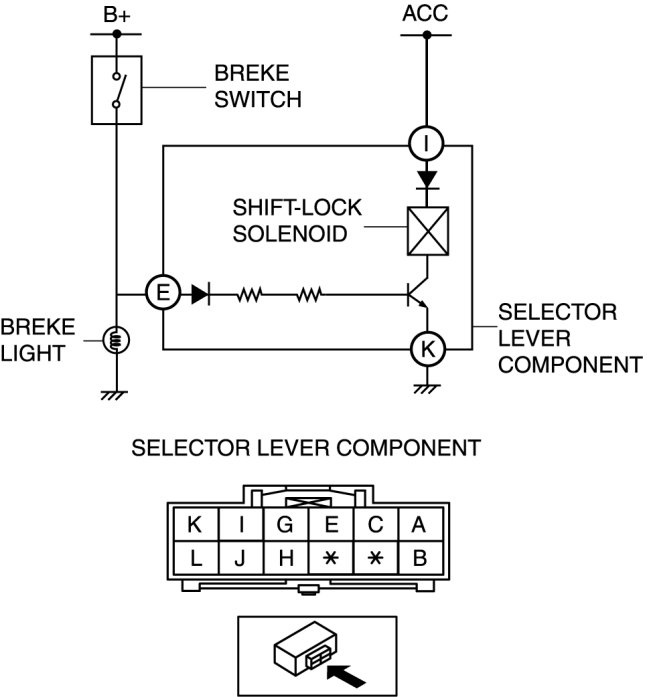

2. According to the table, measure the voltage between selector lever component terminals and body GND.






- If there is any malfunction, repair or replace the related wiring harness.
- If there is no malfunction, replace the selector lever component. Service and Repair
