Power Distribution

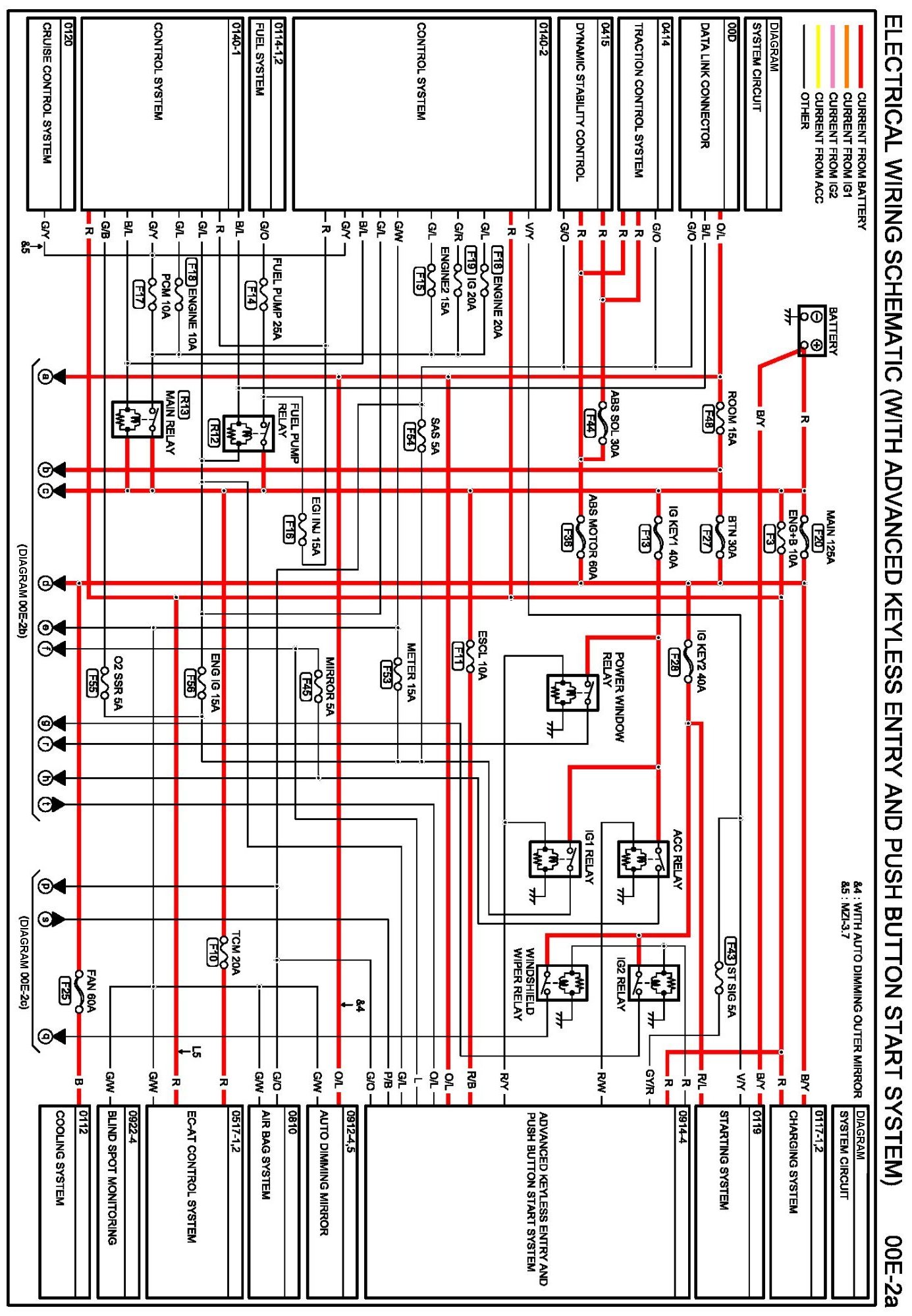

Power System (With Advanced Keyless Entry and Push Button Start System)Diagram 00E-1a:

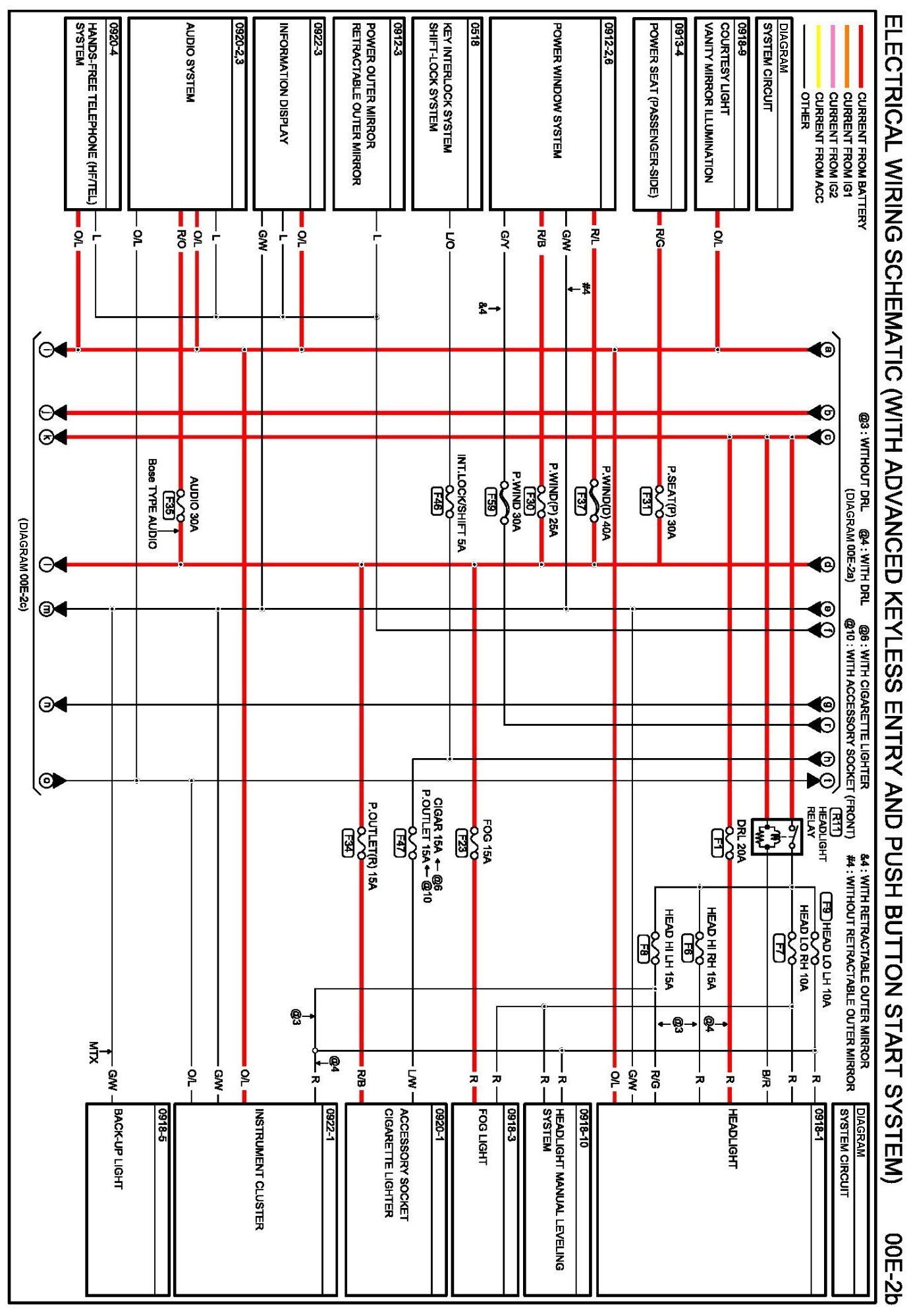

Diagram 00E-1b:

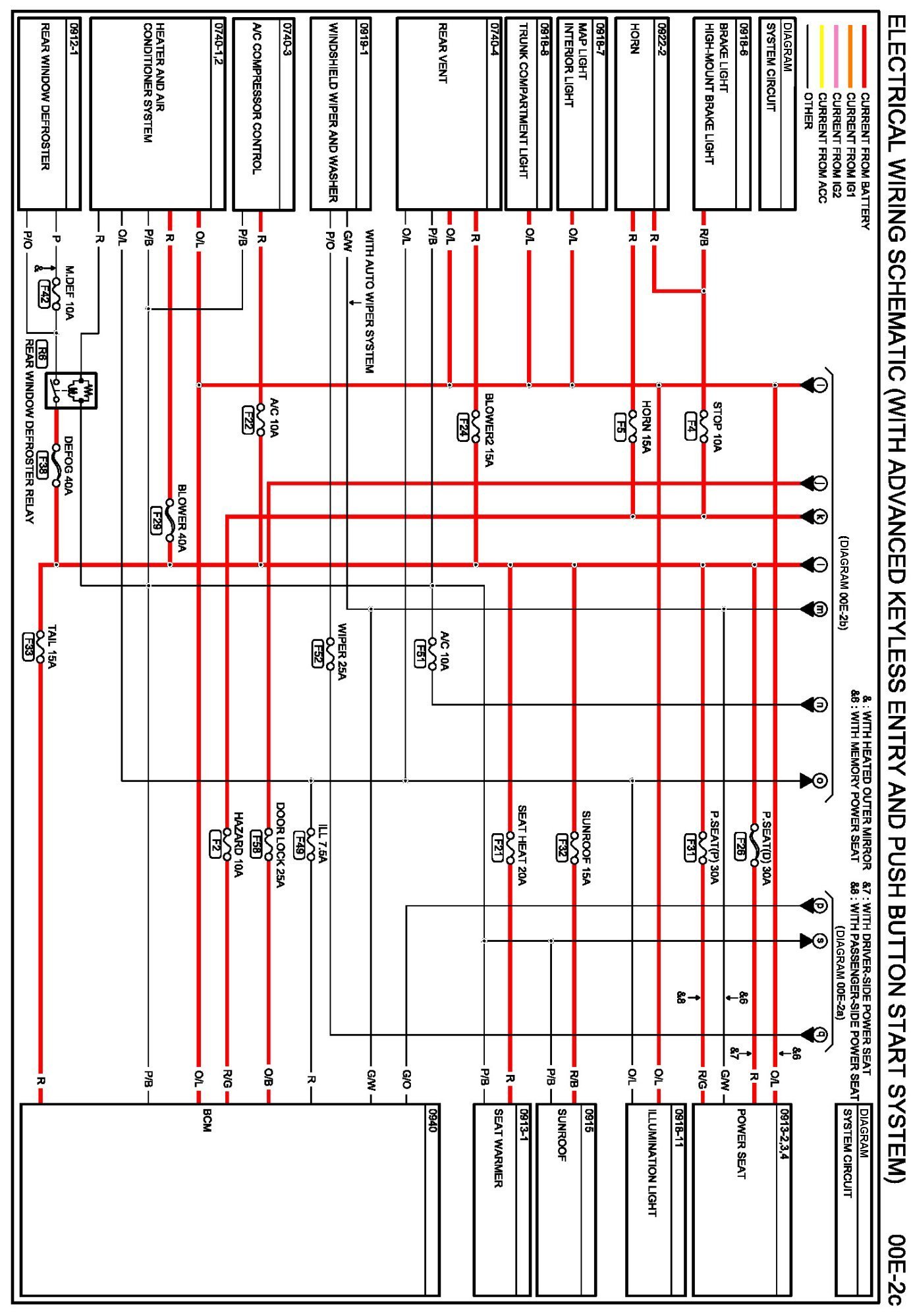

Diagram 00E-1c:
Power System (Without Advanced Keyless Entry and Push Button Start System)

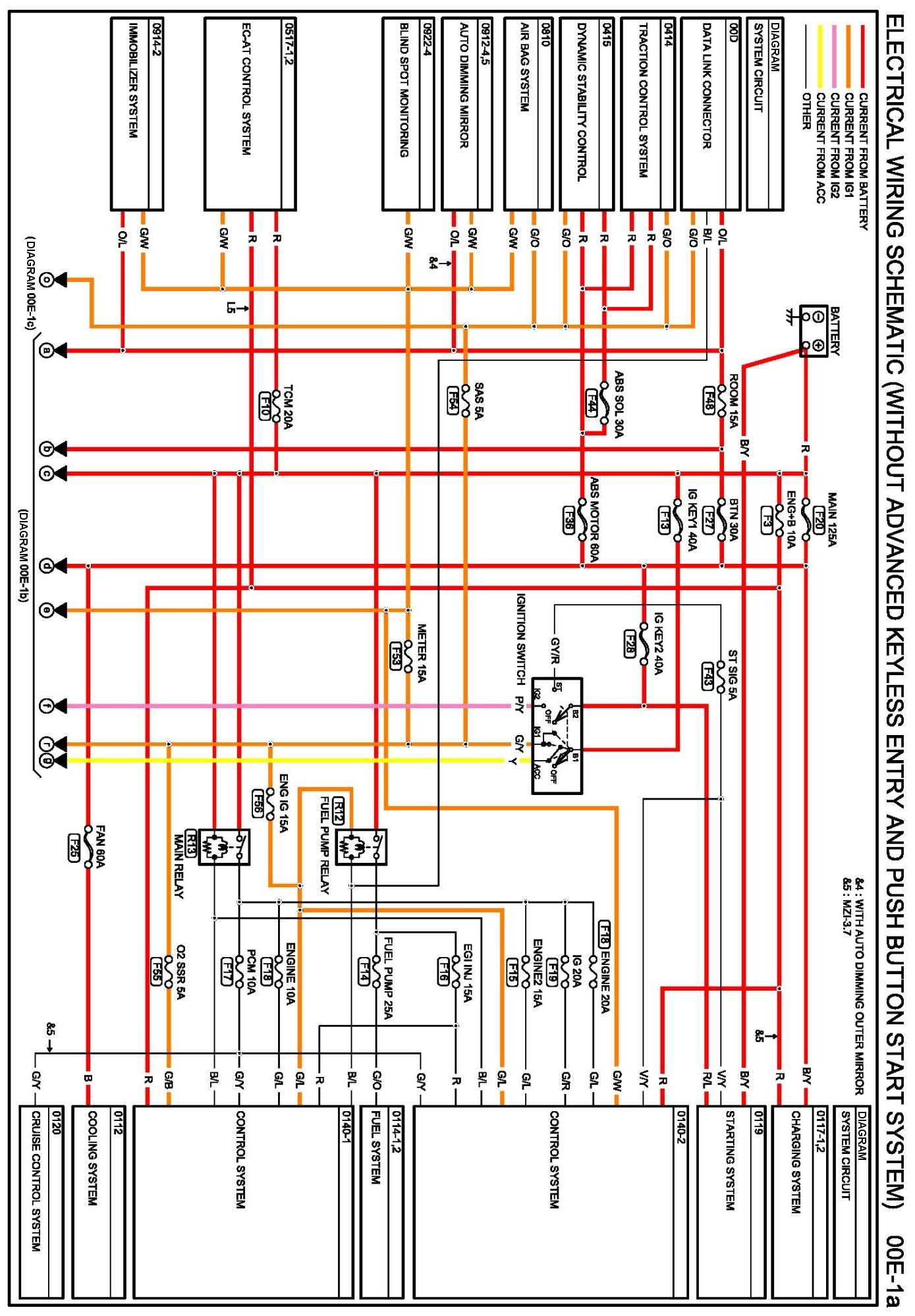

Diagram 00E-2a:

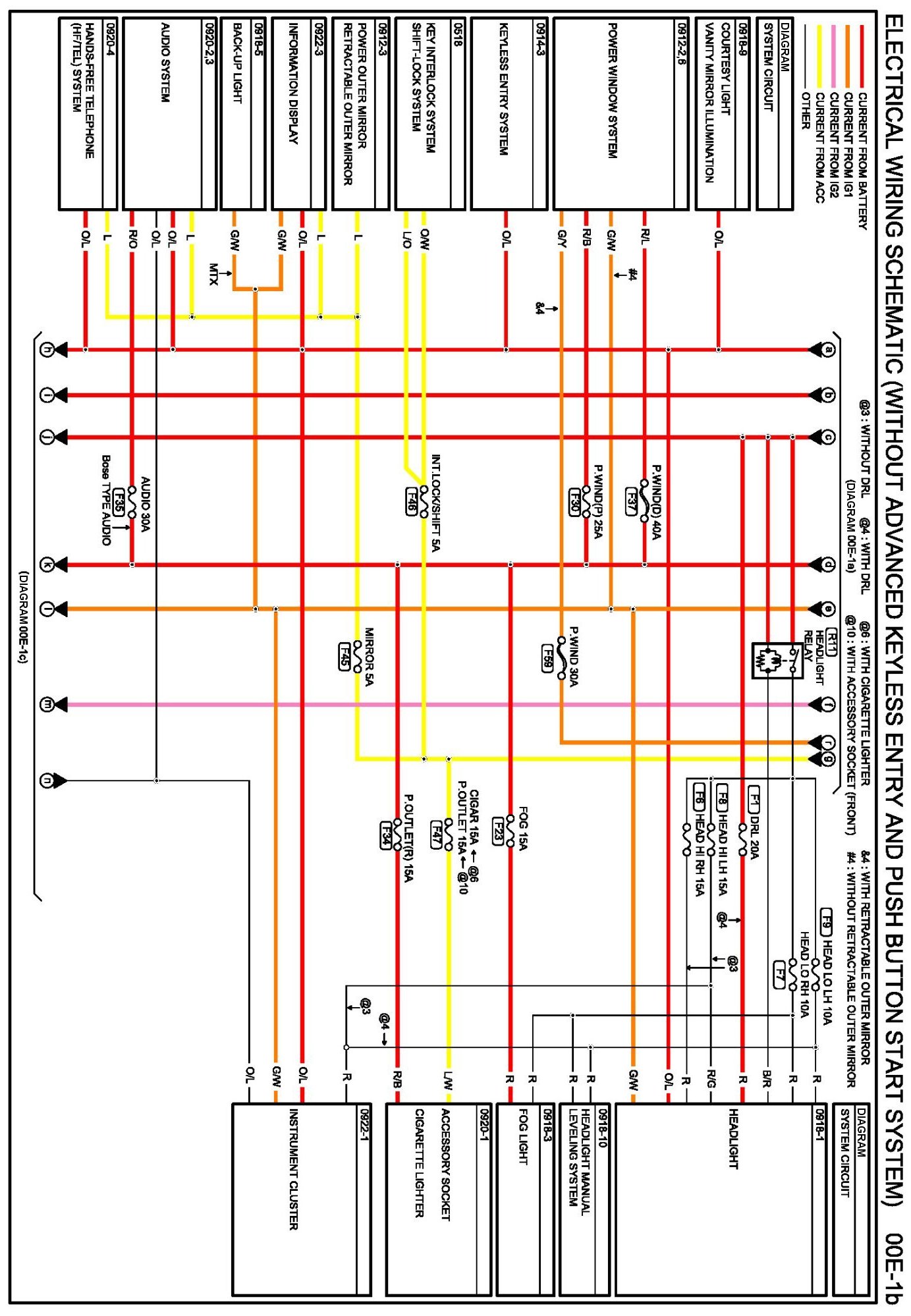

Diagram 00E-2b:

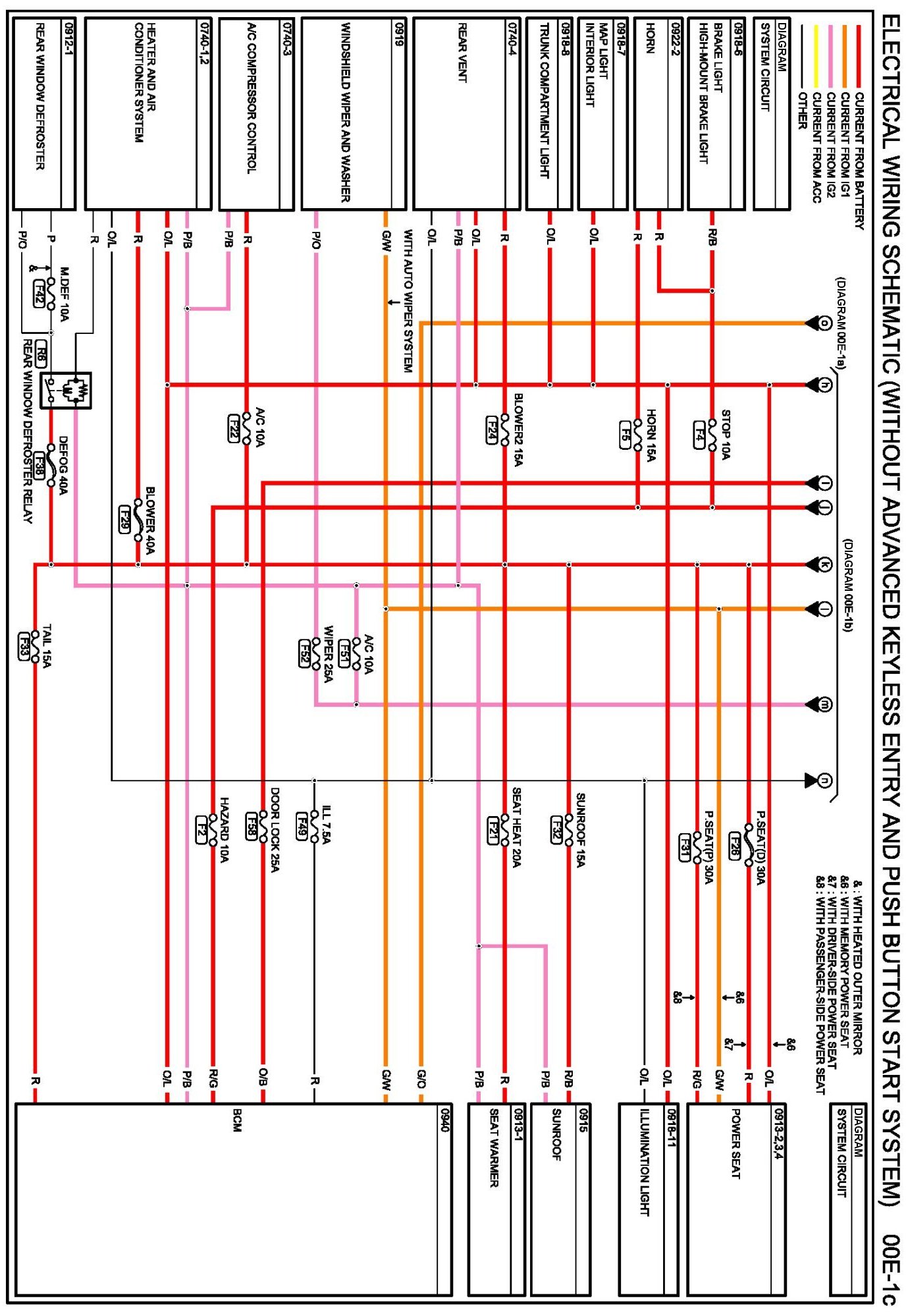

Diagram 00E-2c:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
